P8-4040-1N

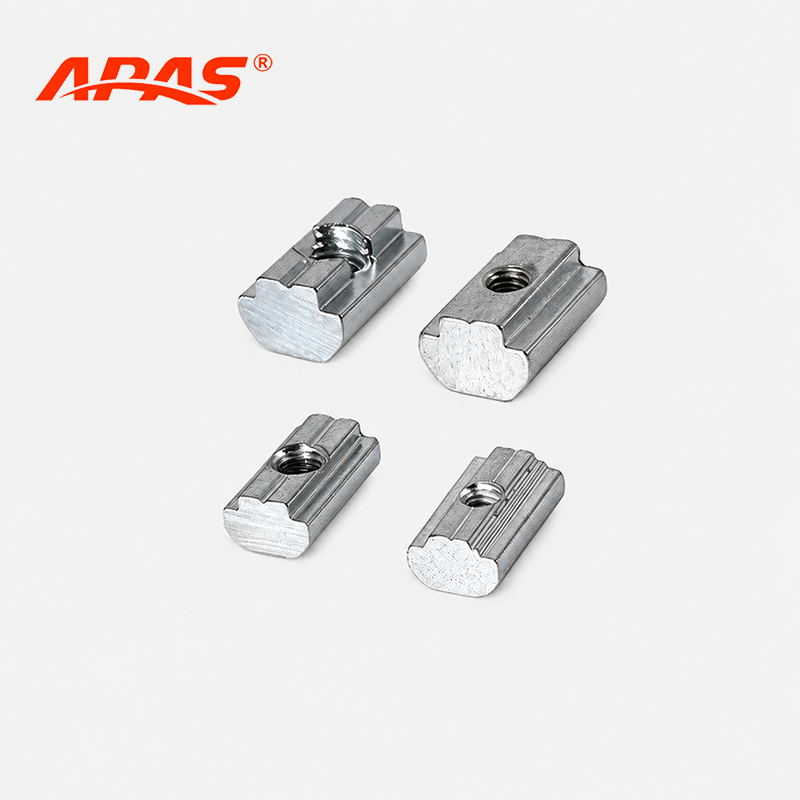

T-Slot Square Nut is designed for industrial aluminum extrusion profiles and is widely used in automation equipment, machine frames, workbenches, and safety guarding systems.
Manufactured from high-strength carbon steel with galvanized or nickel-plated finishes, it provides excellent corrosion resistance and long-lasting durability. Compatible with 6mm, 8mm, and 10mm T-slot aluminum profiles, it is available in M4–M8 thread sizes to meet various modular assembly requirements.

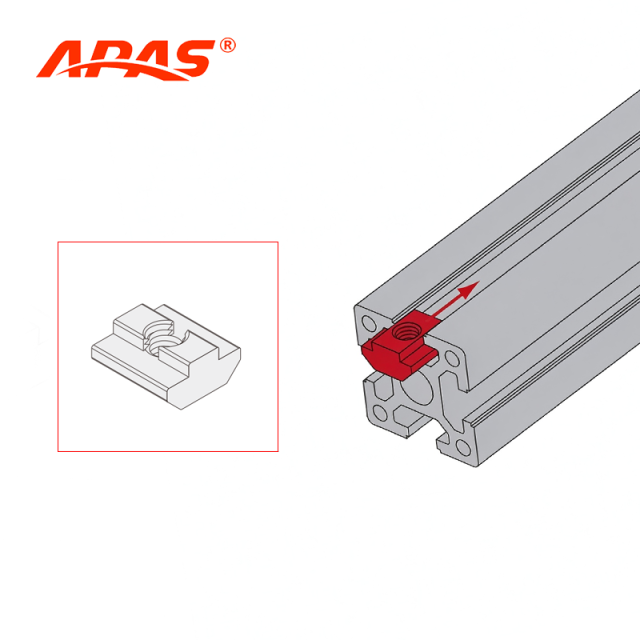

The square design provides a larger contact area for secure fastening and improved vibration resistance. It allows flexible positioning within the profile slot and ensures quick, stable assembly with socket head cap screws.
Standard Specifications
| series | Cell type | Screw thread | Material | Number of order |
|---|---|---|---|---|
| P6-20 | P6 | M4 | Carbon steel (galvanized or nickel-plated) | CE-SN4-6-20 |
| P6-20 | P6 | M5 | Carbon steel (galvanized or nickel-plated) | CE-SN5-6-20 |
| P8-30 | P8 | M4 | Carbon steel (galvanized or nickel-plated) | CE-SN4-8-30 |
| P8-30 | P8 | M5 | Carbon steel (galvanized or nickel-plated) | CE-SN5-8-30 |
| P8-30 | P8 | M6 | Carbon steel (galvanized or nickel-plated) | CE-SN6-8-30 |
| P6-30 | P8 | M8 | Carbon steel (galvanized or nickel-plated) | CE-SN8-8-30 |
| P8-40 | P8 | M5 | Carbon steel (galvanized or nickel-plated) | CE-SN5-8-40 |
| P8-40 | P8 | M6 | Carbon steel (galvanized or nickel-plated) | CE-SN6-8-40 |
| P8-40 | P8 | M8 | Carbon steel (galvanized or nickel-plated) | CE-SN8-8-40 |
| P10-45 | P10 | M5 | Carbon steel (galvanized or nickel-plated) | CE-SN5-10-45 |
| P10-45 | P10 | M6 | Carbon steel (galvanized or nickel-plated) | CE-SN6-10-45 |
| P10-45 | P10 | M8 | Carbon steel (galvanized or nickel-plated) | CE-SN8-10-45 |
| P8-50 | P8 | M5 | Carbon steel (galvanized or nickel-plated) | CE-SN5-8-40 |
| P8-50 | P8 | M6 | Carbon steel (galvanized or nickel-plated) | CE-SN6-8-40 |
| P8-50 | P8 | M8 | Carbon steel (galvanized or nickel-plated) | CE-SN8-8-40 |
Customization
Note: In addition to the standard stock above, other European standard sizes such as M3 and M10 are also available upon request. Welcome to send an inquiry.
