Aluminum Lean Tube System
Modular 6063-T5 aluminum components designed for rapid, weld-free assembly. Build and reconfigure heavy-duty production lines, ergonomic workbenches, and storage racks using direct mechanical fastening.
Customize Your Solution →Material Evolution
Why Choose Aluminum Lean Tube Systems?
1st Generation
Plastic-Coated Steel Tube
- Heavy structure requiring more installation labor
- Coating may wear or corrode over time
- Limited load capacity for demanding applications
- Less efficient for frequent layout changes
2nd Generation
Stainless Steel Tube
- Better corrosion resistance
- Higher material cost
- External clamp fastening required
- Heavier than aluminum systems
Recommended standard
3rd Generation
Aluminum Alloy 6063-T5
- Significantly lighter than carbon steel
- Natural color anodized E6/EV1, layer thickness 10–15 μm
- Precision M6 mechanical locking
- Fully modular and reusable
Technical Specifications
Engineered for Industrial Assembly

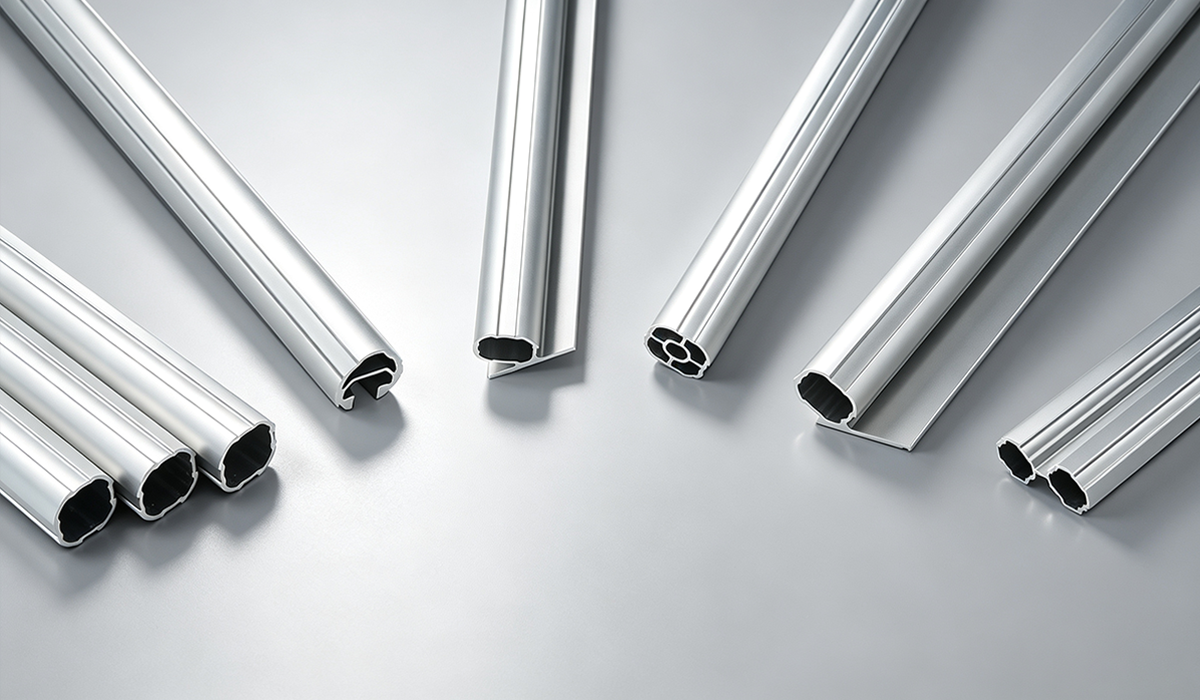

1 Premium 6063-T5 Alloy
Built for structural performance in industrial settings. Delivers robust load-bearing capability at just one-third the weight of steel — cutting logistics, handling, and installation costs across the board.
- Finish: 10–15 μm anodized coating with sealed surface
- Corrosion Resistance: Validated by 500+ h of neutral salt spray testing
- Cleanroom Compatible: Smooth, low-particle surface with excellent scratch resistance

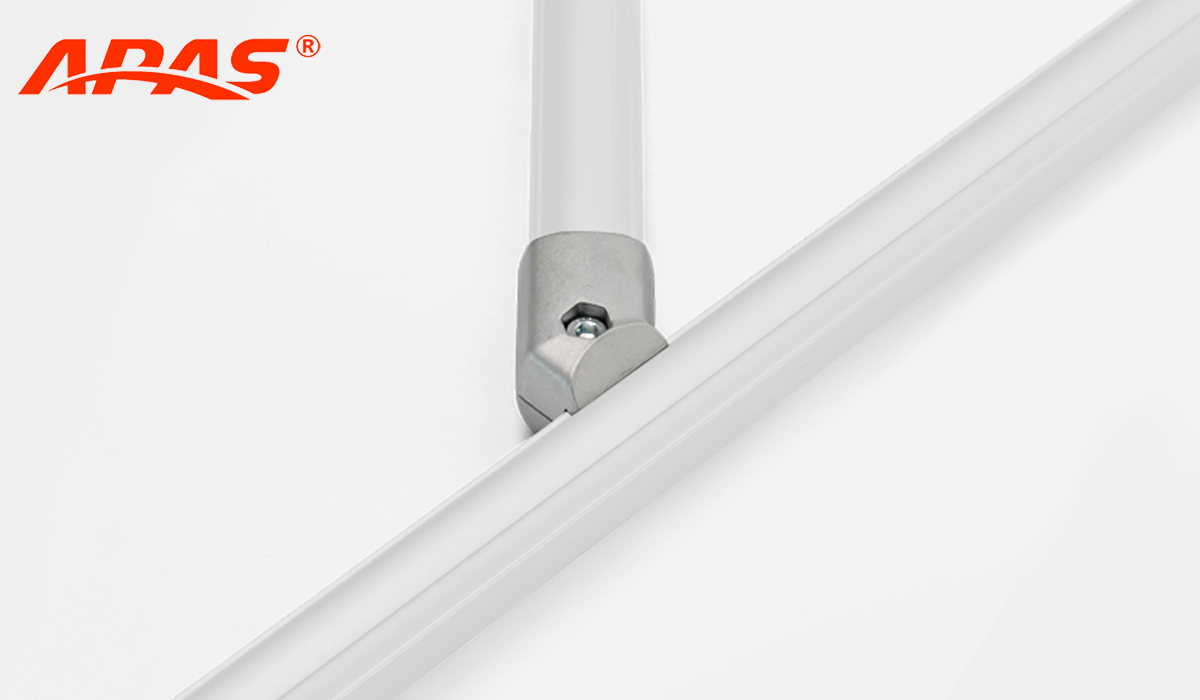

2 Direct Mechanical Locking
No hot work permits or welding required. Our aluminum clamp connectors lock onto tubes via precision M6 bolts, delivering slip-proof, anti-rotation fastening for guaranteed heavy-duty structural rigidity.
- Rapid Assembly: Secure connections using only an Allen wrench.
- Anti-Rotation Design: Engineered to prevent slippage and loosening under vibration.
- Zero Asset Waste: 100% reversible setup when operational layouts change.

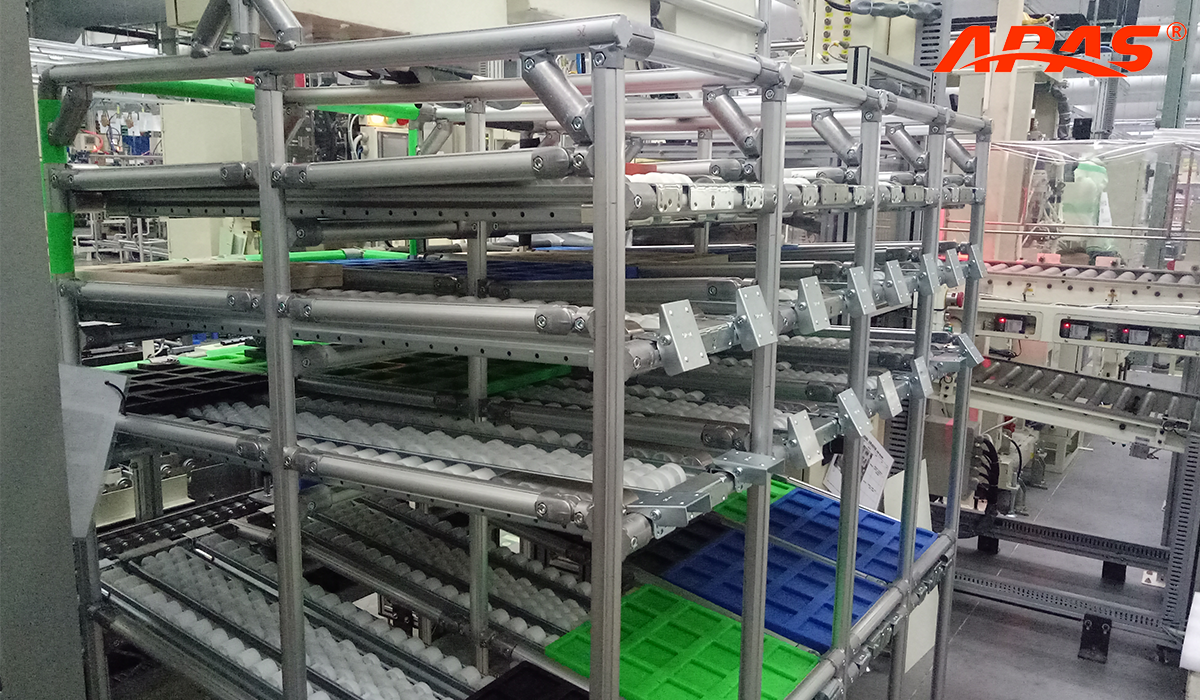

3 Clamp-On Modular Assembly
Scale and adapt workstations instantly. External clamp connectors let you mount industrial accessories anywhere along the tube — no drilling, no disassembly required.
- Modular Integration: Mount LED fixtures, monitors, and pneumatic tools directly.
- Automation Ready: Seamless compatibility with roller tracks and linear guide systems.
- High Rigidity: Solid structural support for high-frequency automated workflows.
Application Scenarios
Proven in Factory Environments

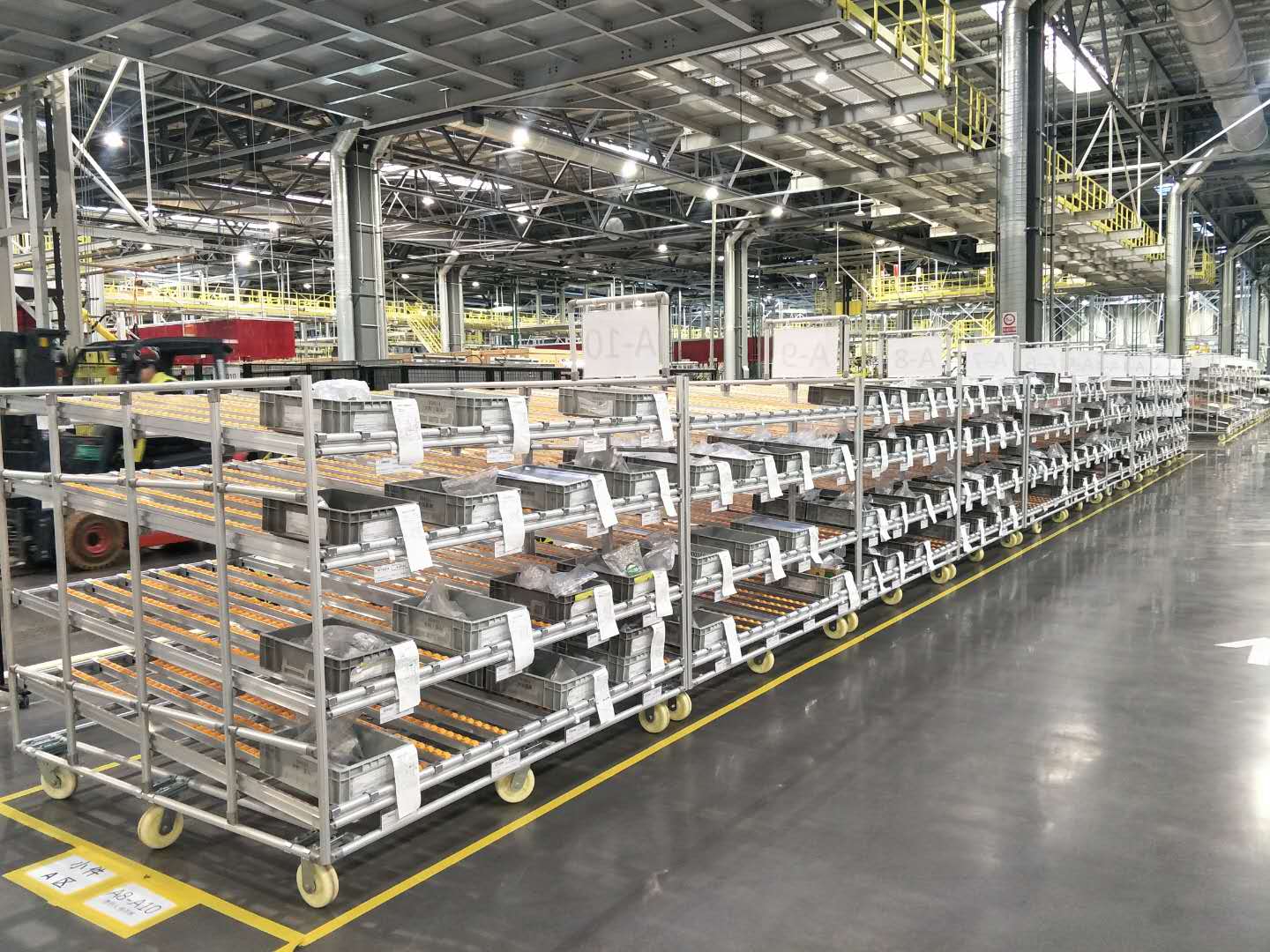

Flow Rack Cart

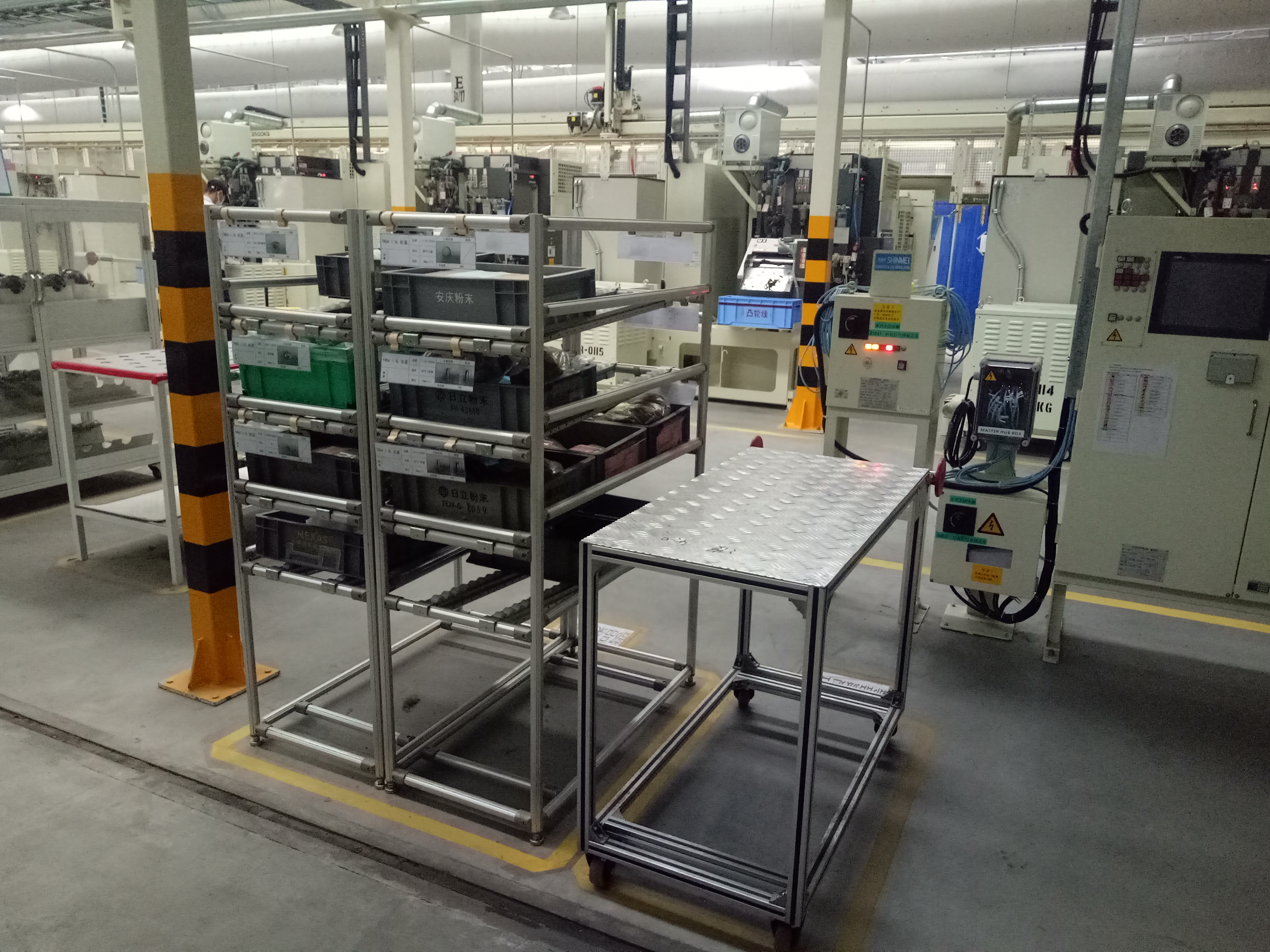

Line Side Flow Rack

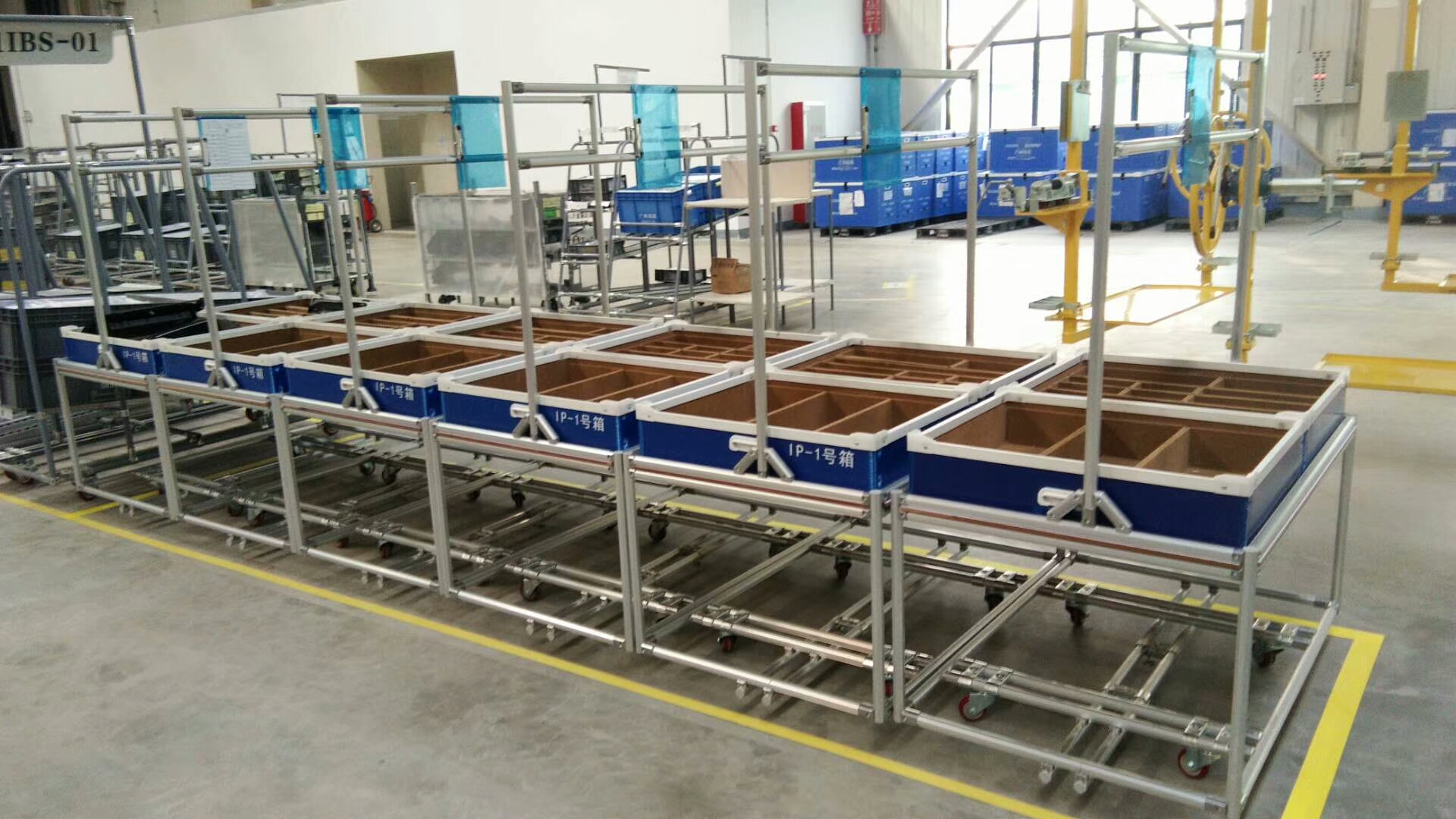

Material Cart

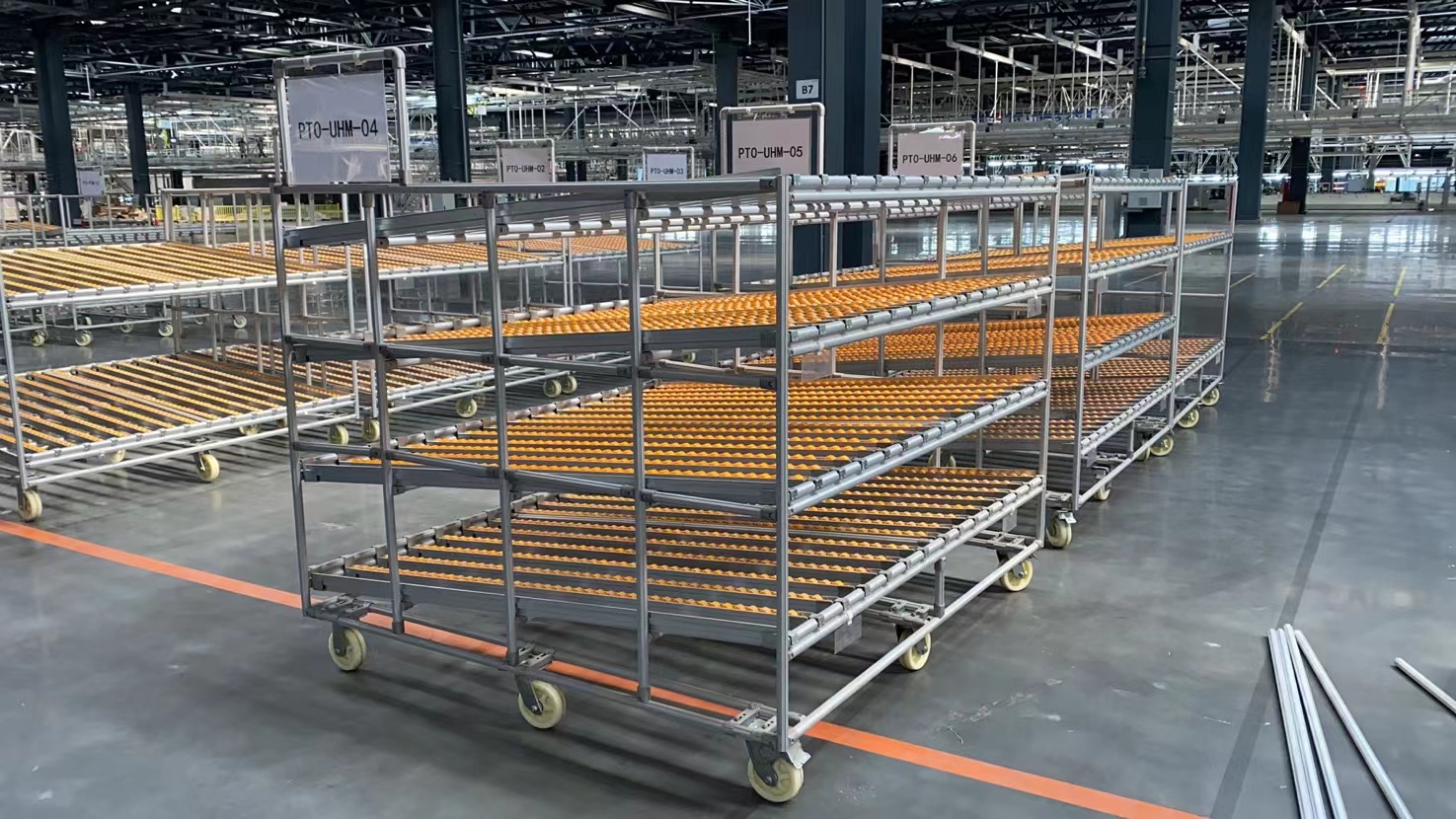

Mobile Flow Rack
Procurement Workflow
From Blueprint to Factory Floor
01
Submit Specs
Share your sketches, reference photos, or CAD files for initial review.
02
3D Visualization
Our engineers provide precise 3D models to confirm structural dimensions.
03
BOM Quotation
Receive a clear, factory-direct quote based on the final bill of materials.
04
Delivery & Build
Components arrive pre-cut, ready for rapid on-site wrench assembly.
