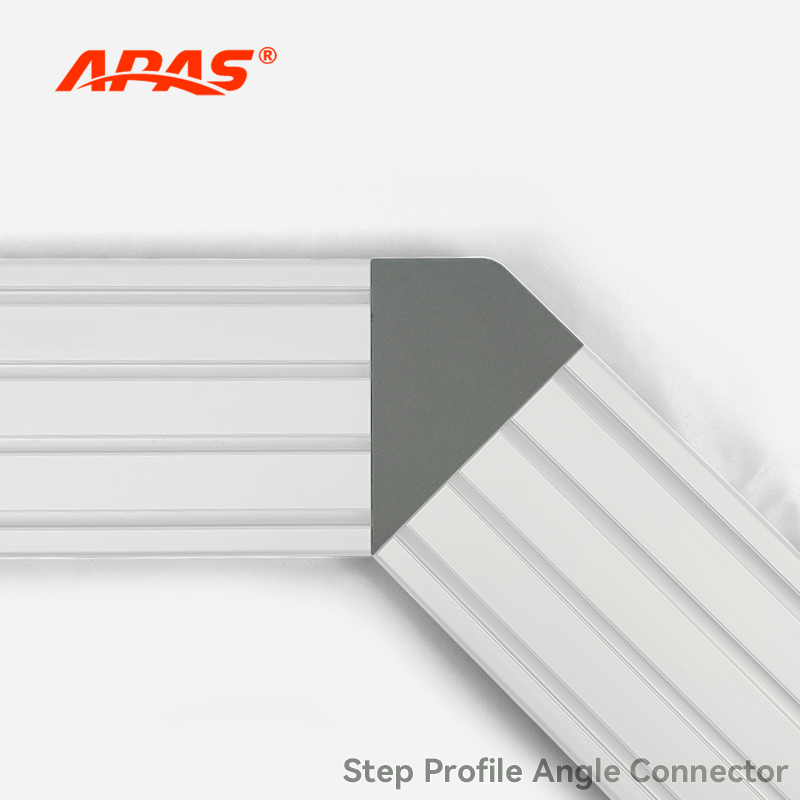

Used for 45° connection between profiles at the bottom starting section of the sloped stairway, and 135° connection between the top sloped profile and the platform, respectively
Designed for 6063-T5 φ40 aluminum tubes connection

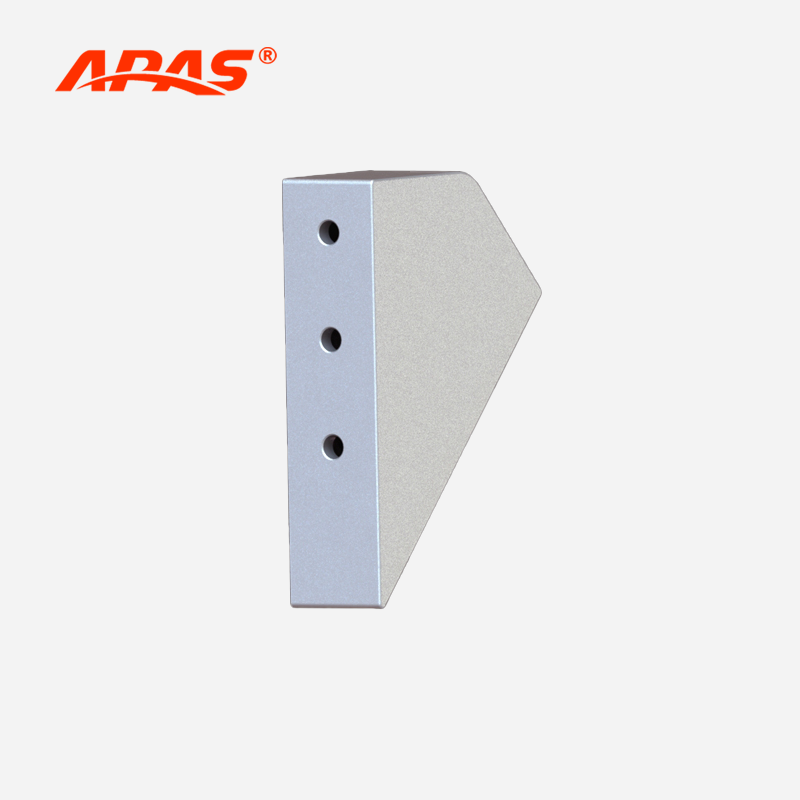

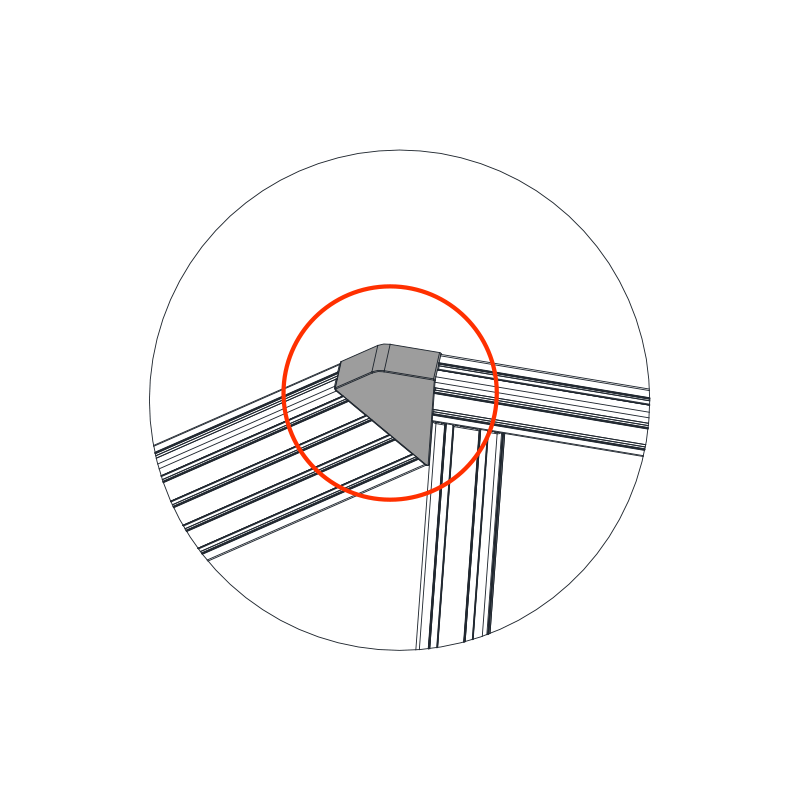

The step profile angle connector is a component specifically designed for stairway platform system, It's respectively used for 45° connection between profiles at the bottom starting section of the sloped stair, and 135° connection between the top sloped profile and the platform. The step profile angle connector connects step tread profiles and side plate with T-nuts and screws, which enable quick and secure assembly, ensuring the overall stability and safety of the structure. This diagram illustrates how to connect step profiles with this connector.
