P8-4040-1N

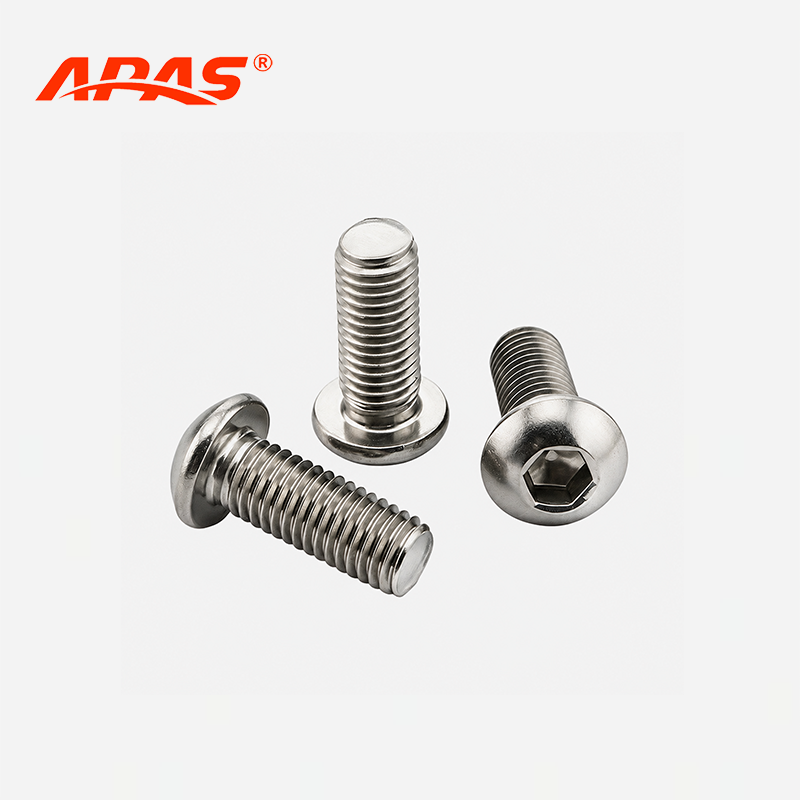

Socket button head cap screws are designed for secure internal connections in modular aluminum profile systems. Combined with drilled and tapped profiles, they provide strong, clean, and reliable fastening solutions for industrial frames and automation structures.

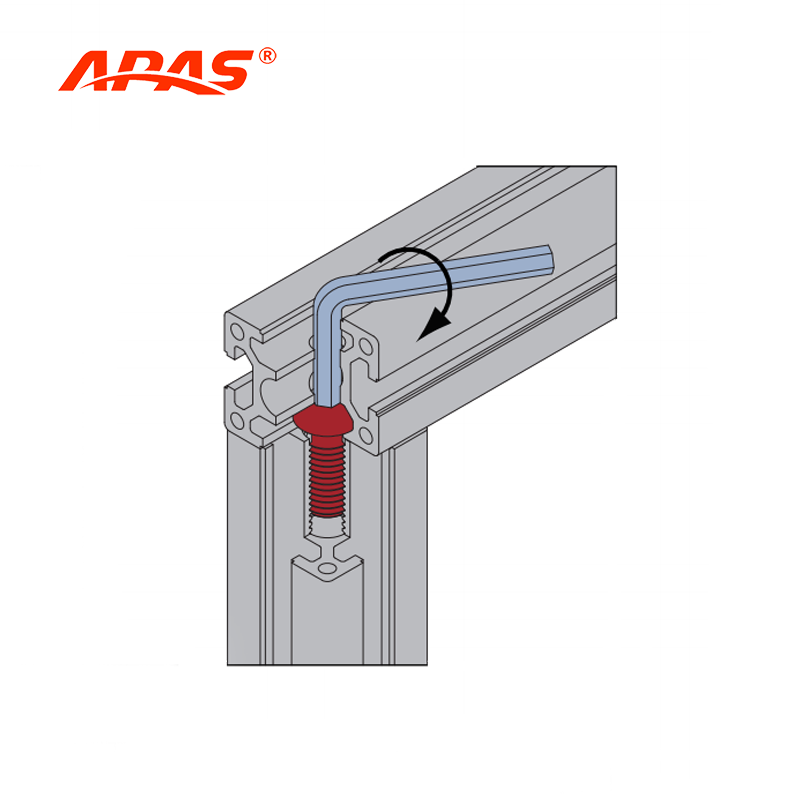

Socket button head screws are installed through drilled and tapped holes for internal profile connections, creating a clean appearance and stable mechanical joint.

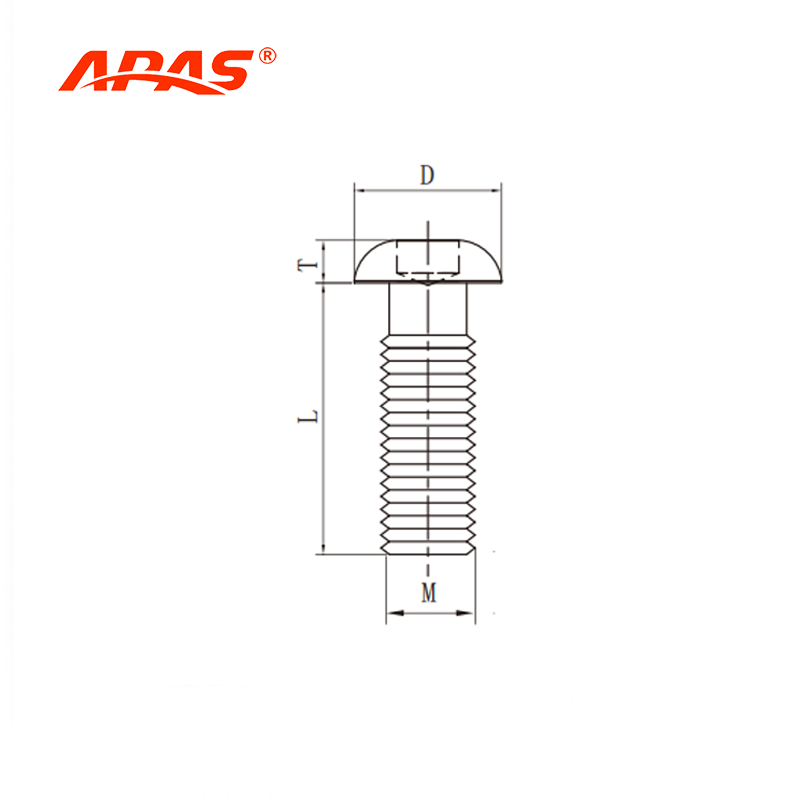

Technical Specifications

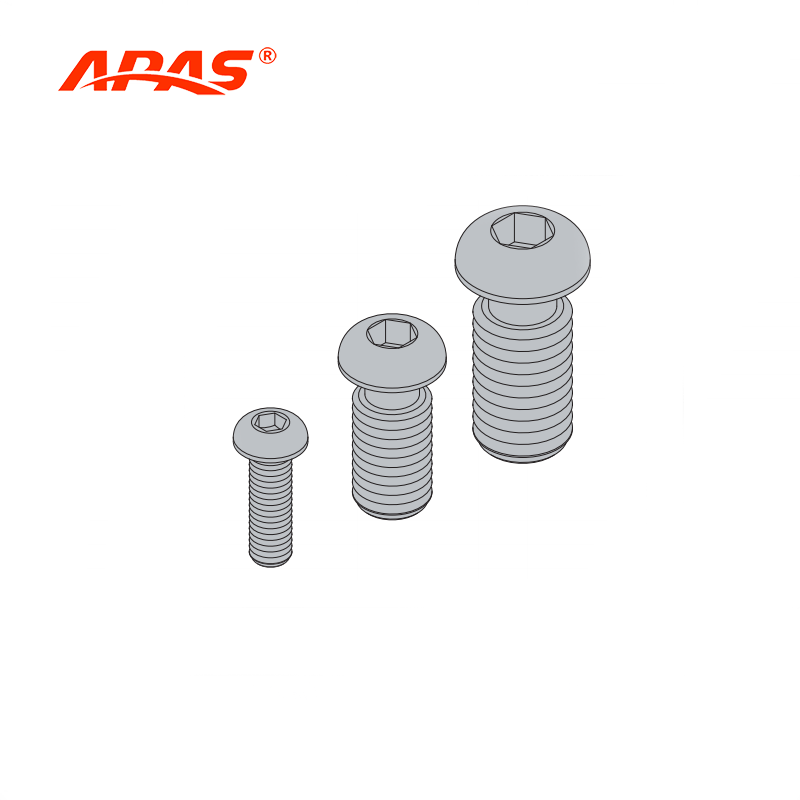

| Name | Screw thread | L (mm) | D (mm) | T (mm) | Material | Number of order |
|---|---|---|---|---|---|---|
| Socket Button Head Cap Screw | M6 | 10 | φ10.5 | 4 | Galvanized carbon steel or stainless steel | CE-JB6x10 |
| Socket Button Head Cap Screw | M6 | 14 | φ10.5 | 4 | Galvanized carbon steel or stainless steel | CE-JB6x14 |
| Socket Button Head Cap Screw | M6 | 16 | φ10.5 | 4 | Galvanized carbon steel or stainless steel | CE-JB6x16 |
| Socket Button Head Cap Screw | M6 | 20 | φ10.5 | 4 | Galvanized carbon steel or stainless steel | CE-JB6x20 |
| Socket Button Head Cap Screw | M6 | 30 | φ10.5 | 4 | Galvanized carbon steel or stainless steel | CE-JB6x30 |
| Socket Button Head Cap Screw | M8 | 12 | φ14 | 5.5 | Galvanized carbon steel or stainless steel | CE-JB8x12 |
| Socket Button Head Cap Screw | M8 | 16 | φ14 | 5.5 | Galvanized carbon steel or stainless steel | CE-JB8x16 |
| Socket Button Head Cap Screw | M8 | 18 | φ14 | 5.5 | Galvanized carbon steel or stainless steel | CE-JB8x18 |
| Socket Button Head Cap Screw | M8 | 20 | φ14 | 5.5 | Galvanized carbon steel or stainless steel | CE-JB8x20 |
| Socket Button Head Cap Screw | M8 | 25 | φ14 | 5.5 | Galvanized carbon steel or stainless steel | CE-JB8x25 |
| Socket Button Head Cap Screw | M8 | 30 | φ14 | 5.5 | Galvanized carbon steel or stainless steel | CE-JB8x30 |
| Socket Button Head Cap Screw | M12 | 30 | φ19 | 6 | Galvanized carbon steel or stainless steel | CE-JB12x30 |
| Socket Button Head Cap Screw | M14 | 30 | φ20 | 6 | Galvanized carbon steel or stainless steel | CE-JB14x30 |
