Profile Barrel Hinge

No.APAS.D28.JT.HY
  • Standardized locking groove design compatible with standard lean pipes
  • Secured with screws and nuts, offering easy disassembly and high reusability
  • Constructed from lightweight, corrosion-resistant aluminum alloy for durability.
  • The hinge used for the door leaf is divided into one set on the left and one set on the right. For ease of use, the supporting product is commonly used for opening on the left or right side;
No.
APAS.D28.JT.HY
Material
Aluminum Alloy + PP + Stainless Steel
Weight
166 g
Applicable Tube
28 mm Lean Tube
Manufacturing Process
Die-casting, Injection Molding, Assembly
Description

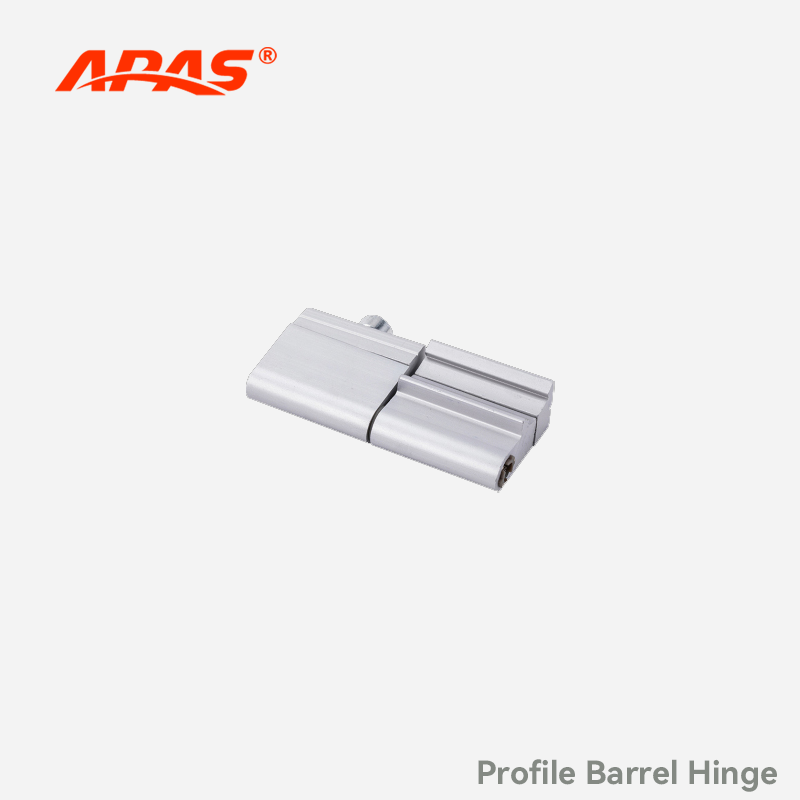

  • Aluminum alloy profile barrel hinge with PP and stainless steel components for door leaves

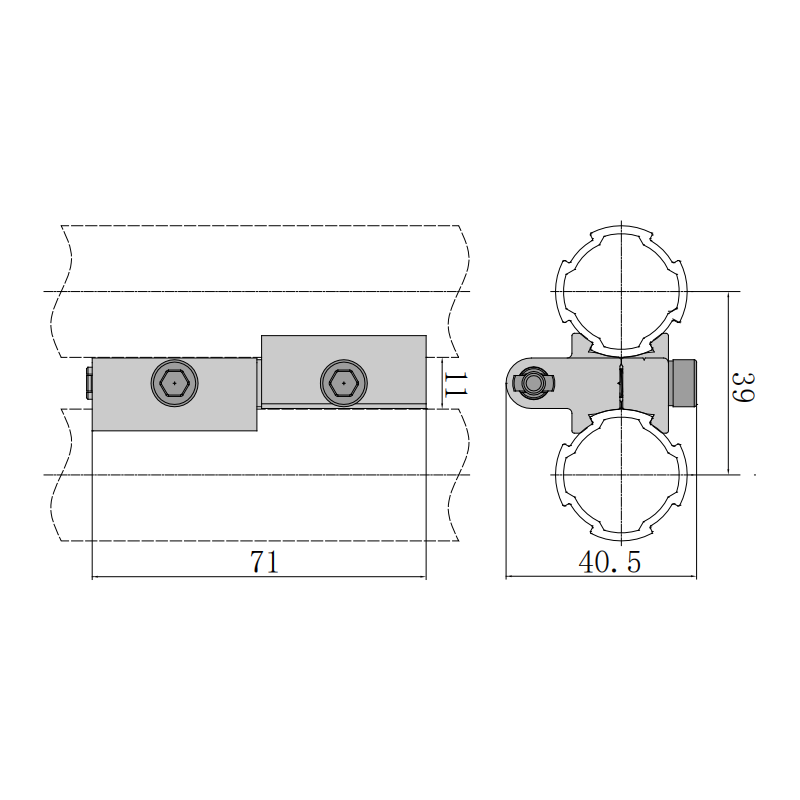

  • 2D dimension and specification drawing of the 71mm profile barrel hinge showing left and right configurations

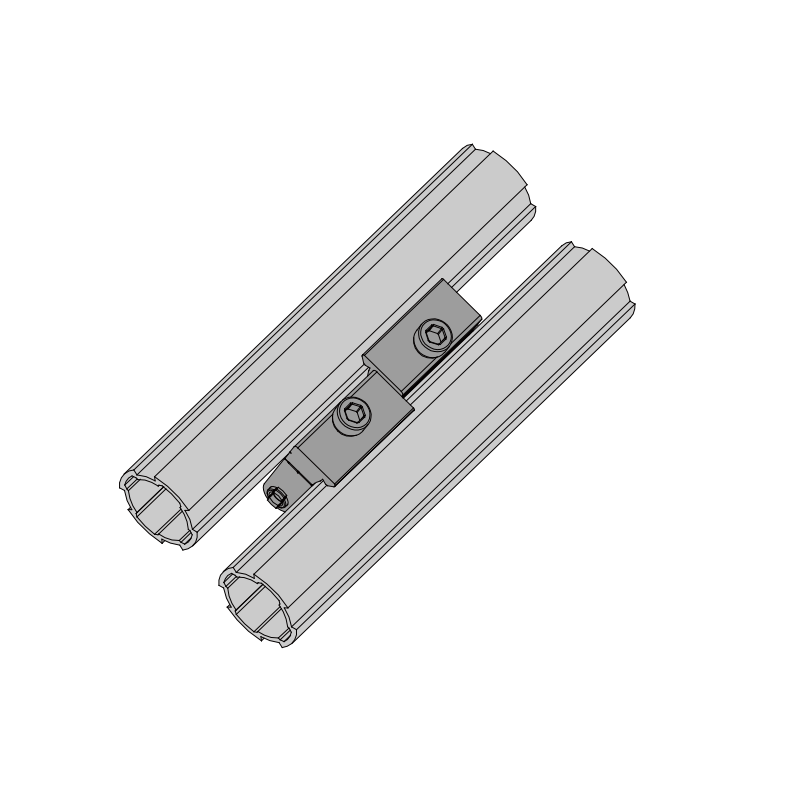

  • Assembly diagram showing profile barrel hinges installed on parallel lean tubes for left or right side door opening
