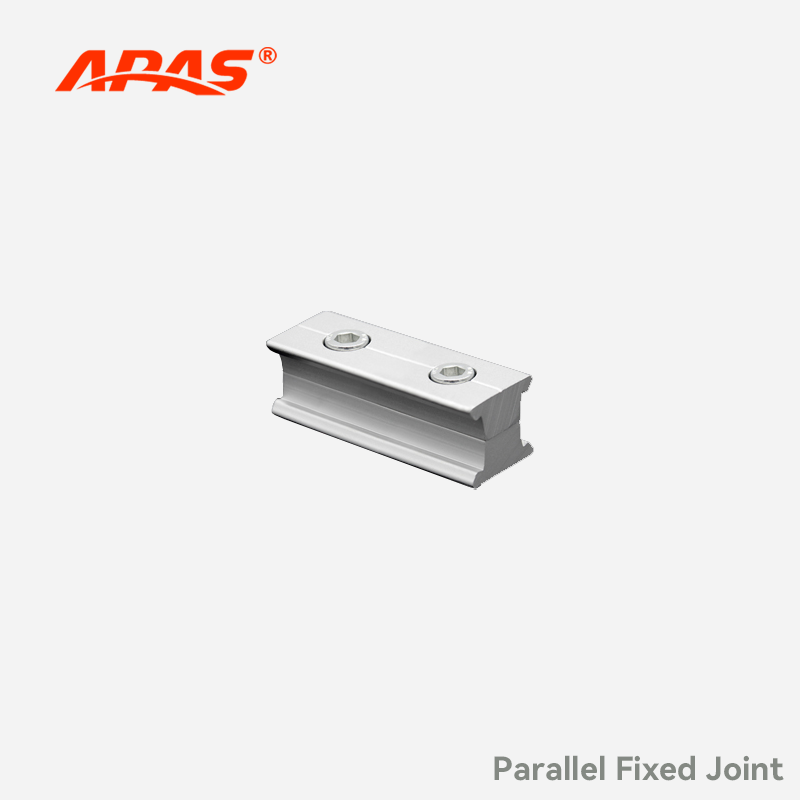

  • Parallel Fixed Joint B-L50 aluminum lean pipe connector for two-pipe parallel connection

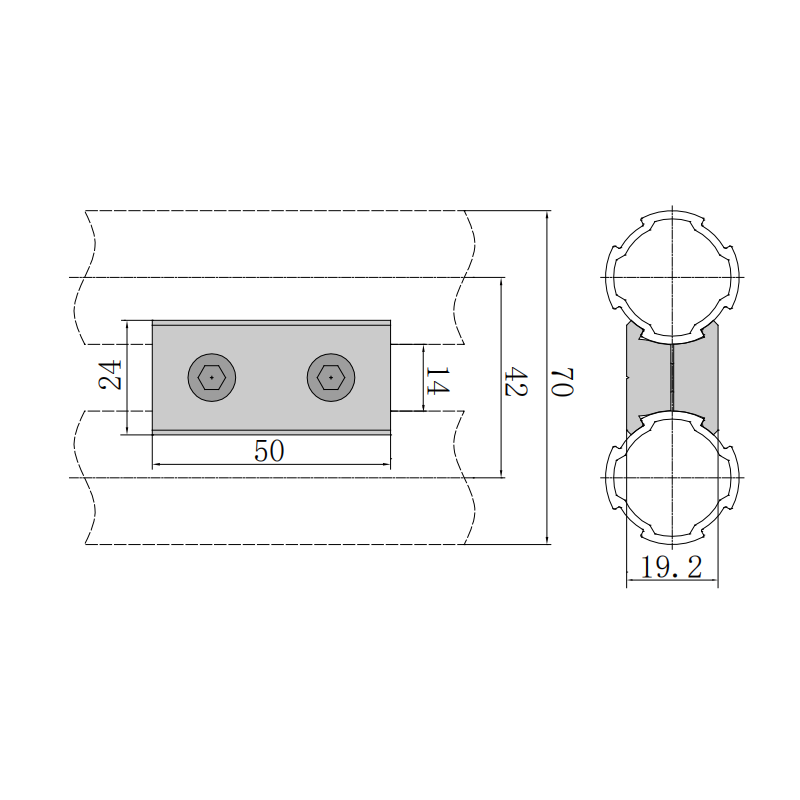

  • 28mm Lean Tube Reinforcement Connector dimension drawing for modular pipe rack extension and main structure strengthening

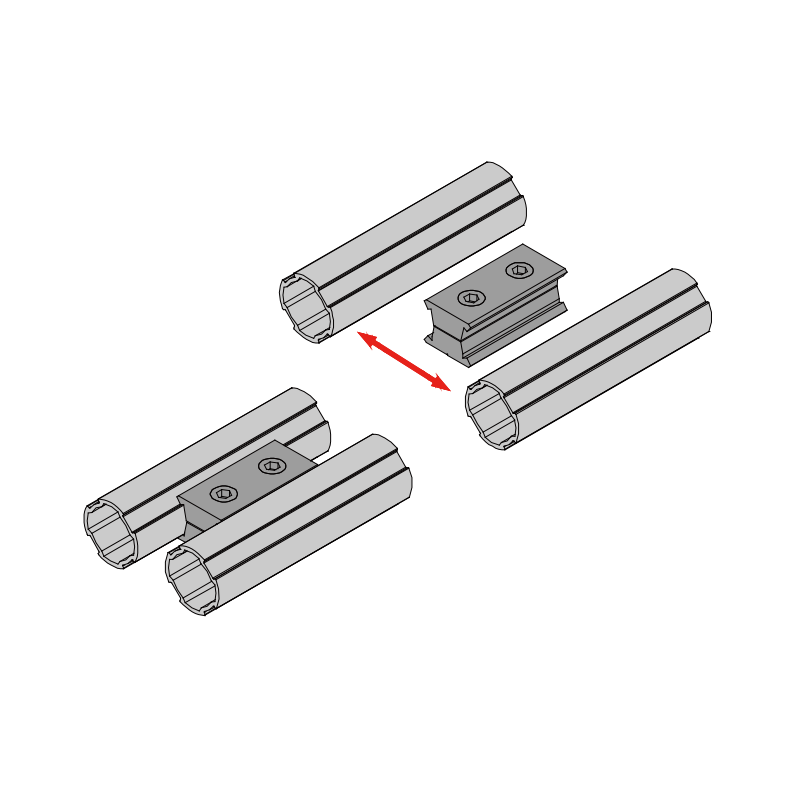

  • Lean Pipe Extension Connector assembly view for 28mm modular tube systems, workstations, carts and rack frame reinforcement
  • Parallel Fixed Joint B-L50 aluminum lean pipe connector for two-pipe parallel connection
  • 28mm Lean Tube Reinforcement Connector dimension drawing for modular pipe rack extension and main structure strengthening
  • Lean Pipe Extension Connector assembly view for 28mm modular tube systems, workstations, carts and rack frame reinforcement

Parallel Fixed Joint

No.APAS.D28.JT.J3M
  • Designed for D28 / 28mm lean pipe structures and modular pipe frame systems
  • Used for parallel connection of two lean pipes with an extended 50mm connector length
  • Simplifies installation by reducing the need for multiple short connectors in one assembly
  • Made of lightweight aluminum alloy with screw fastening for stable and reusable connection
No.
APAS.D28.JT.L.J4N
Material
Aluminum Alloy
Weight
47.1 g
Applicable Tube
28 mm Lean Tube
Manufacturing Process
Die-casting, Sandblasting
GET A QUOTE
Description
  • Parallel Fixed Joint B-L50 aluminum lean pipe connector for two-pipe parallel connection
  • 28mm Lean Tube Reinforcement Connector dimension drawing for modular pipe rack extension and main structure strengthening
  • Lean Pipe Extension Connector assembly view for 28mm modular tube systems, workstations, carts and rack frame reinforcement
