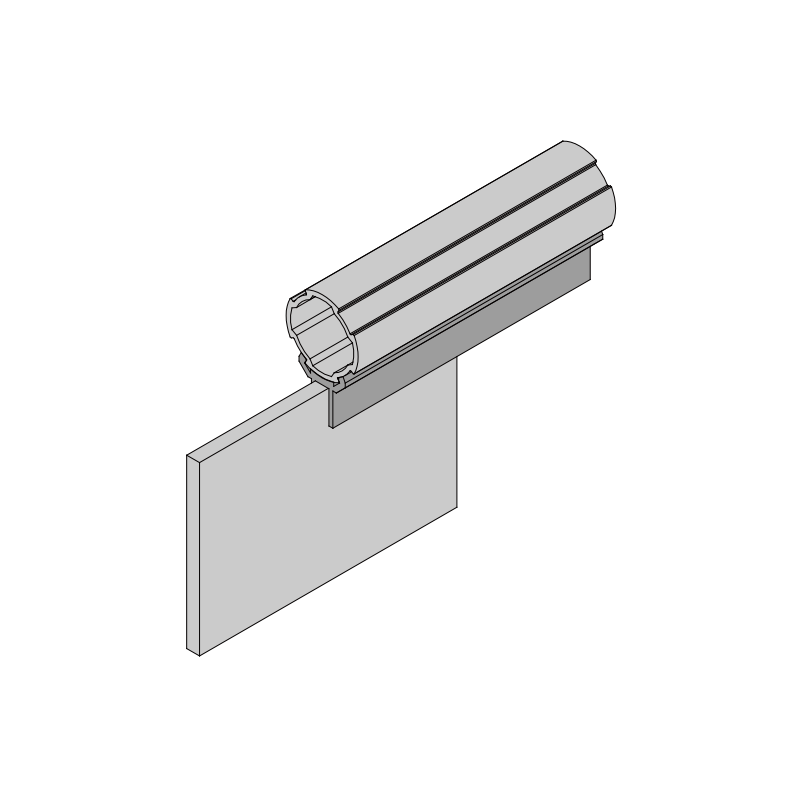

  • Assembly diagram showing how to install a 5mm thick resin board into a lean tube using the plastic panel mounting slot

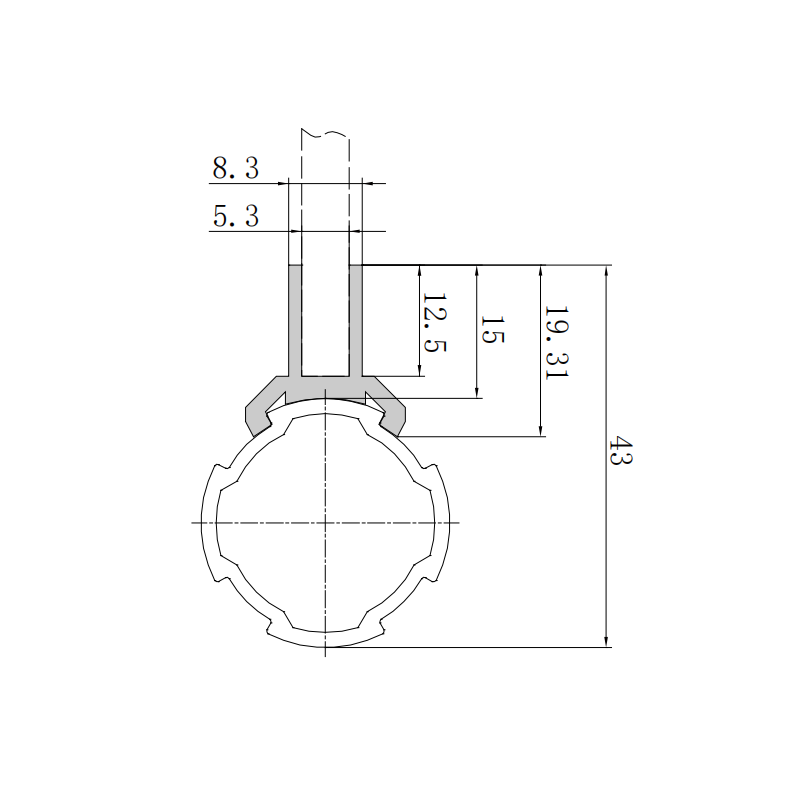

  • PVC closed panel dedicated card slot for lean tube with 5.3mm groove and 150g per meter specifications
  • Assembly diagram showing how to install a 5mm thick resin board into a lean tube using the plastic panel mounting slot
  • PVC closed panel dedicated card slot for lean tube with 5.3mm groove and 150g per meter specifications

Panel Mounting Channel

No.APAS.D28.JT.U2
  • Standardized snap-on design compatible with standard lean pipes
  • Secured with buckle snap, offering easy disassembly and high reusability
  • Constructed from lightweight, durable PVC material for durability.
  • Closed panel dedicated card slot, suitable for use with 5mm thick resin board, and can also be used for workbench installation work instructions;
No.
APAS.D28.JT.U2
Material
PVC
Weight
150 g
Applicable Tube
28 mm Lean Tube
Manufacturing Process
Extrusion Molding
GET A QUOTE
Description
  • Assembly diagram showing how to install a 5mm thick resin board into a lean tube using the plastic panel mounting slot
  • PVC closed panel dedicated card slot for lean tube with 5.3mm groove and 150g per meter specifications
