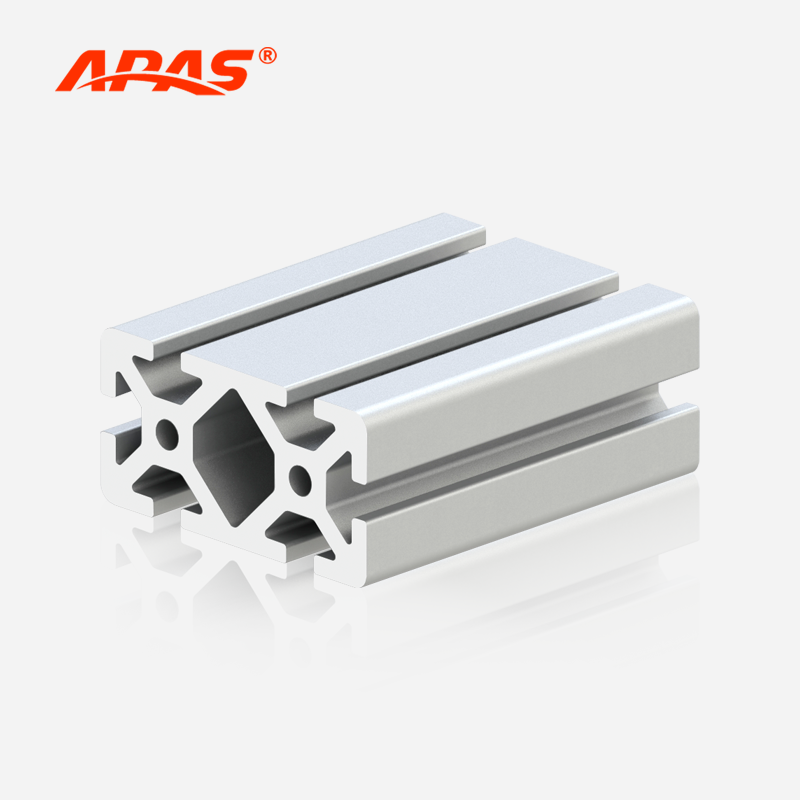

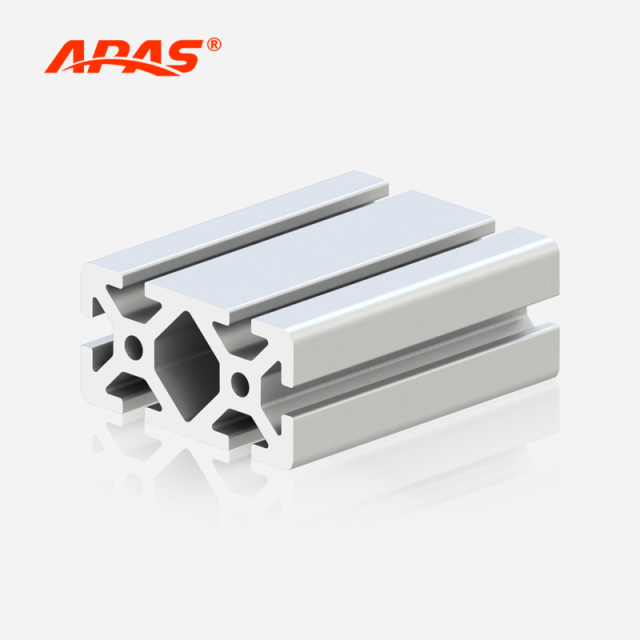

P8-4080SW Aluminum Profile

No.P8-4080SW
P8-4080SW heavy duty aluminum profile measures 40mm*80mm with T-slots of 8.2mm and 2 mounting holes. This profile features T-slots on all four sides: each 80 mm surface has 2 T-slots and each 40 mm has only one, allowing it to assemble with other profiles or accessories,

Compared to P8-4080 and 4080W profiles, the 4080SW offers more superior physical strength, making it ideal for aluminum profile frames requiring the highest load-bearing capacity like stair platfrom and workbench support.
Profile No.
P8-4080SW
Material
6063-T5 Aluminum Alloy
Dimensions
40mm*80mm
T-slot Size
8.2mm
Max Length
6 m per piece
Manufacturing Process
Extrusion
Surface Treatment Process
Sandblasting, Anodizing
  • Description

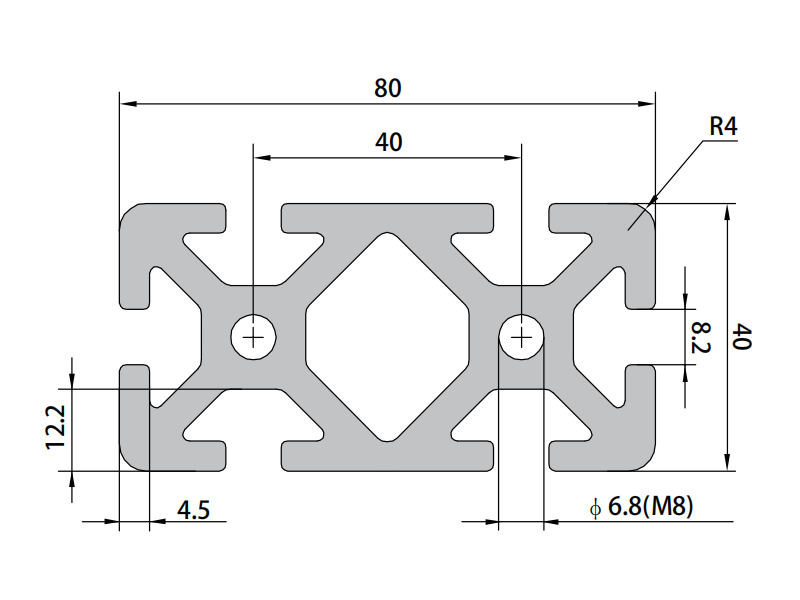

  • Section Diagram

Profile No. P8-4080SW
Material 6063-T5 Aluminum Alloy
Dimensions 40mm*80mm
T-slot Size 8.2mm
Color Plain
Weight per Meter 4.44 kg/m
Moment of Inertia Ix 26.78 cm⁴
Moment of Inertia Iy 100.54 cm⁴
Section Modulus Wx 13.39 cm³
Section Modulus Wy 25.13 cm³
Max Length 6 m per piece
Manufacturing Process Extrusion
Surface Treatment Process Sandblasting, Anodizing
