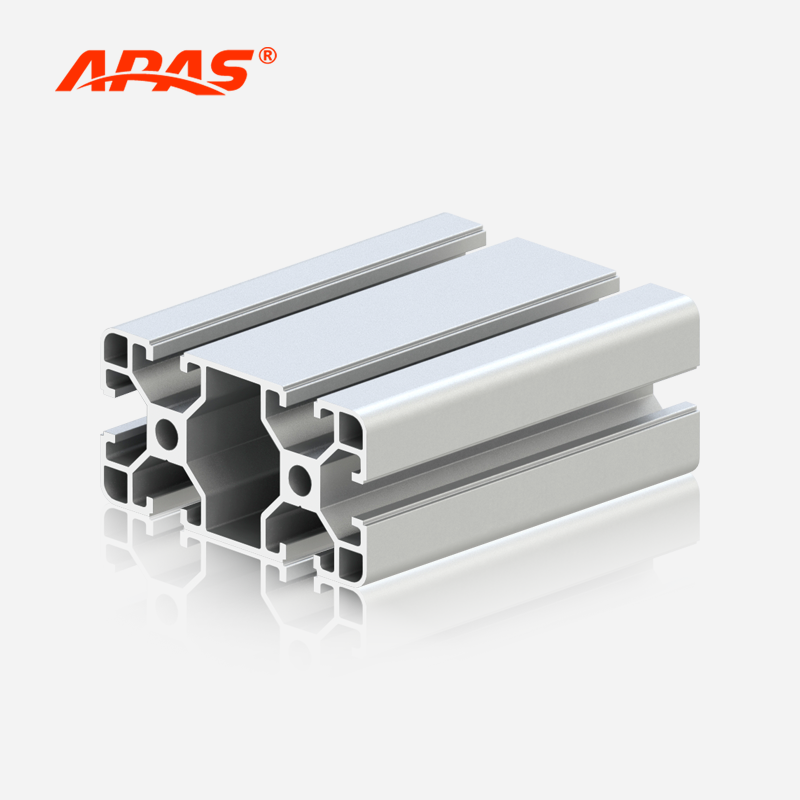

P8-4080L Aluminum Profile

No.P8-4080L
P8-4080L light duty aluminum profile measures 40mm*80mm with T-slots of 8.2mm and 2 mounting holes. This profile features slots on all four sides for assembly with other profiles or accessories, each 80 mm surface has 2 slots, while each 40 mm surface has only one.

Compared to standard P8-4080 profile, the 4080L features thinner wall thickness and reduced weight, making it ideal for frames requiring relatively low load-bearing capacity, such as handrails, shelves, and material handling carts.
Profile No.
P8-4080L
Material
6063-T5 Aluminum Alloy
Dimensions
40mm*80mm
T-slot Size
8.2mm
Max Length
6 m per piece
Manufacturing Process
Extrusion
Surface Treatment Process
Sandblasting, Anodizing
  • Description

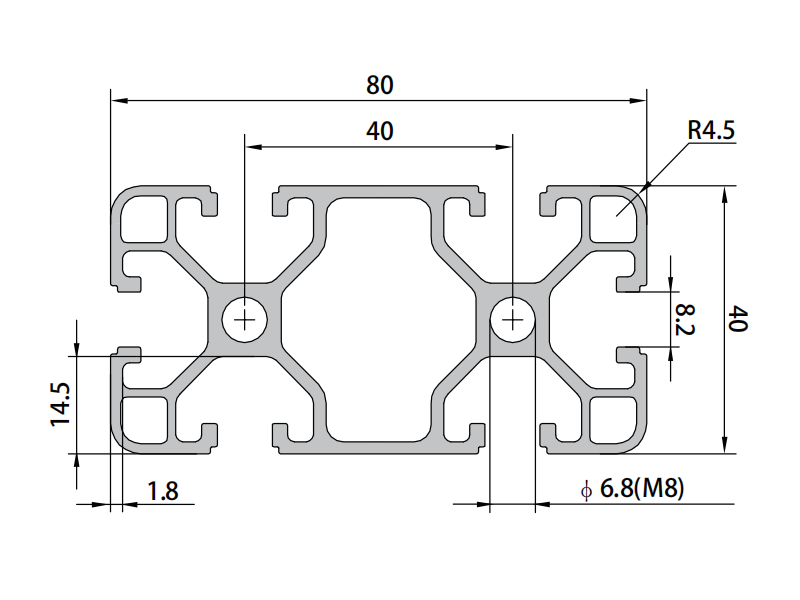

  • Section Diagram

Profile No. P8-4080L
Material 6063-T5 Aluminum Alloy
Dimensions 40mm*80mm
T-slot Size 8.2mm
Color Plain
Weight per Meter 2.83 kg/m
Moment of Inertia Ix 16.86 cm⁴
Moment of Inertia Iy 67.65 cm⁴
Section Modulus Wx 8.44 cm³
Section Modulus Wy 16.91 cm³
Max Length 6 m per piece
Manufacturing Process Extrusion
Surface Treatment Process Sandblasting, Anodizing
