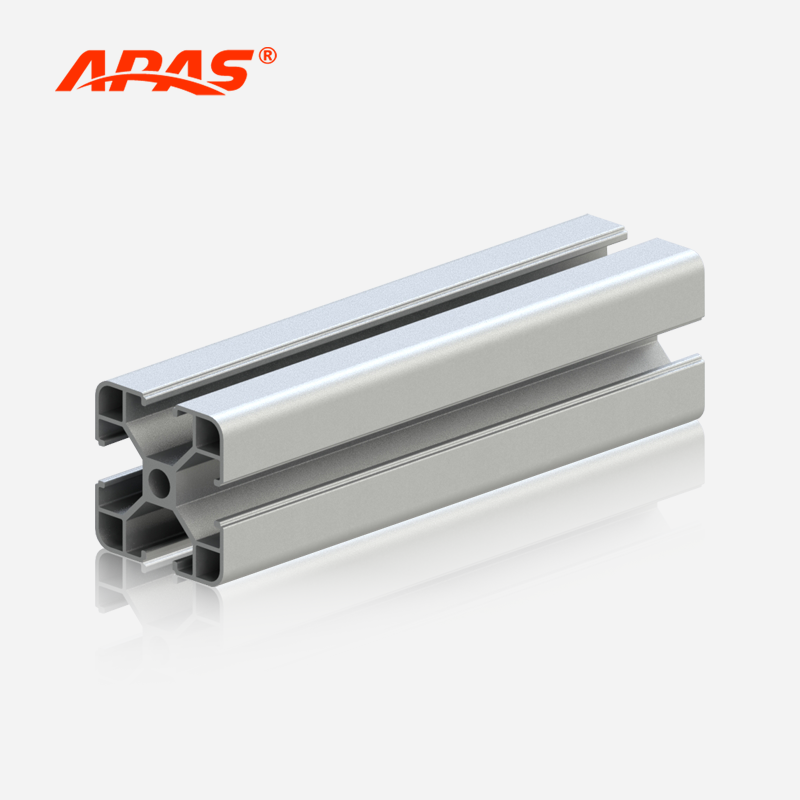

P8-4040SL Aluminum Profile

No.P8-4040SL
The P8-4040SL is a light duty profile measuring 40mm*40mm with 8.2mm T-slots. This profile features slots on all four sides for assembly with other profiles or accessories.

The P8-4040SL profile is a super lightweight specialized profile, offering reduced weitght and lower cost than P8-4040L profile, it's primarily used for frame structures with very low load-bearing conditions, such as shelves and hangers, providing a cost-effective solution.
Profile No.
P8-4040SL
Material
6063-T5 Aluminum Alloy
Dimensions
40mm*40mm
T-slot Size
8.2mm
Max Length
6 m per piece
Manufacturing Process
Extrusion
Surface Treatment Process
Sandblasting, Anodizing
  • Description

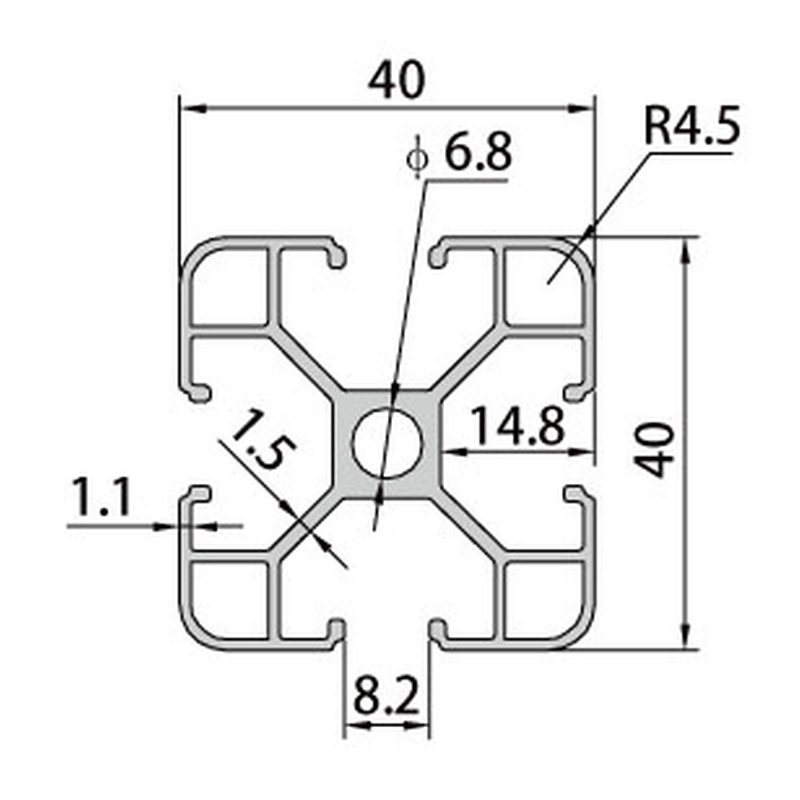

  • Section Diagram

Profile No. P8-4040SL
Material 6063-T5 Aluminum Alloy
Dimensions 40mm*40mm
T-slot Size 8.2mm
Color Plain
Weight per Meter 0.89 kg/m
Moment of Inertia Ix 5.08 cm⁴
Moment of Inertia Iy 5.08 cm⁴
Section Modulus Wx 2.54 cm³
Section Modulus Wy 2.54 cm³
Max Length 6 m per piece
Manufacturing Process Extrusion
Surface Treatment Process Sandblasting, Anodizing
