  • P8-4040R Aluminum Profile,P8-4040R
  • P8-4040R Aluminum Profile,P8-4040R

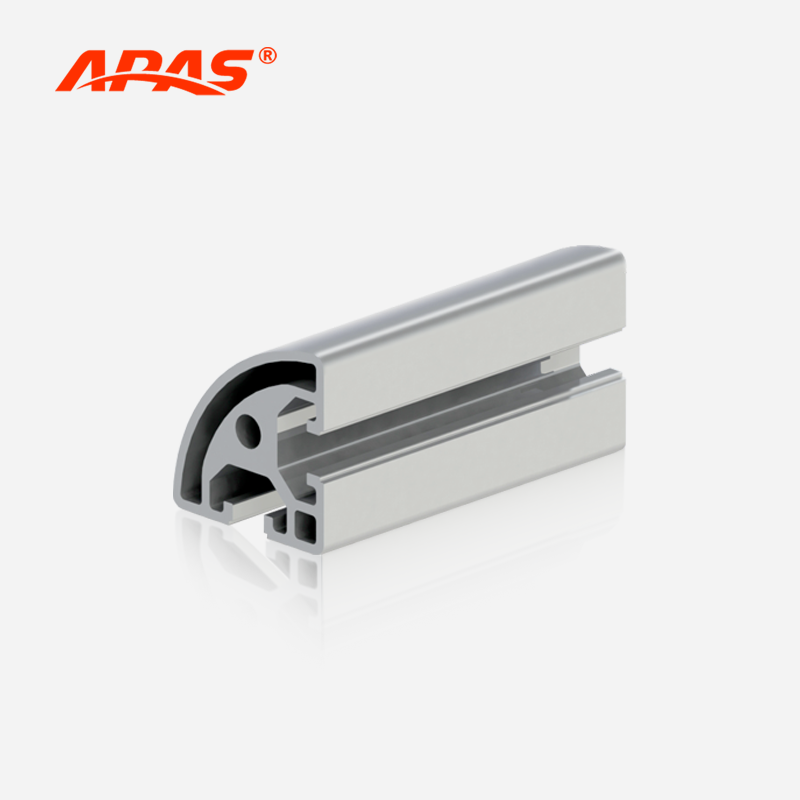

P8-4040R Aluminum Profile

No.P8-4040R
The P8-4040R is a curved profile. Its two flat sides measure 40mm and the slot width is 8.2mm. This profile features slots on both sides, allowing for connection with other profiles or accessories via connectors. The curved surface is smooth, aesthetically pleasing, and easy to clean.

The P8-4040R profile is mainly used for right-angled edges in frames. Its rounded corner design can reduce the risk of damage to workpieces or injury to operators caused by accidental impacts, making it suitable for workbenches, material carts, machine covers, and similar applications.
Profile No.
P8-4040R
Material
6063-T5 Aluminum Alloy
Dimensions
40mm*40mm
T-slot Size
8.2mm
Max Length
6 m per piece
Manufacturing Process
Extrusion
Surface Treatment Process
Sandblasting, Anodizing
GET A QUOTE

  • Description

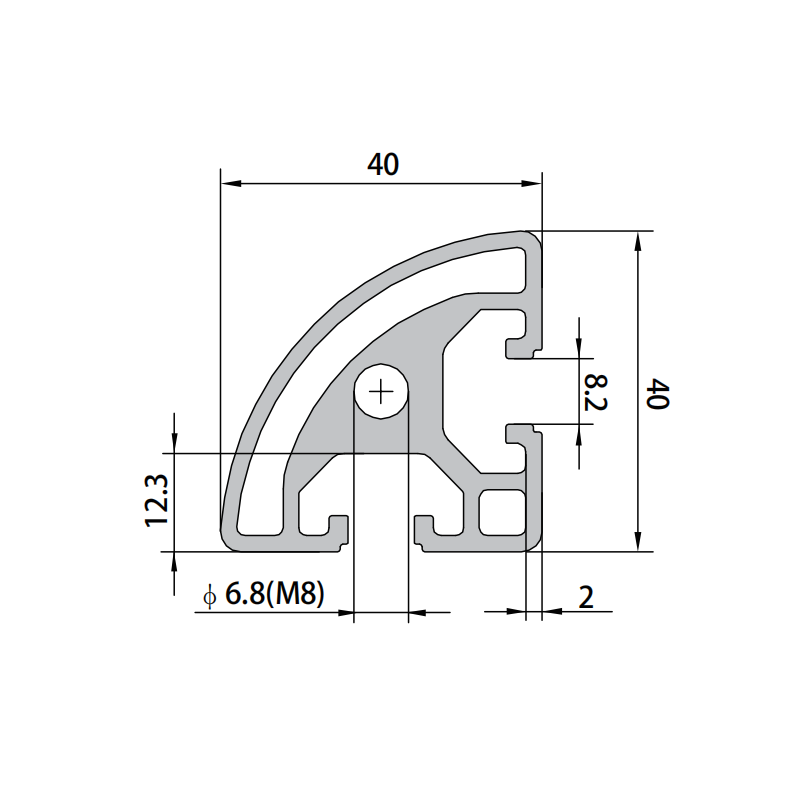

  • Section Diagram

Profile No. P8-4040R
Material 6063-T5 Aluminum Alloy
Dimensions 40mm*40mm
T-slot Size 8.2mm
Color Plain
Weight per Meter 1.95 kg/m
Moment of Inertia Ix 8.89 cm⁴
Moment of Inertia Iy 8.89 cm⁴
Section Modulus Wx 5.07 cm³
Section Modulus Wy 5.07 cm³
Max Length 6 m per piece
Manufacturing Process Extrusion
Surface Treatment Process Sandblasting, Anodizing
