  • P8-4040LA Aluminum Profile,P8-4040LA
  • P8-4040LA Aluminum Profile,P8-4040LA

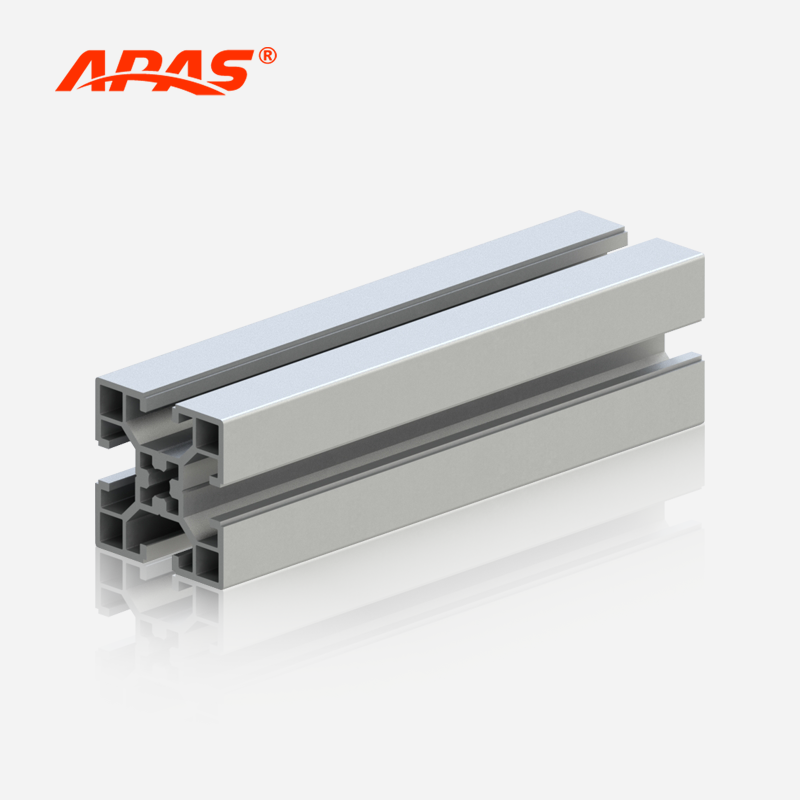

P8-4040LA Aluminum Profile

No.P8-4040LA
P8-4040LA light duty aluminum profile measures 40mm*40mm with T-slots of 8.2mm. This profile features slots on all four sides for assembly with other profiles or accessories.
P8-4040LA profile shares similar appearance and parameters with P8-4040L profile, but its unique flower-shaped hole design makes it suitable for tapping. It's primarily usde for aluminum frame structures with relatively low load-bearing conditions, such as handrails and shelves.
Profile No.
P8-4040LA
Material
6063-T5 Aluminum Alloy
Dimensions
40mm*40mm
T-slot Size
8.2mm
Max Length
6 m per piece
Manufacturing Process
Extrusion
Surface Treatment Process
Sandblasting, Anodizing
GET A QUOTE

  • Description

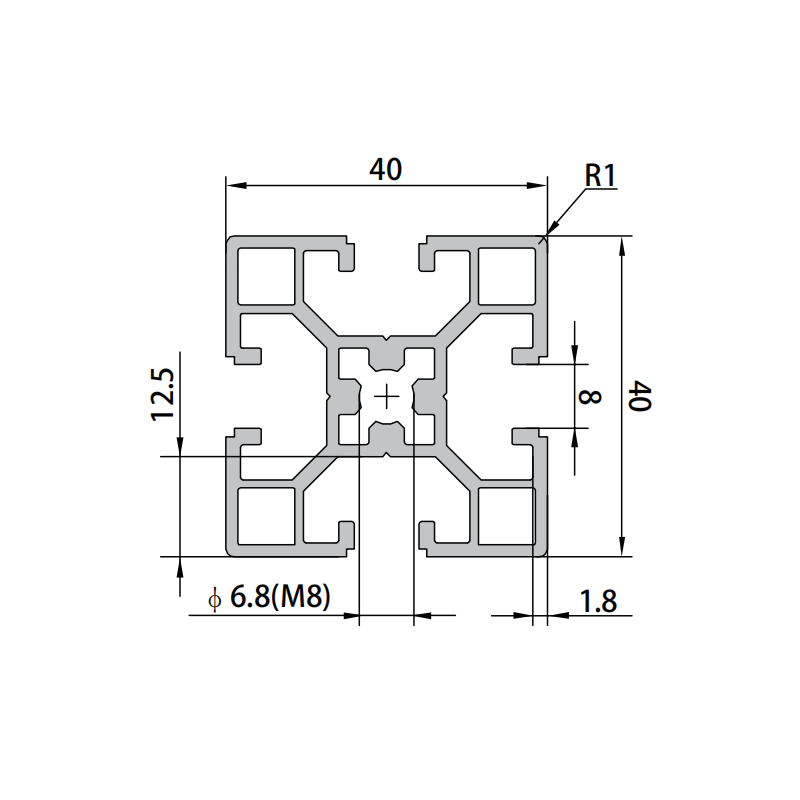

  • Section Diagram

Profile No. P8-4040LA
Material 6063-T5 Aluminum
Dimensions 40mm*40mm
T-slot Size 8.2mm
Color Plain
Weight per Meter 1.49 kg/m
Moment of Inertia Ix 7.24 cm⁴
Moment of Inertia Iy 7.24 cm⁴
Section Modulus Wx 3.62 cm³
Section Modulus Wy 3.62 cm³
Max Length 6 m per piece
Manufacturing Process Extrusion
Surface Treatment Process Sandblasting, Anodizing
