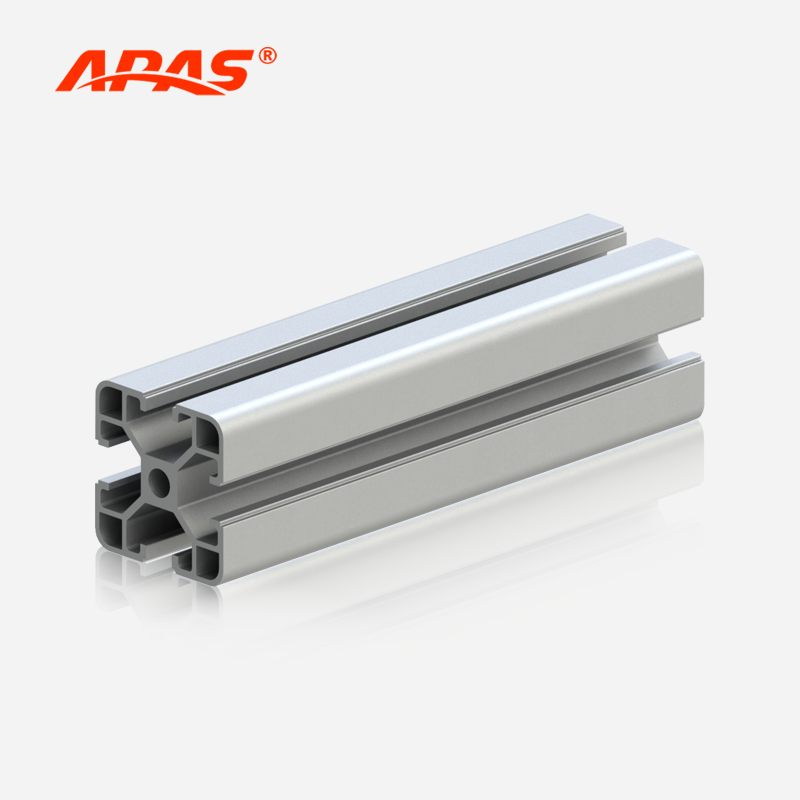

P8-4040L Aluminum Profile

No.P8-4040L
P8-4040L light duty aluminum profile measures 40mm*40mm with T-slots of 8.2mm. This profile features slots on all four sides for assembly with other profiles or accessories.

P8-4040L light duty profile is a specialized profile featuring thinner walls and reduced weight compared to standard 4040 profile. It's primarily usde for aluminum frame structures with relatively low load-bearing conditions, such as handrails, shelving units, and material handling carts.
Profile No.
P8-4040L
Material
6063-T5 Aluminum Alloy
Dimensions
40mm*40mm
T-slot Size
8.2mm
Max Length
6 m per piece
Manufacturing Process
Extrusion
Surface Treatment Process
Sandblasting, Anodizing
  • Description

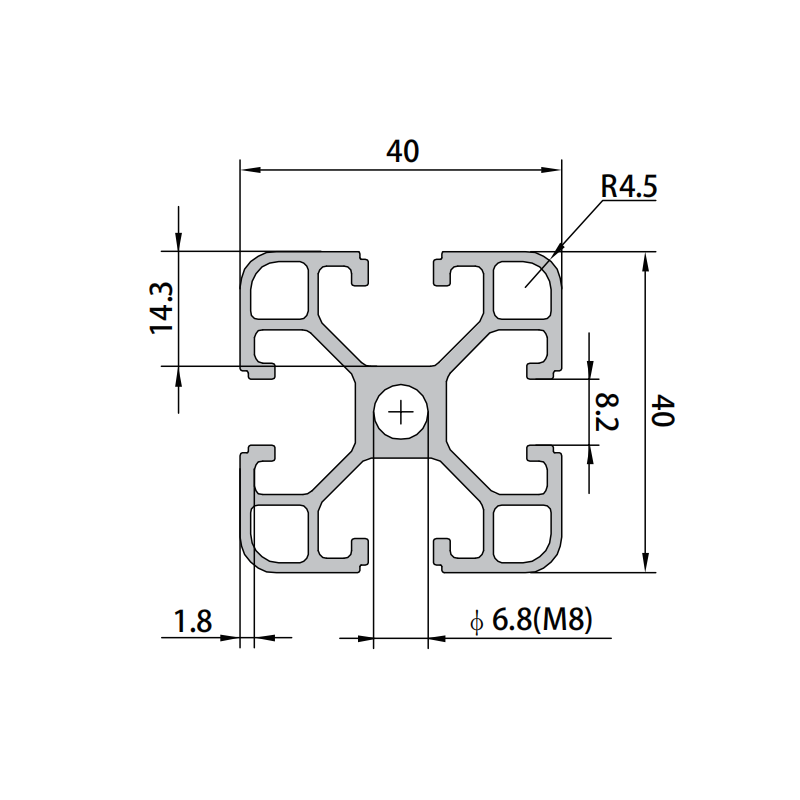

  • Section Diagram

Profile No. P8-4040L
Material 6063-T5 Aluminum Alloy
Dimensions 40mm*40mm
T-slot Size 8.2mm
Color Plain
Weight per Meter 1.56 kg/m
Moment of Inertia Ix 9.17 cm⁴
Moment of Inertia Iy 9.17 cm⁴
Section Modulus Wx 4.58 cm³
Section Modulus Wy 4.58 cm³
Max Length 6 m per piece
Manufacturing Process Extrusion
Surface Treatment Process Sandblasting, Anodizing
