P8-4040-1N

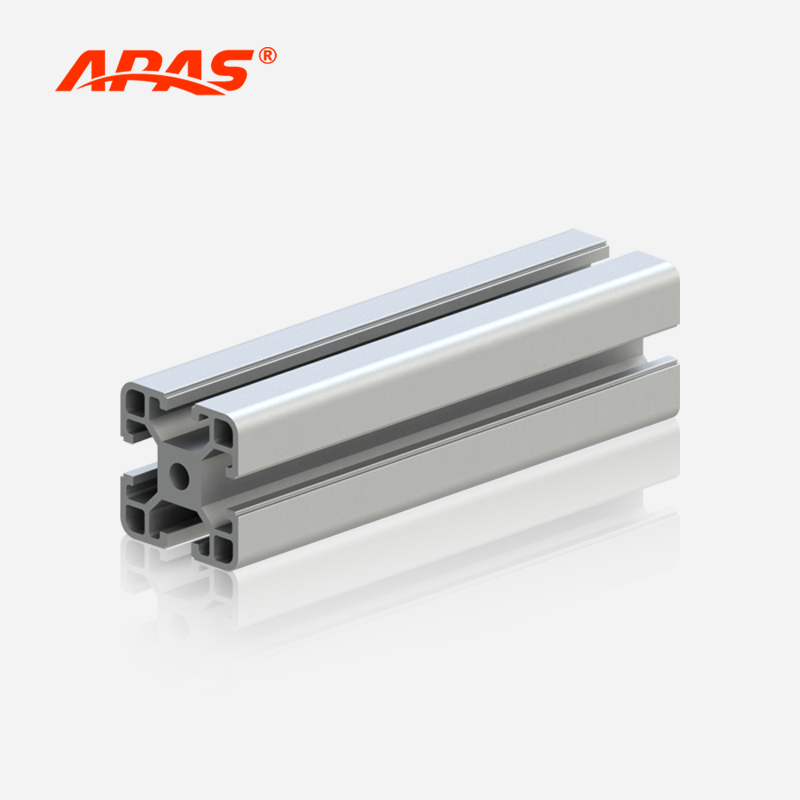

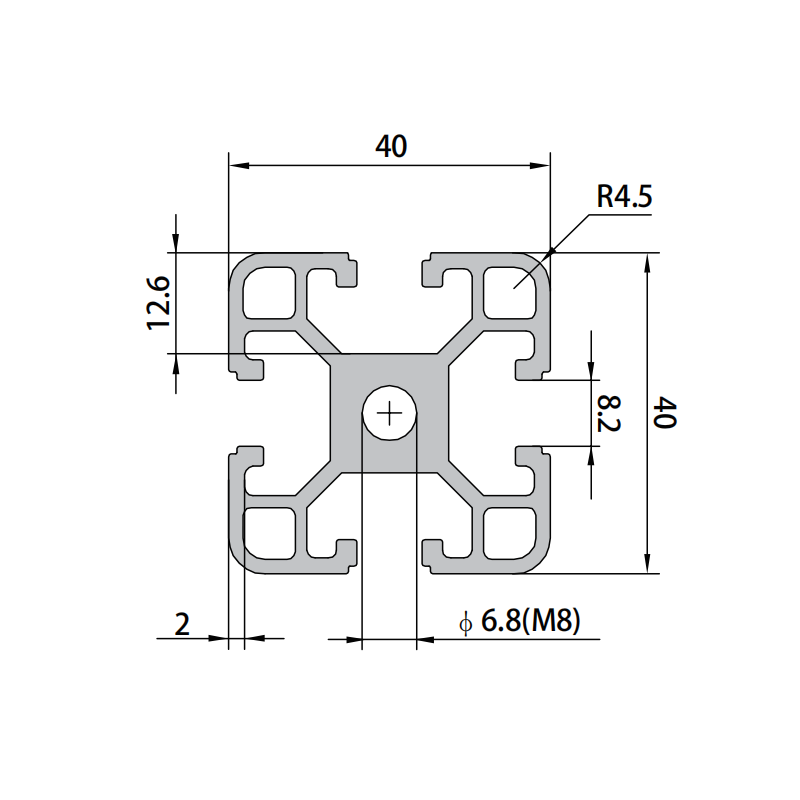

P8-4040 aluminum profile measures 40mm*40mm with 8.2mm T-slots. This profile features slots on all four sides, allowing connectors to be used in any direction for assembly with other profiles or accessories.
As one of the most widely used industrial framing profiles, the P8-4040 is highly versatile and primarily suitable for workbenches, material handling carts, safety fences, step platforms, and more areas.
| Profile No. | P8-4040 |
| Material | 6063-T5 Aluminum |
| Dimensions | 40mm*40mm |
| T-slot Size | 8.2mm |
| Color | Plain |
| Weight per Meter | 2.00 kg/m |
| Moment of Inertia Ix | 10.88 cm⁴ |
| Moment of Inertia Iy | 10.88 cm⁴ |
| Section Modulus Wx | 5.43 cm³ |
| Section Modulus Wy | 5.43 cm³ |
| Max Length | 6 m per piece |
