  • P6-2020-1N Aluminum Profile,P6-2020-1N Aluminum Profile
  • P6-2020-1N Aluminum Profile,P6-2020-1N Aluminum Profile

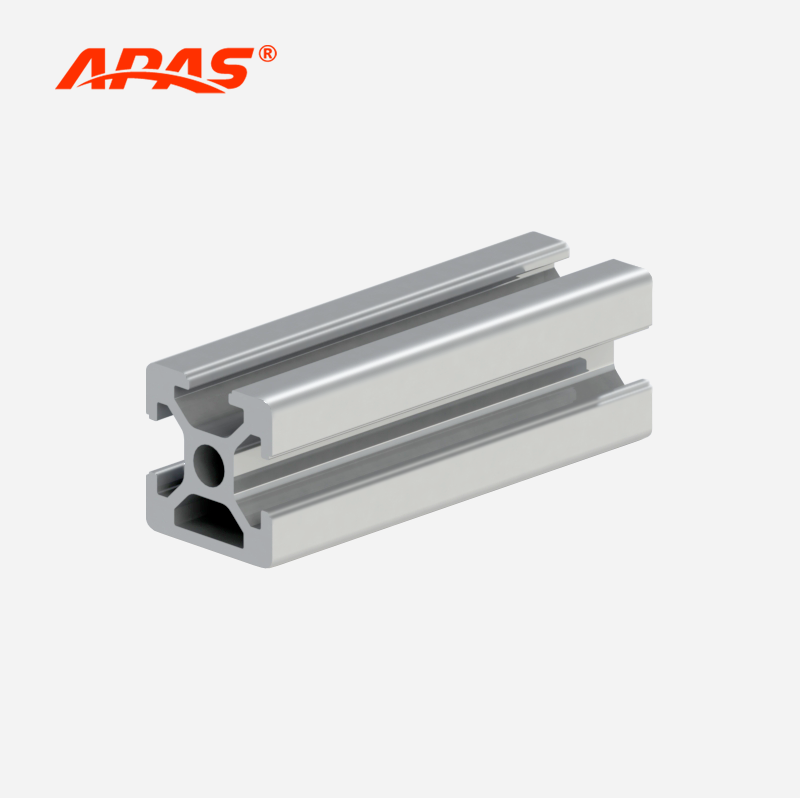

P6-2020-1N Aluminum Profile

No.P6-2020-1N
The P6-2020-1N profile measures 20mm*20mm and has a M6 mounting hole internally. This profile features 6.2mm slots on three sides for assembly with other profiles or necessaries, while one side is a smooth surface, offering an aesthetically pleasing and easy-to-clean finish.

P6-2020-1N, 2020-2N90, 2020-2N180, and 2020-3N profiles share similar strength and weight with standard 2020 profile, both are suitable for lightweight frames with lower load-bearing requirements. but the flat surfaces of N profiles make them more suitable for installation on the outer side structures of frames to ensure the aesthetic appeal of the overall structure.
Profile No.
P6-2020-1N
Material
6063-T5 Aluminum Alloy
Dimensions
20mm*20mm
T-slot Size
6.2mm
Max Length
6 m per piece
Manufacturing Process
Extrusion
Surface Treatment Process
Sandblasting, Anodizing
GET A QUOTE

  • Description

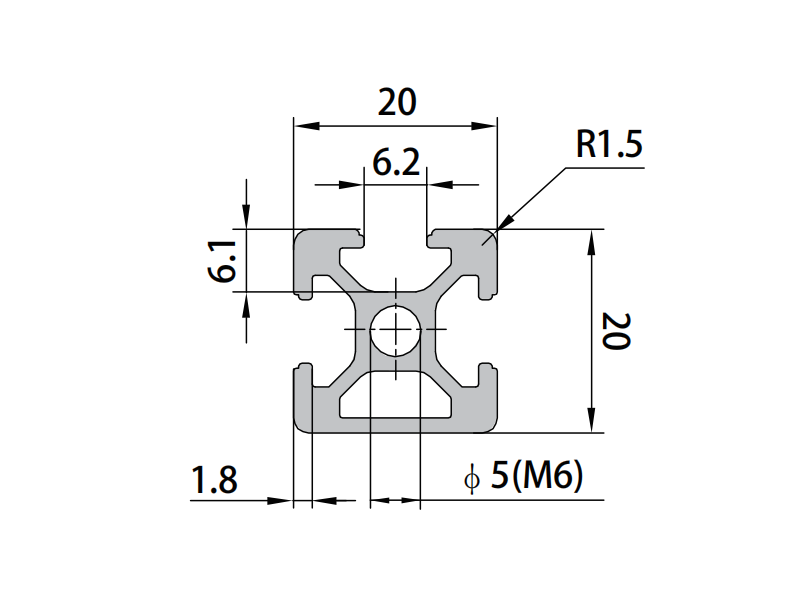

  • Section Diagram

Profile No. P6-2020-1N
Material 6063-T5 Aluminum Alloy
Dimensions 20mm*20mm
T-slot Size 6.2mm
Color Plain
Weight per Meter 0.49 kg/m
Moment of Inertia Ix 0.788 cm⁴
Moment of Inertia Iy 0.717 cm⁴
Section Modulus Wx 0.754 cm³
Section Modulus Wy 0.717 cm³
Max Length 6 m per piece
Manufacturing Process Extrusion
Surface Treatment Process Sandblasting, Anodizing
  • P6-2020-1N Aluminum Profile,P6-2020-1N Aluminum Profile
