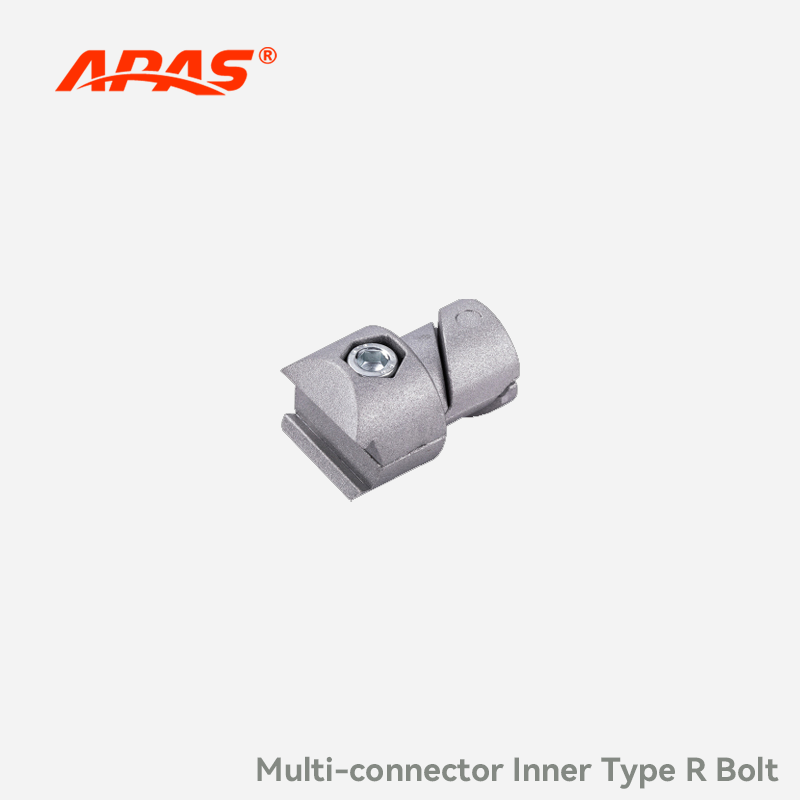

  • D28 Multi-connector Inner Type R Bolt aluminum alloy hidden joint for lean tube system

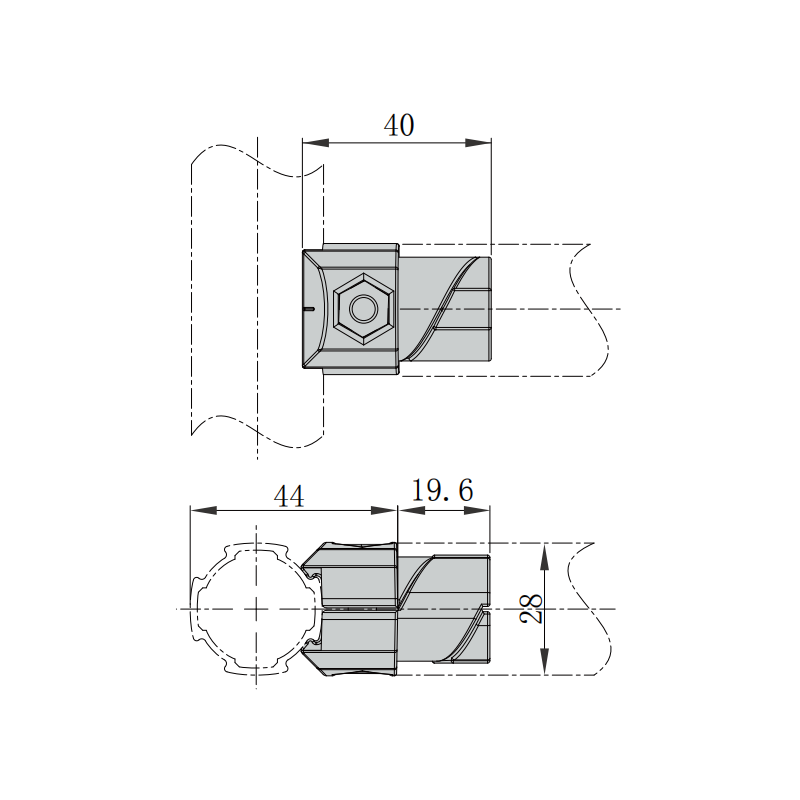

  • Semi built-in lean pipe connector technical drawing for modular pipe rack frame with flush appearance size

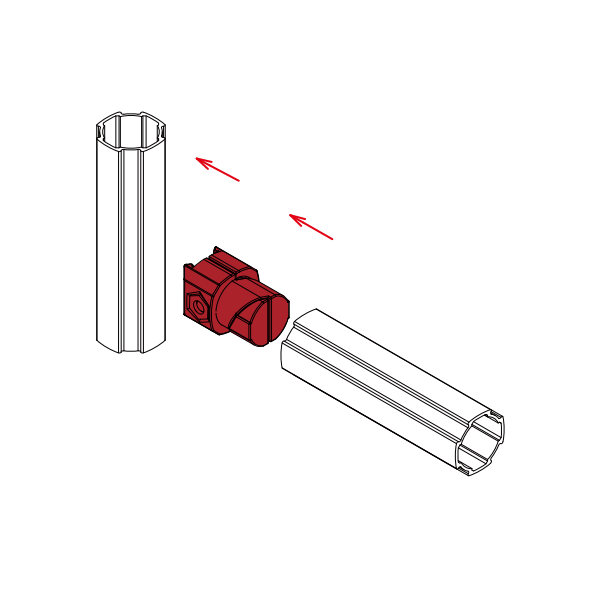

  • Semi built-in lean tube connector for industrial pipe racking systems requiring clean appearance and compact assembly
  • D28 Multi-connector Inner Type R Bolt aluminum alloy hidden joint for lean tube system
  • Semi built-in lean pipe connector technical drawing for modular pipe rack frame with flush appearance size
  • Semi built-in lean tube connector for industrial pipe racking systems requiring clean appearance and compact assembly

Multi-connector Inner Type R Bolt

No.APAS.D28.JT.B
  • 90° semi-built-in internal connector designed for 28mm lean tubes
  • Constructed from lightweight, corrosion-resistant high-strength aluminum alloy
  • Size-matched with lean tubes for clean, aesthetic structural connections
  • Screw-fastened structure allows quick assembly, disassembly and high reusability
No.
APAS.D28.JT.B
Material
Aluminum Alloy
Weight
44.3 g
Applicable Tube
28 mm Lean Tube
Manufacturing Process
Die-casting, Sandblasting
GET A QUOTE
Description
  • D28 Multi-connector Inner Type R Bolt aluminum alloy hidden joint for lean tube system
  • Semi built-in lean pipe connector technical drawing for modular pipe rack frame with flush appearance size
  • Semi built-in lean tube connector for industrial pipe racking systems requiring clean appearance and compact assembly
