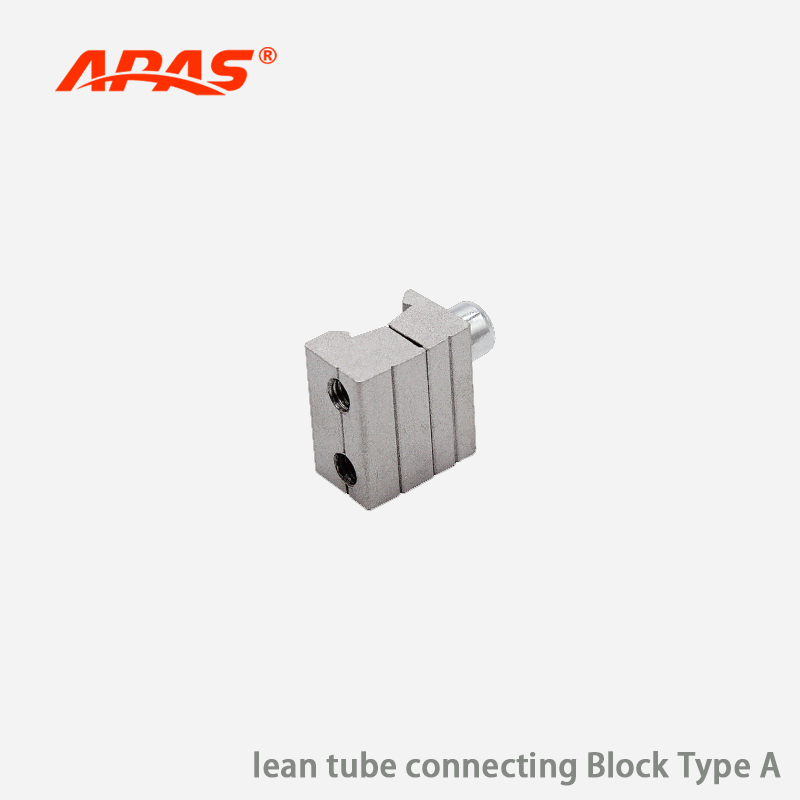

  • Aluminum Alloy M6 Lean Tube Connecting Block Type A for Panel and Pulley Mounting

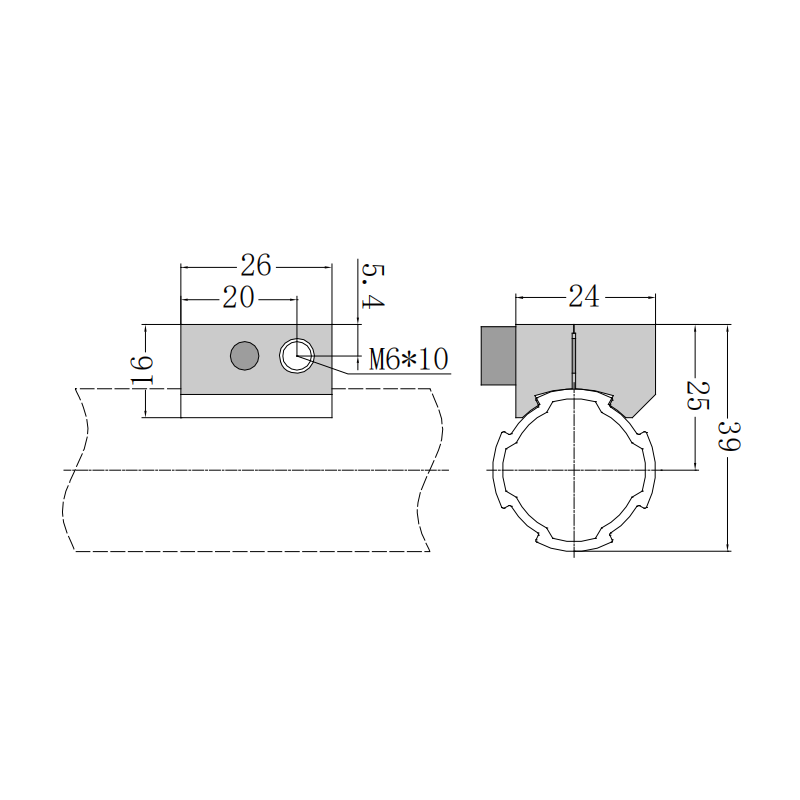

  • Engineering dimensional drawing of M6 aluminum block showing 26mm width and M6x10 thread specs

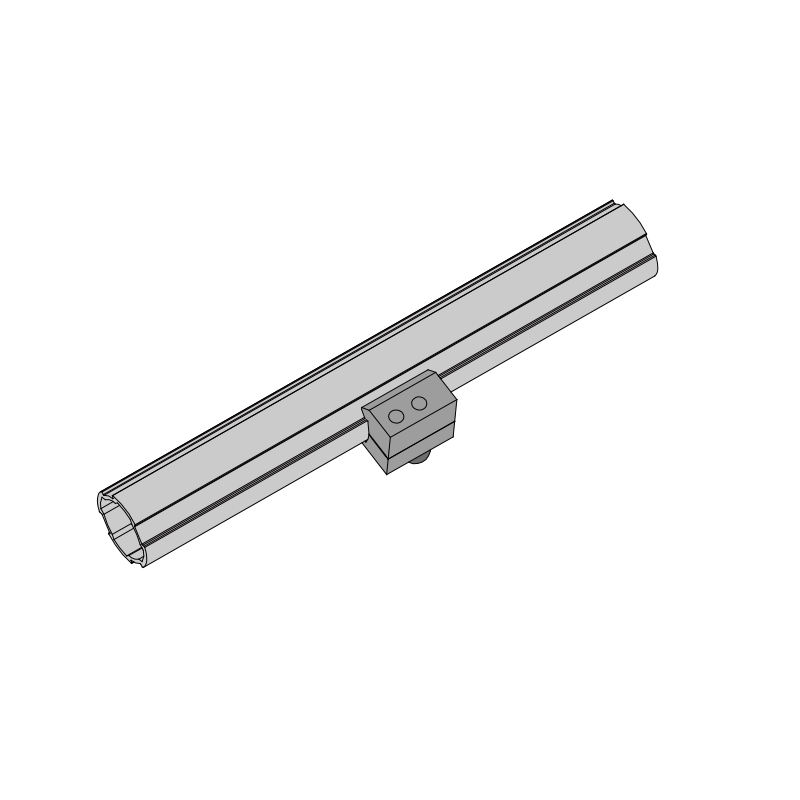

  • Installation diagram showing the aluminum accessory mounted onto an industrial lean tube for panel or pulley setup
  • Aluminum Alloy M6 Lean Tube Connecting Block Type A for Panel and Pulley Mounting
  • Engineering dimensional drawing of M6 aluminum block showing 26mm width and M6x10 thread specs
  • Installation diagram showing the aluminum accessory mounted onto an industrial lean tube for panel or pulley setup

lean tube connecting Block Type A

No.APAS.D28.JT.SD
  • Can be used to install U-groove pulleys and other M6 threaded accessories, as well as to install panels.
  • Designed for φ28 series lean manufacturing pipes and modular structural framing.
No.
APAS.D28.JT.SD
Material
Aluminum Alloy
Weight
22.9 g
Applicable Tube
28 mm Lean Tube
Manufacturing Process
Die-casting, Sandblasting
GET A QUOTE
Description
  • Aluminum Alloy M6 Lean Tube Connecting Block Type A for Panel and Pulley Mounting
  • Engineering dimensional drawing of M6 aluminum block showing 26mm width and M6x10 thread specs
  • Installation diagram showing the aluminum accessory mounted onto an industrial lean tube for panel or pulley setup
