P8-4040-1N

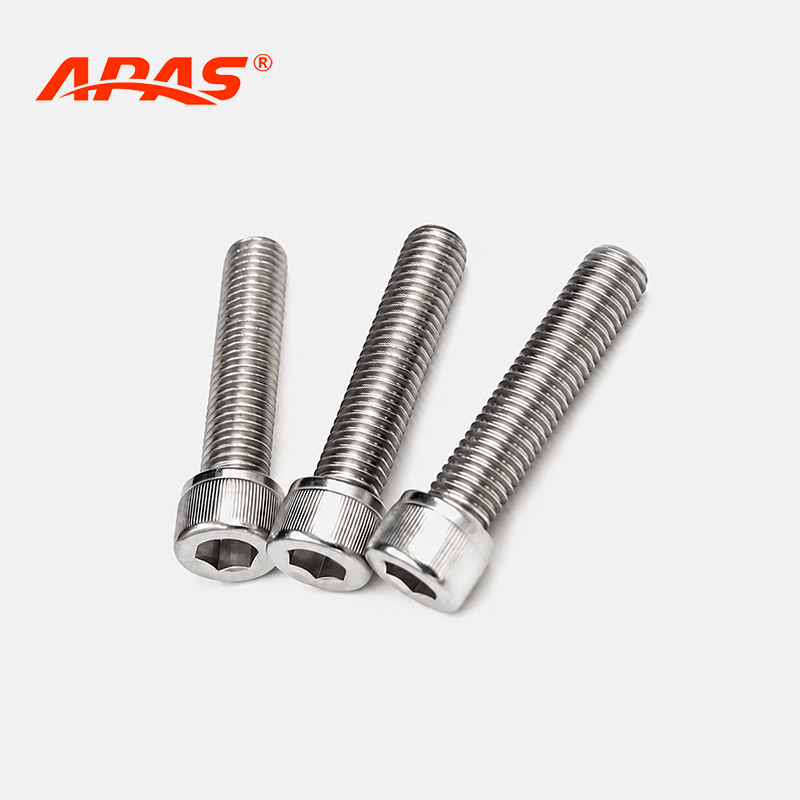

Hex Socket Head Cap Screw, special cylindrical head bolt for high-strength aluminum profile section connection.

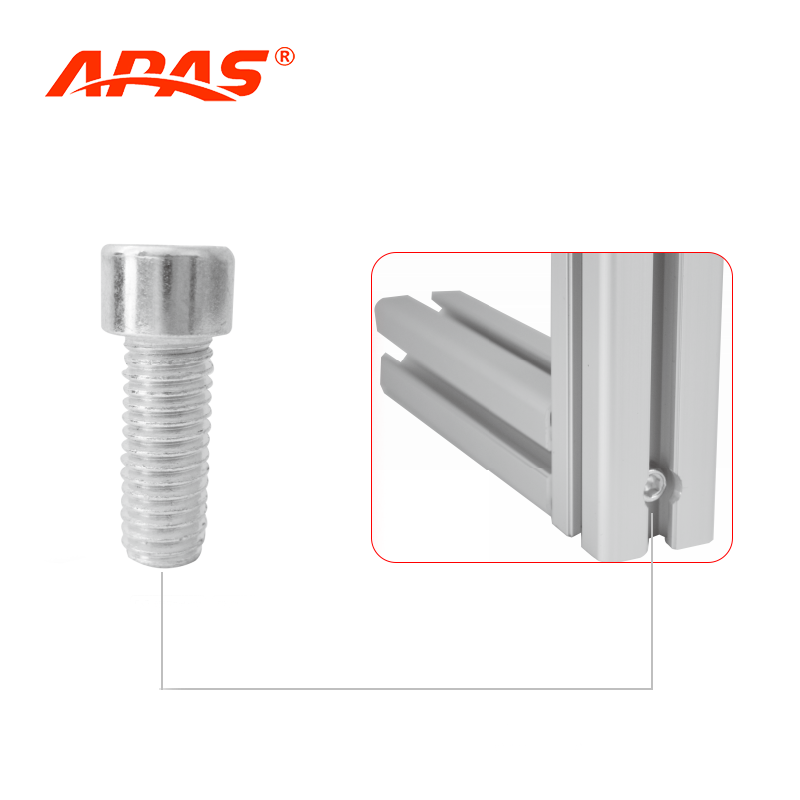

Thread processing and mounting hole drilling on joints are required before installation to ensure stable, tight assembly for industrial aluminum frame structures.Technical Specifications

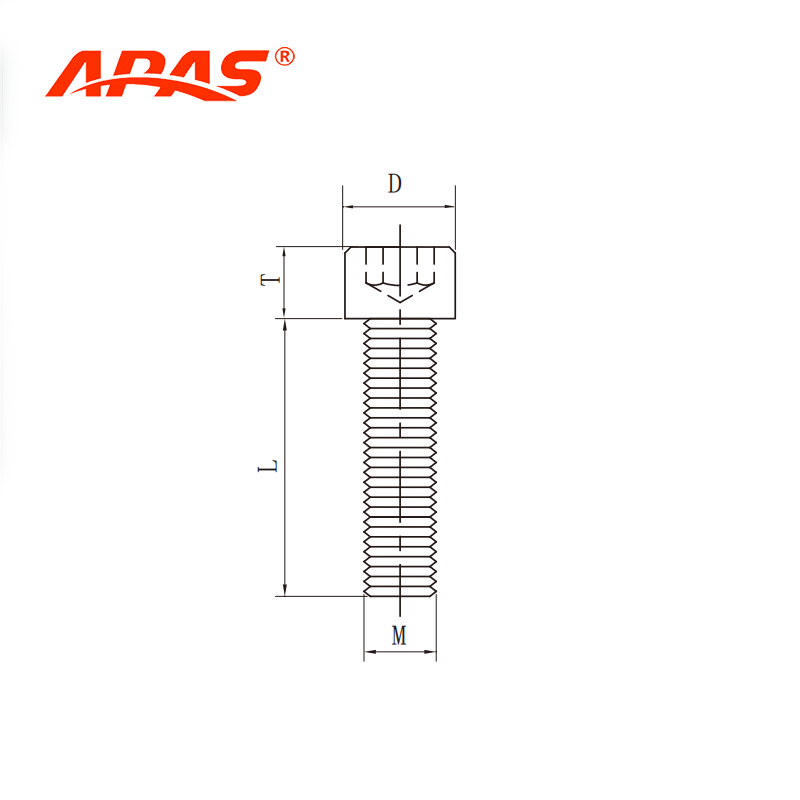

| 序号 | 产品名称 | 螺纹规格 | 长度 L (mm) | 头部直径 D (mm) | 头部高度 T (mm) | 材质 | 货号 |
|---|---|---|---|---|---|---|---|
| 1 | Cylindrical head bolt | M6 | 12 | Φ9 | 5.5 | Galvanized carbon steel or stainless steel | CE-CSM6x12 |
| 2 | Cylindrical head bolt | M6 | 14 | Φ9 | 5.5 | Galvanized carbon steel or stainless steel | CE-CSM6x14 |
| 3 | Cylindrical head bolt | M6 | 18 | Φ9 | 5.5 | Galvanized carbon steel or stainless steel | CE-CSM6x18 |
| 4 | Cylindrical head bolt | M6 | 20 | Φ9 | 5.5 | Galvanized carbon steel or stainless steel | CE-CSM6x20 |
| 5 | Cylindrical head bolt | M6 | 25 | Φ9 | 5.5 | Galvanized carbon steel or stainless steel | CE-CSM6x25 |
| 6 | Cylindrical head bolt | M6 | 30 | Φ9 | 5.5 | Galvanized carbon steel or stainless steel | CE-CSM6x30 |
| 7 | Cylindrical head bolt | M6 | 35 | Φ9 | 5.5 | Galvanized carbon steel or stainless steel | CE-CSM6x35 |
| 8 | Cylindrical head bolt | M6 | 40 | Φ9 | 5.5 | Galvanized carbon steel or stainless steel | CE-CSM6x40 |
| 9 | Cylindrical head bolt | M8 | 12 | Φ11 | 7 | Galvanized carbon steel or stainless steel | CE-CSM8x12 |
| 10 | Cylindrical head bolt | M8 | 16 | Φ11 | 7 | Galvanized carbon steel or stainless steel | CE-CSM8x16 |
| 11 | Cylindrical head bolt | M8 | 18 | Φ11 | 7 | Galvanized carbon steel or stainless steel | CE-CSM8x18 |
| 12 | Cylindrical head bolt | M8 | 20 | Φ11 | 7 | Galvanized carbon steel or stainless steel | CE-CSM8x20 |
| 13 | Cylindrical head bolt | M8 | 25 | Φ11 | 7 | Galvanized carbon steel or stainless steel | CE-CSM8x25 |
| 14 | Cylindrical head bolt | M8 | 40 | Φ11 | 7 | Galvanized carbon steel or stainless steel | CE-CSM8x40 |
| 15 | Cylindrical head bolt | M8 | 45 | Φ11 | 7 | Galvanized carbon steel or stainless steel | CE-CSM8x45 |
| 16 | Cylindrical head bolt | M8 | 50 | Φ11 | 7 | Galvanized carbon steel or stainless steel | CE-CSM8x50 |
| 17 | Cylindrical head bolt | M8 | 60 | Φ11 | 7 | Galvanized carbon steel or stainless steel | CE-CSM8x60 |
| 18 | Cylindrical head bolt | M8 | 80 | Φ11 | 7 | Galvanized carbon steel or stainless steel | CE-CSM8x80 |
| 19 | Cylindrical head bolt | M10 | 25 | Φ14 | 9 | Galvanized carbon steel or stainless steel | CE-CSM10x25 |
| 20 | Cylindrical head bolt | M10 | 50 | Φ14 | 9 | Galvanized carbon steel or stainless steel | CE-CSM10x50 |
| 21 | Cylindrical head bolt | M12 | 100 | Φ17 | 11 | Galvanized carbon steel or stainless steel | CE-CSM12x100 |
