P8-4040-1N

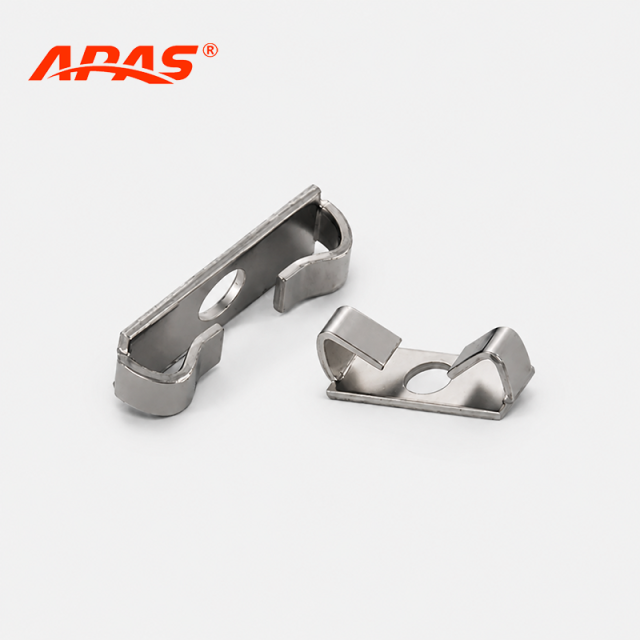

The 30 Series Spring Fastener (CE-SF30) is specifically engineered for rigid 90-degree right-angle connections between two aluminum profile segments with an 8mm slot (P8).

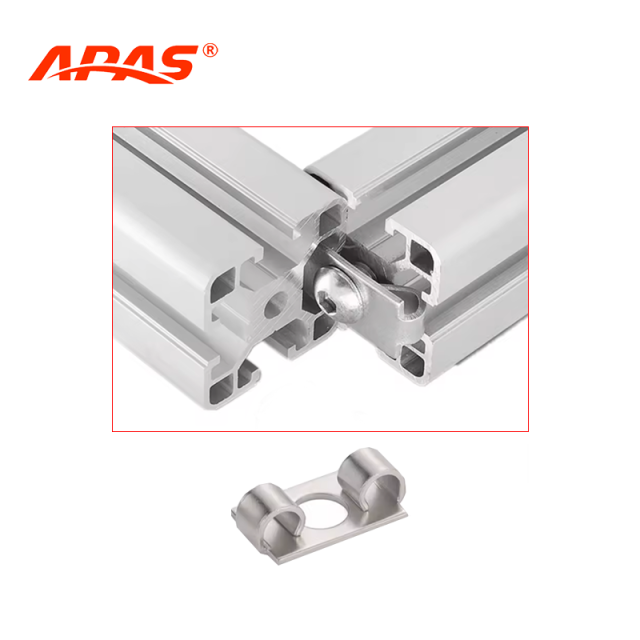

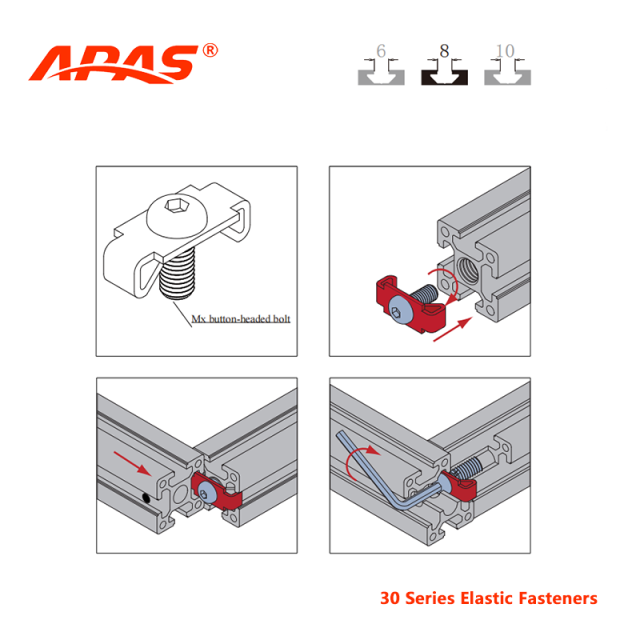

Inserted directly into the profile T-slot and paired with an M8 button head screw, it provides an internal, high-strength connection that seamlessly locks profiles together without cluttering the outer frame.
Technical Specifications
| Profile Slot | Screw Thread | Material | Order Code |
| P 8 | M 8 | Carbon steel (galvanized or nickel-plated) | CE-SF30 |
