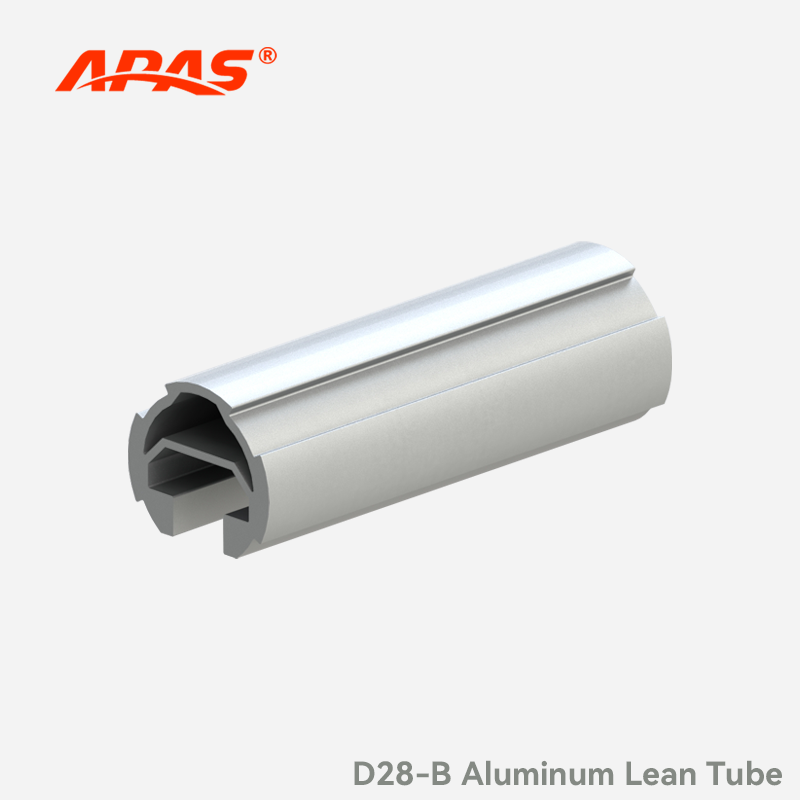

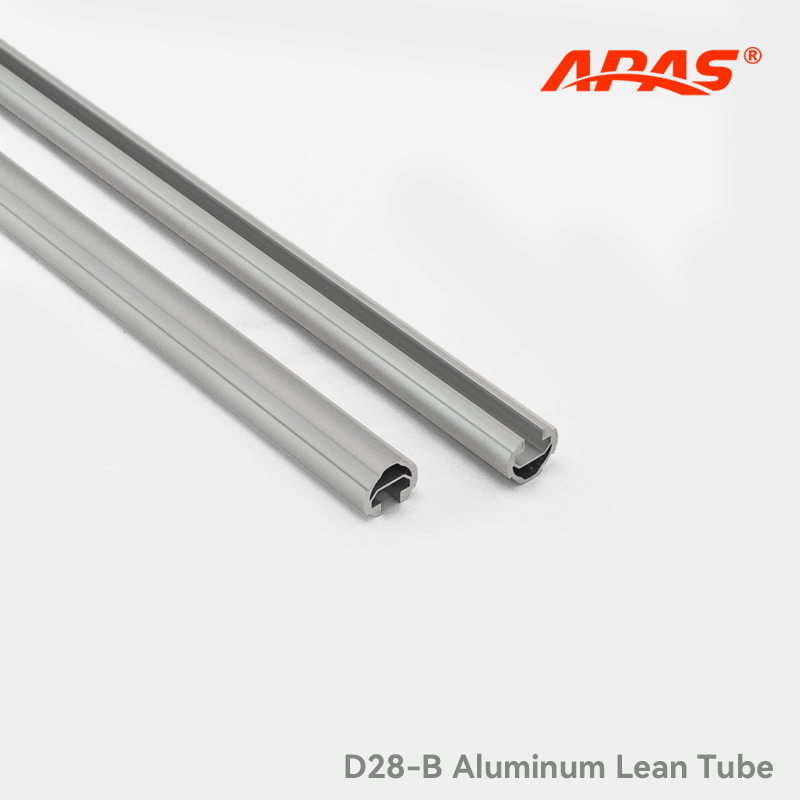

D28-B Aluminum Lean Tube

No.APAS-D28-B
D28-B Lean Tube is a functional type of 3rd generation lean tube. Same as standard D28-A lean tube, this type possesses special protrusions and grooves structure for assembling with other lean tubes and fittings.

What sets the D28-B apart from standard type is the specially designed bottom T-slot, which allows casters, leveling feet, or other base components to be installed without welding or drilling, making it ideal for shelves, mobile material carts and more other conditions.
No.
APAS-D28-B
Material
6063-T5 Aluminum Alloy
Outer Diameter
φ28 mm
Wall Thickness
1.5 mm
Max Length
6 m per piece
Manufacturing Process
Extrusion
GET A QUOTE
Description

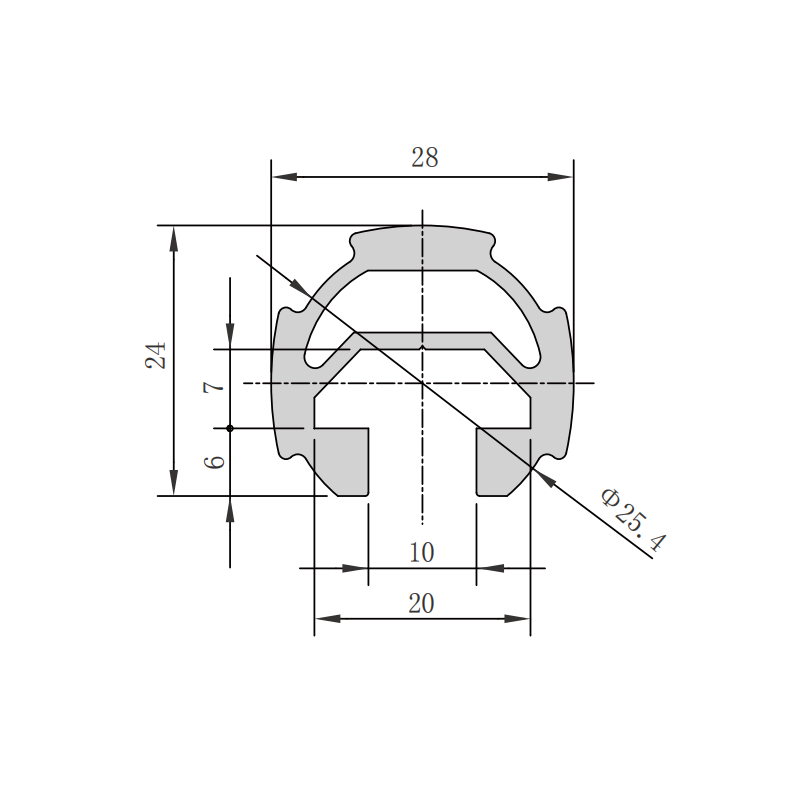

Profile No. D28-B
Material 6063-T5 Aluminum Alloy
Outer Diameter φ28 mm
T-slot Size 10 mm
Color Plain
Weight per Meter 0.66 kg/m
Max Length 6 m per piece
Manufacturing Process Extrusion
Surface Treatment Process Sandblasting, Anodizing

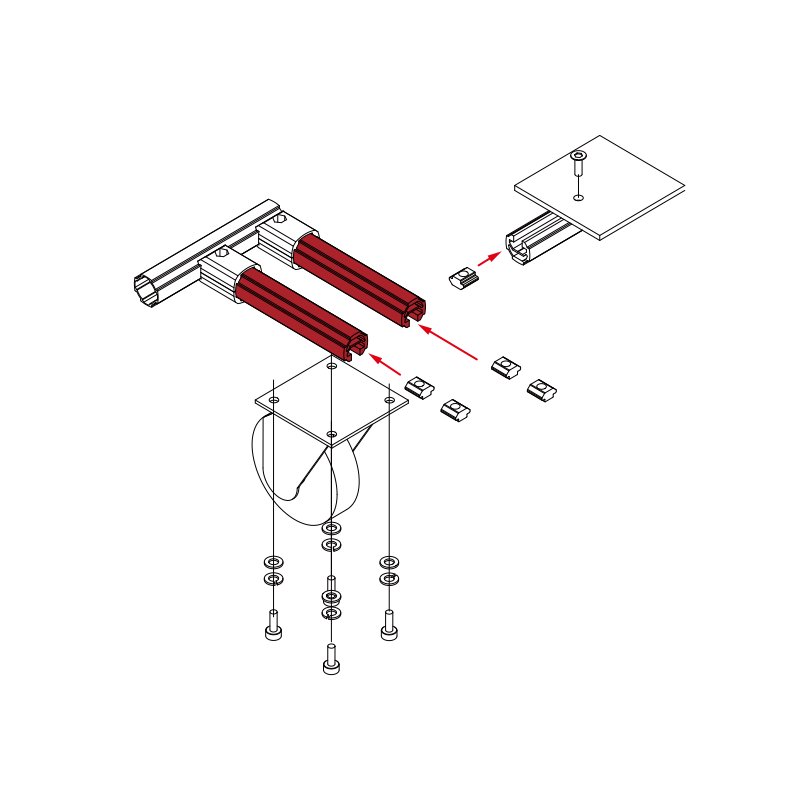

This lean tube has a 10mm T-slot at the bottom, which is similar to that of square aluminum profiles. This allows it to be connected and secured to feet or casters using T-nuts and bolts, so it's typically installed at the bottom of the main structure.
