P8-4040-1N

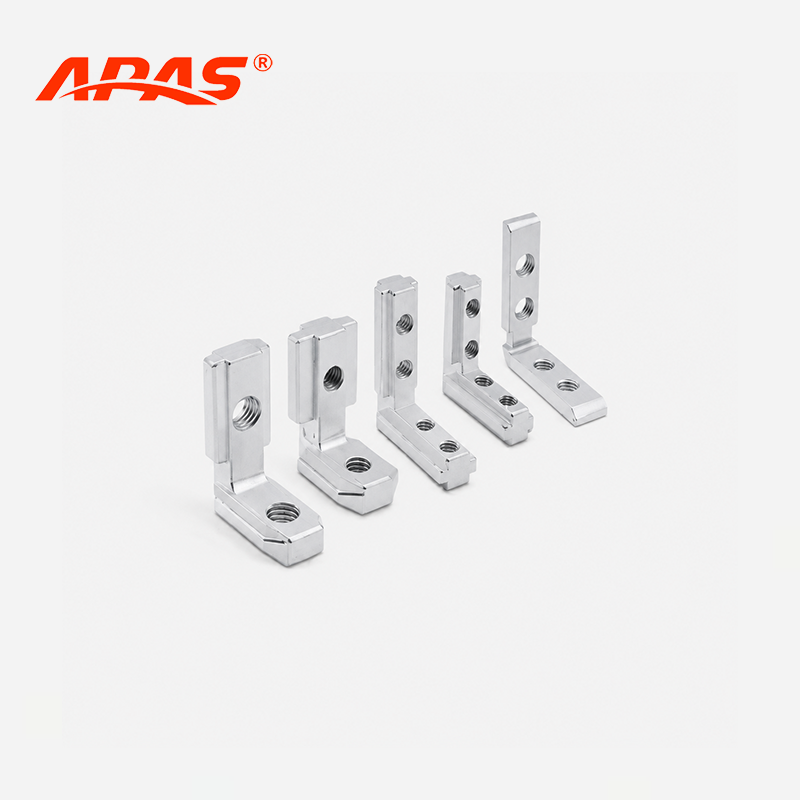

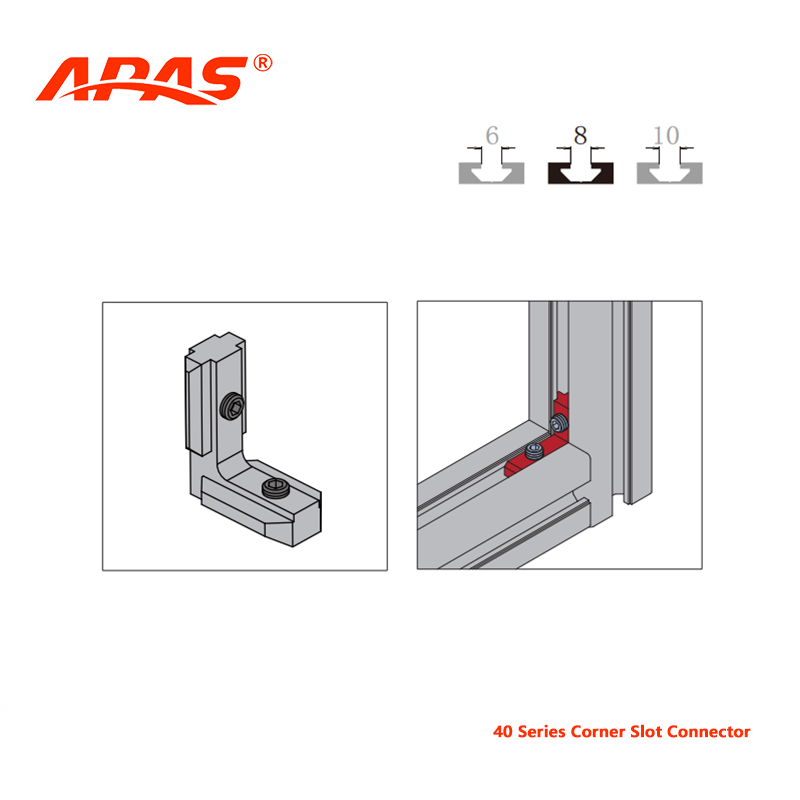

Corner Slot Connector is a right-angle fastening component designed for industrial aluminum extrusion framing systems. It connects two aluminum profiles at 90° angles by inserting both ends into the profile grooves and securing them with locking screws for a strong and stable assembly.
Available for 20, 30, 40, 45 and 50 series aluminum profiles, this connector series is manufactured from high-quality carbon steel or aluminum alloy. With a compact design, easy installation and reliable connection performance, it is widely used in machine frames, safety guarding systems, workstations and modular aluminum structures.
Product Specifications
| Product Series | Profile Type | Screw Size | Material | Order Number |
|---|---|---|---|---|
| 20 Series Corner Slot Connector | P6 | M4 | Carbon Steel | CE-IB2527-M4-6-20 |
| 30 Series Corner Slot Connector | P8 | M6 | Carbon Steel / Aluminum Alloy | CE-IB3137-M6-8-30 |

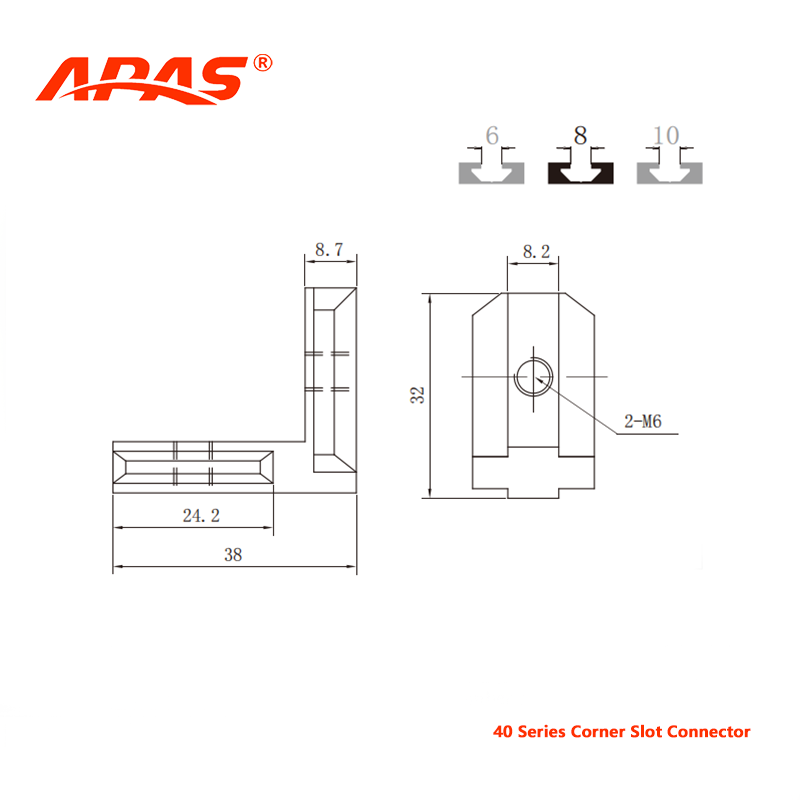

| 40 Series Corner Slot Connector | P8 | M6 | Aluminum Alloy / Carbon Steel | CE-IB3238-M6-8-40 |
| 45 Series Corner Slot Connector | P10 | M8 | Carbon Steel / Aluminum Alloy | CE-IB3238-M8-10-45 |
| 50 Series Corner Slot Connector | P8 | M6 | Aluminum Alloy / Carbon Steel | CE-IB3238-M6-8-40 |
