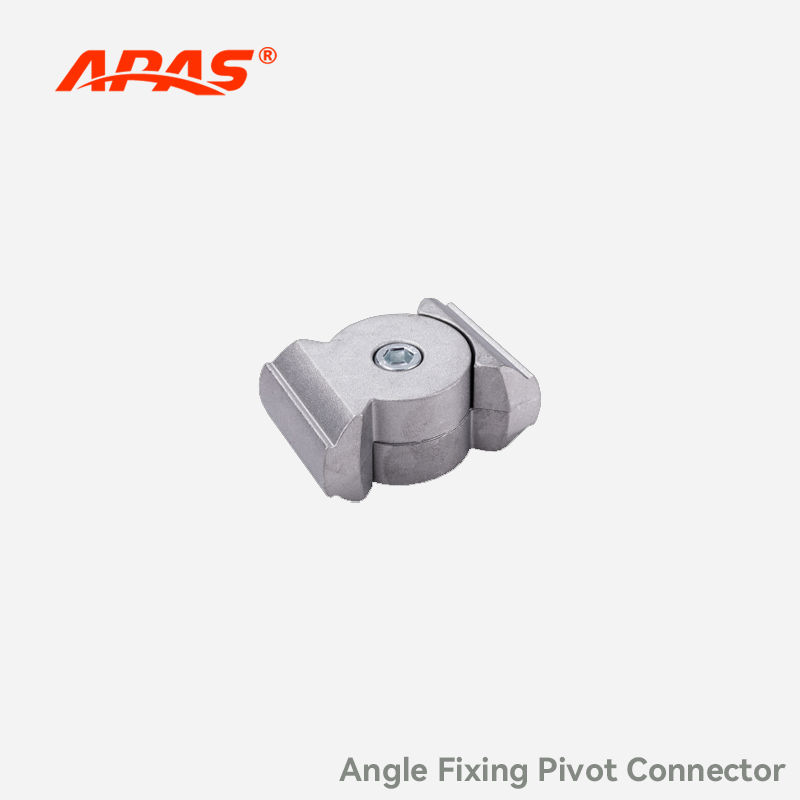

  • Lightweight aluminum alloy angle fixing pivot connector (68.1g) for modular structural design

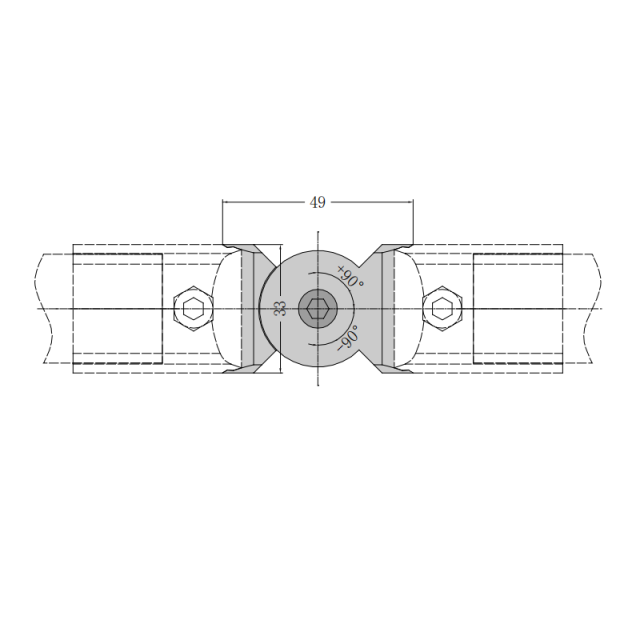

  • 2D dimension and specification drawing of the aluminum pivot connector showing a 49mm length and ±90 degree adjustable angle

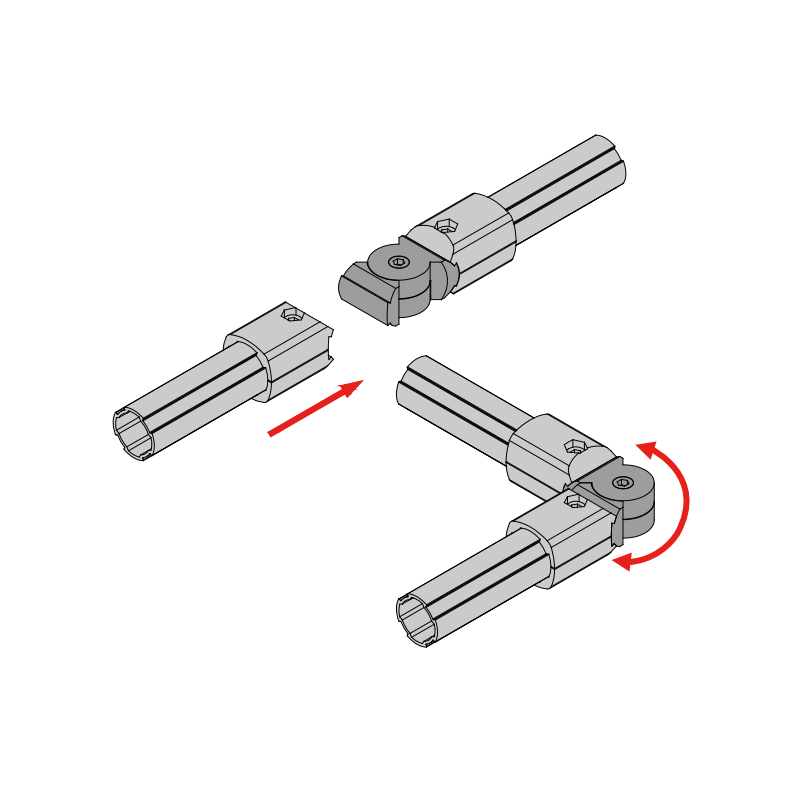

  • Assembly diagram showing angle fixing pivot connectors inserted into lean tubes to form specific geometric structures
  • Lightweight aluminum alloy angle fixing pivot connector (68.1g) for modular structural design
  • 2D dimension and specification drawing of the aluminum pivot connector showing a 49mm length and ±90 degree adjustable angle
  • Assembly diagram showing angle fixing pivot connectors inserted into lean tubes to form specific geometric structures

Angle Fixing Pivot Connector

No.APAS.D28.JT.X180
  • Standardized locking groove design compatible with standard lean pipes
  • Secured with screws and nuts, offering easy disassembly and high reusability
  • Constructed from lightweight, corrosion-resistant aluminum alloy for durability.
  • Used for product design from any angle, multiple combinations can form specific geometric structures;
No.
APAS.D28.JT.X180
Material
Aluminum Alloy
Weight
68.1 g
Applicable Tube
28 mm Lean Tube
Manufacturing Process
Die-casting, Sandblasting
GET A QUOTE
Description
  • Lightweight aluminum alloy angle fixing pivot connector (68.1g) for modular structural design
  • 2D dimension and specification drawing of the aluminum pivot connector showing a 49mm length and ±90 degree adjustable angle
  • Assembly diagram showing angle fixing pivot connectors inserted into lean tubes to form specific geometric structures
