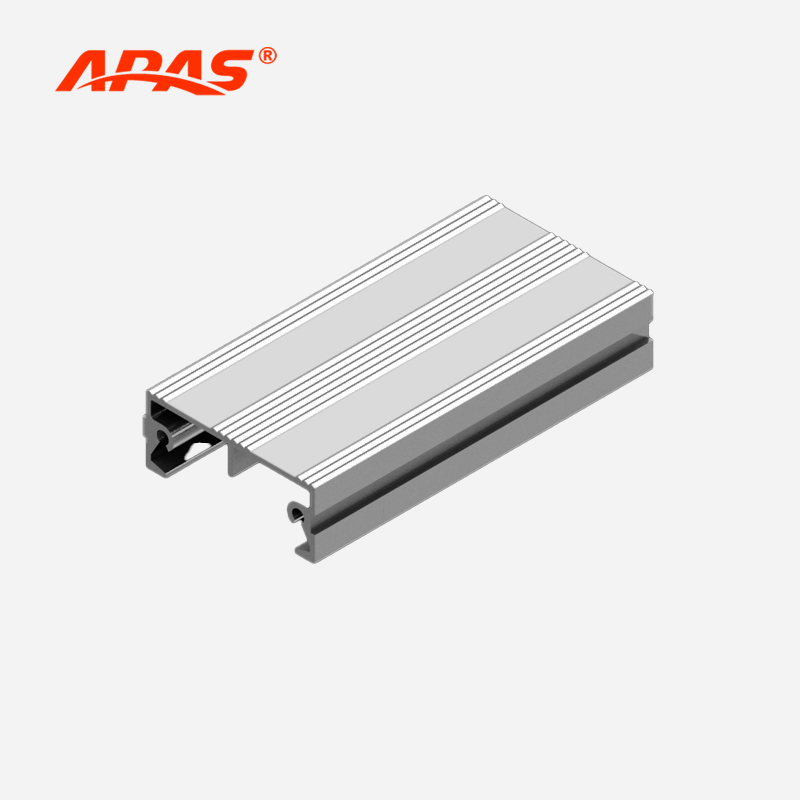

  • 40×100 mm aluminum step profile with anti-slip surface for stair treads

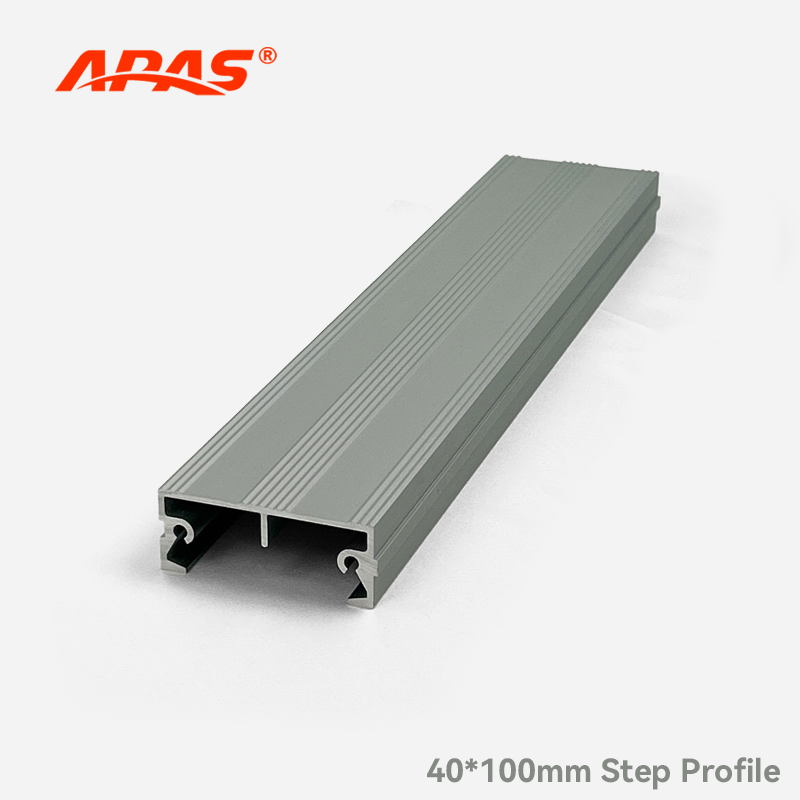

  • 40×100 mm step profile for stairway platform systems and industrial ladders

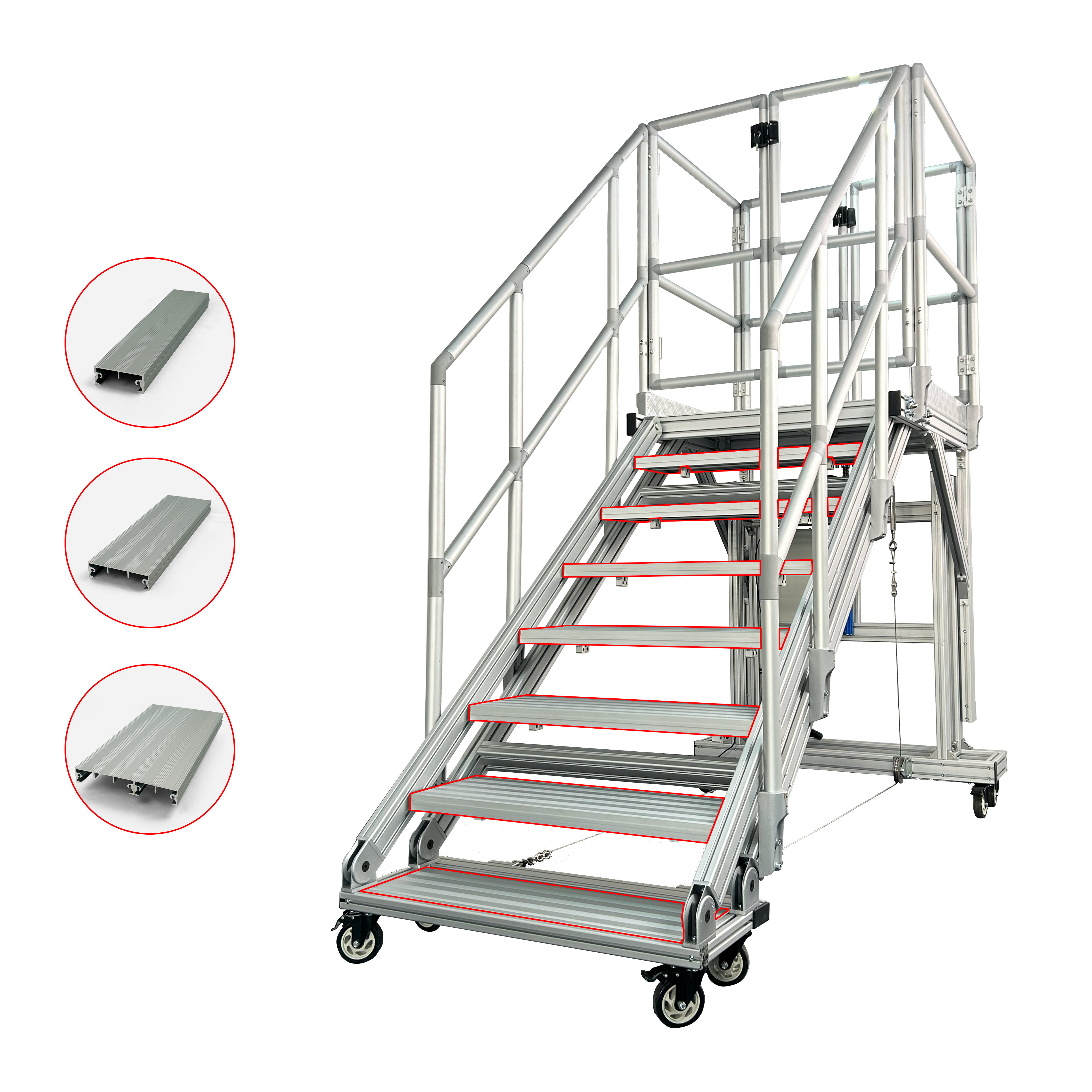

  • 40×100 mm anti-slip step profile installed on modular stairway platform system
  • 40×100 mm aluminum step profile with anti-slip surface for stair treads
  • 40×100 mm step profile for stairway platform systems and industrial ladders
  • 40×100 mm anti-slip step profile installed on modular stairway platform system

40*100 mm Step Profile

No. TB40.100
  • Special profile for treads, compatible with 150mm step profile
  • Designed for stairway platform system and ladders
  • Connected and secured by screws and nuts
  • Anti-slip Pattern to Reduce Risk
  • Sandblasting and anodizing to enhance oxidation resistance
Profile No.
TB40.100
Material
6063-T5 Aluminum
Dimensions
40*100 mm
Color
Plain
GET A QUOTE

  • Description

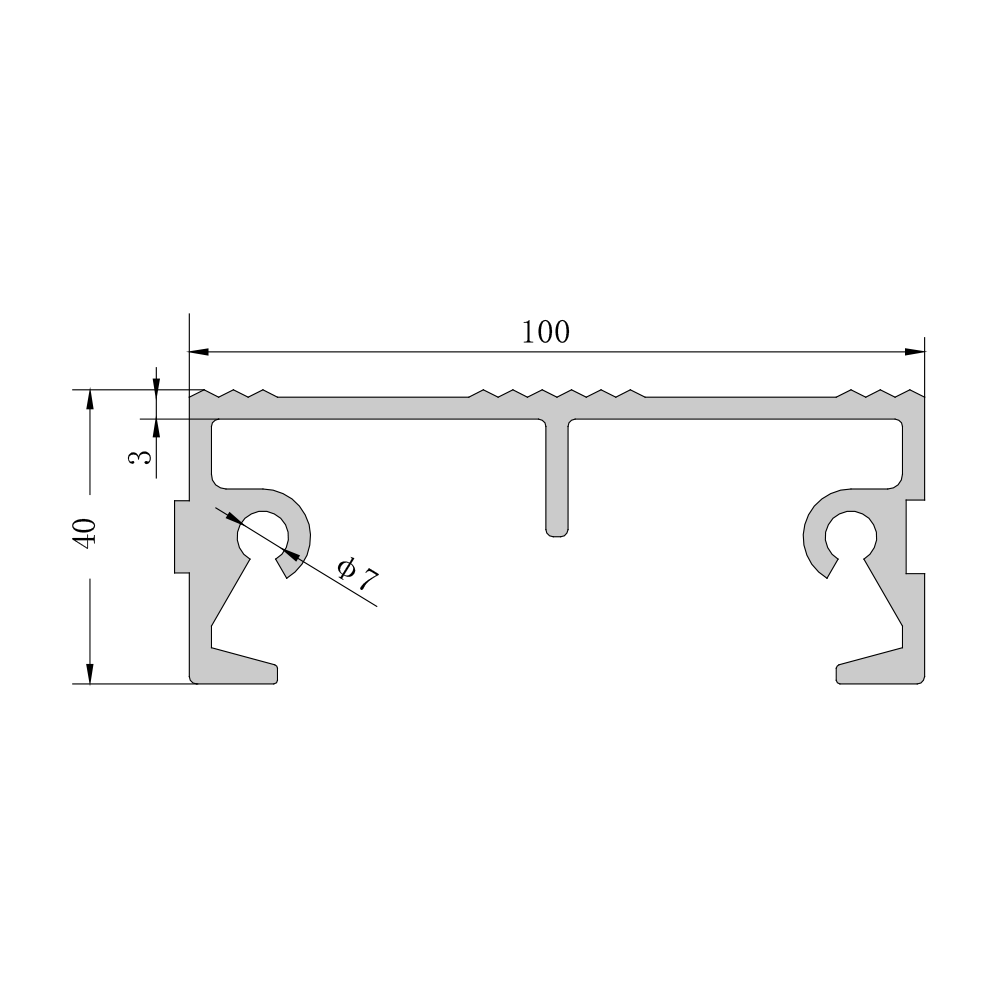

  • Section Diagram

The 100 mm step profile measures 40*100 mm and can be combined with 150 mm step profile to form step treads. Its surface features anti-slip pattern to reduce the slipping risk.
The 100 mm step profile is manufactured from aluminum alloy and finished with sandblasting and anodizing, offering a excellent oxidation resistance.
Profile No. TB40.100
Material Aluminum Alloy
Dimensions 40 mm*100 mm
T-slot Size 8.2 mm
Color Plain
Weight per Meter 2.925 kg/m
Moment of Inertia Ix 15 cm⁴
Moment of Inertia Iy 342 cm⁴
Section Modulus Wx 16.8 cm³
Section Modulus Wy 52.5 cm³
