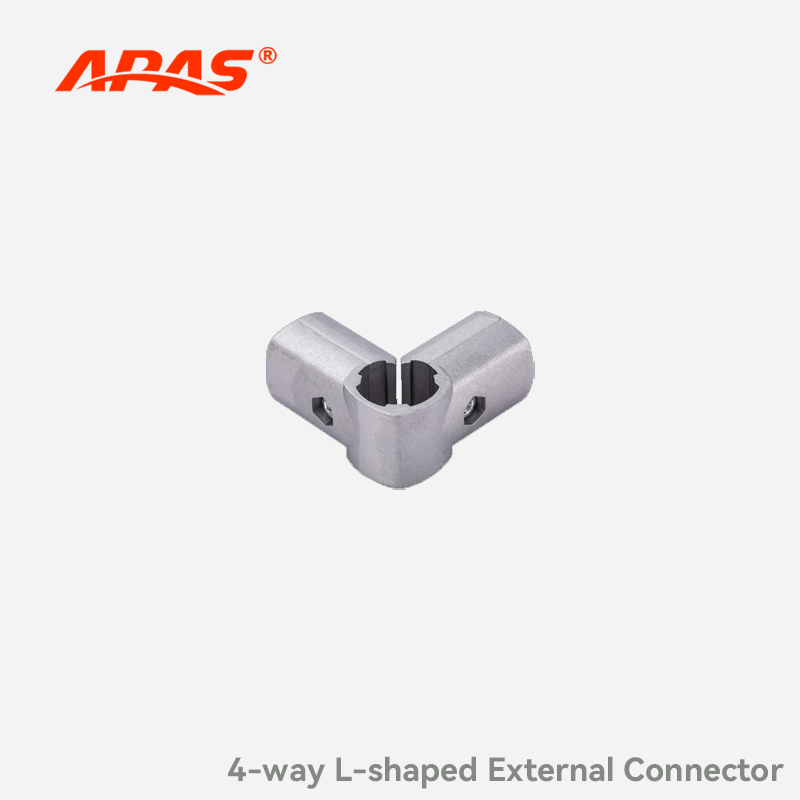

  • APAS 4-way L-shaped External Connector, Heavy Duty Metal Outer Joint for Round Lean Pipe Build Industrial Workstations & Storage Racks

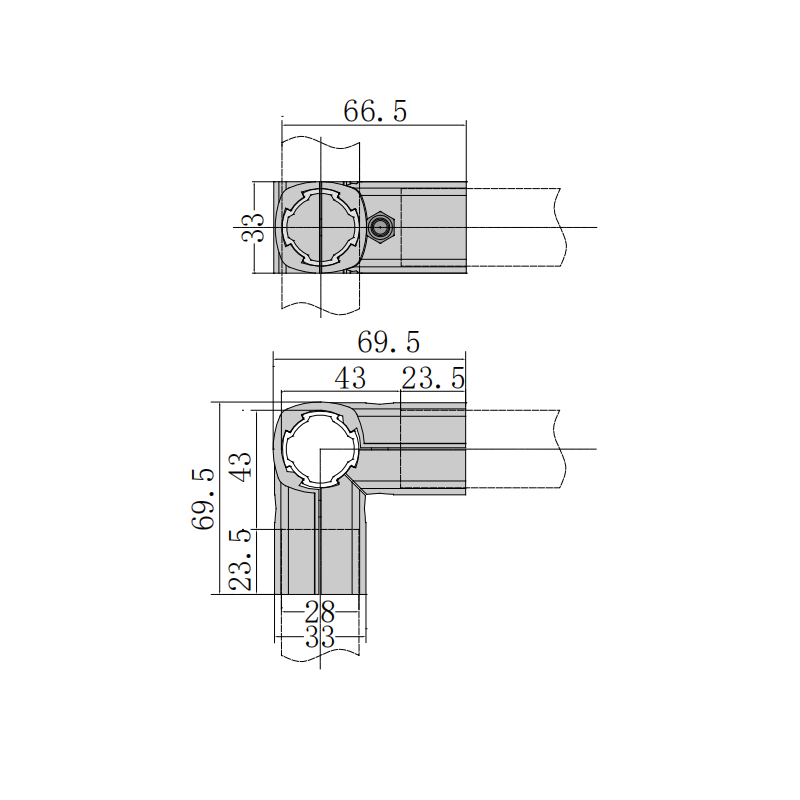

  • Integrated lean pipe connector technical drawing for vertical structure and 90 degree modular pipe rack frame assembly

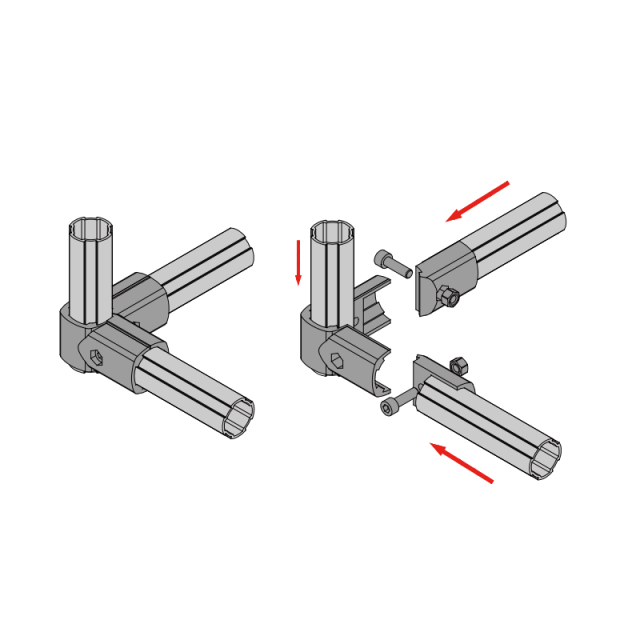

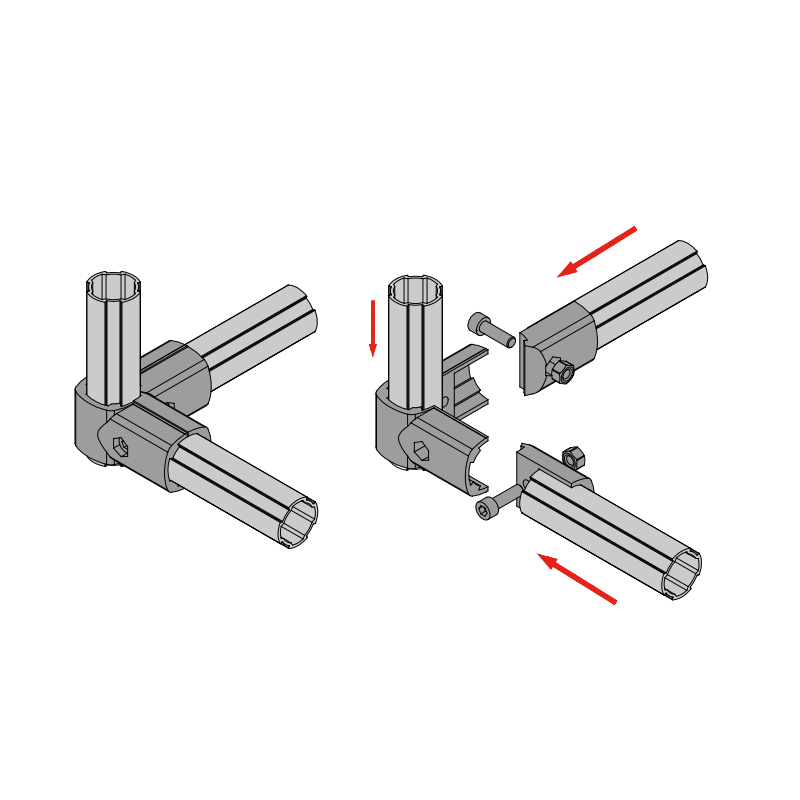

  • Integrated lean tube joint for vertical pipe racking and 90 degree corner frame connection with higher rigidity and load capacity
  • APAS 4-way L-shaped External Connector, Heavy Duty Metal Outer Joint for Round Lean Pipe Build Industrial Workstations & Storage Racks
  • Integrated lean pipe connector technical drawing for vertical structure and 90 degree modular pipe rack frame assembly
  • Integrated lean tube joint for vertical pipe racking and 90 degree corner frame connection with higher rigidity and load capacity

4-way L-shaped External Connector

No.APAS.D28.JT.V
  • 90° external-clamp elbow for 28mm lean tubes, right-angle connections without pre-assembly
  • Precision grooves deliver a secure, vibration-resistant fit
  • Bolted design enables quick assembly, disassembly, and reuse
  • Aluminum alloy construction enhances frame rigidity and load capacity
No.
APAS.D28.JT.V
Material
Aluminum Alloy
Weight
131.3 g
Applicable Tube
28 mm Lean Tube
Manufacturing Process
Die-casting, Sandblasting
GET A QUOTE
Description
  • APAS 4-way L-shaped External Connector, Heavy Duty Metal Outer Joint for Round Lean Pipe Build Industrial Workstations & Storage Racks
  • Integrated lean pipe connector technical drawing for vertical structure and 90 degree modular pipe rack frame assembly
  • Integrated lean tube joint for vertical pipe racking and 90 degree corner frame connection with higher rigidity and load capacity
