Lean Tube vs Aluminum Profile: Key Differences & Applications

By APAS October 10th, 2026 88 views

Lean Tube vs Aluminum Profile: An Engineering Selection Guide

Material choice is the least important part of this decision. Section stiffness, joint behaviour and span geometry decide whether your frame holds tolerance — and those three are quantifiable. This guide gives you the material data, the joint mechanics, and a worked deflection calculation you can reproduce for your own frame.

6063-T5 Section Properties Deflection T-Slot Joints Modular Framing

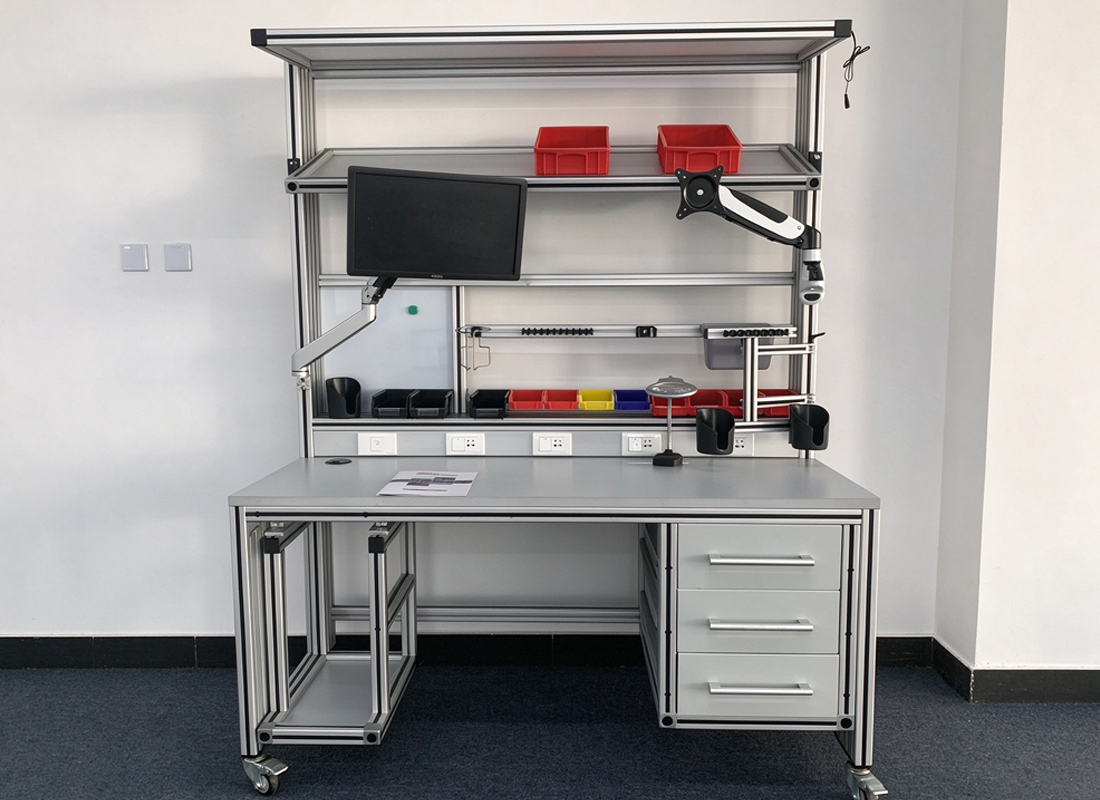

APAS Lean Tube vs Aluminum Profile comparison chart showing modular framing span and joint stiffness
Modular framing in service: span, joint type and bracing determine real-world stiffness more than material name.

1. The 30-Second Answer

If you only read one block, read this one. Each recommendation below is expanded with data in the sections that follow.

Choose by what you are actually building
Lean tube wins

Light-duty, frequently reconfigured

Flow racks, WIP stands, hand carts, kitting trolleys, temporary line-side storage. Short spans, modest distributed loads and layouts that are frequently reconfigured. Verify allowable load from the actual tube, connector and support configuration.

Aluminum profile wins

Equipment frames & anything with a tolerance

Machine bases, automation guarding, robot pedestals, test rigs, metrology stations, enclosures with panels or doors. Where you need mounting faces, cable routing, repeatable geometry, or a datum surface.

Either works

Workstations & assembly benches

Both are viable. Decide on accessory ecosystem instead: if you need ESD surfaces, bins, document holders and monitor arms that clip onto the frame, the profile system's T-slot usually integrates them more cleanly.

THE SINGLE MOST USEFUL NUMBER IN THIS GUIDE
Using the illustrative section properties in Table 2, a light-duty 40×40 T-slot profile has roughly 2.5× the member bending stiffness (EI) of an Ø28 × 1.2 mm steel lean tube — even though steel's elastic modulus is about 3× that of aluminium. Section geometry wins, not the material. Section 5 shows the calculation.

2. System Anatomy and Standard Sizes

Both systems are mechanically fastened and both are modular. What differs is the geometry you are joining, and therefore what a joint can transmit.

Drawn to a common scale — 1 mm = 3.5 px Ø27.8 ± 0.2 mm steel wall t = 1.2 mm PE / ABS coating ~0.5 mm LEAN TUBE Thin-wall round section 40 mm 40 slot width 8 mm central bore for M8 / M10 T-SLOT PROFILE 4040 Hollow multi-web section
Figure 1. Cross-sections at a common scale. The tube is a thin-wall ring — most of its material sits near the neutral axis, so it buys little bending stiffness. The profile pushes material to the outer fibre, which is exactly where bending stress acts. Coating thickness is exaggerated for legibility.

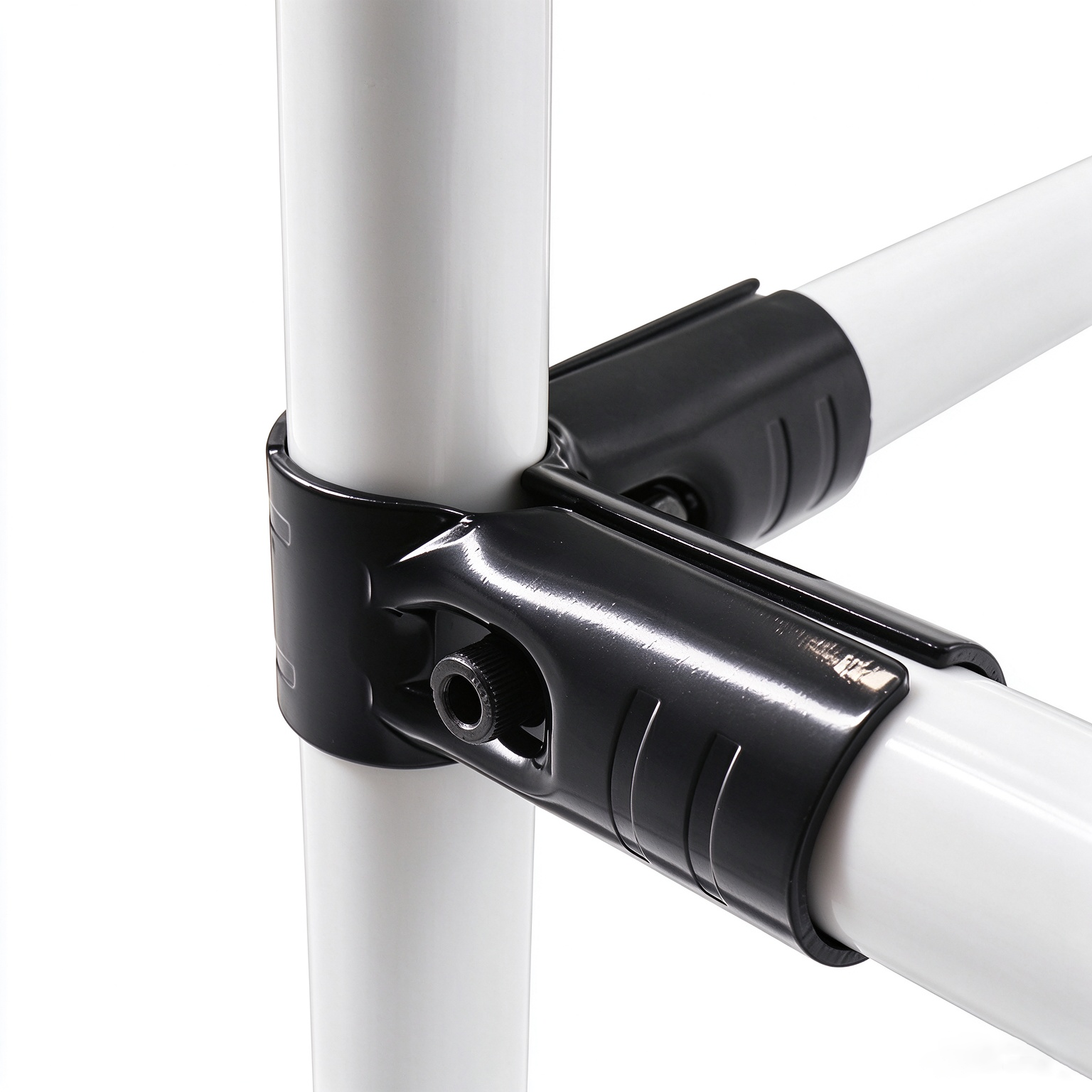

APAS 28mm coated steel lean tube system with dedicated metal connectors
Lean Tube System

Ø28 Tube + Dedicated Connectors

Standard nominal outer diameter is 27.8 ± 0.2 mm (universally called "28 mm"). Wall thickness is offered across a range, and this is the only structural variable most buyers overlook.

  • Wall thickness options: 0.7 / 0.8 / 1.0 / 1.2 / 1.5 / 2.0 mm
  • Common choice: 1.2 mm general duty, 2.0 mm heavy duty
  • Substrate: cold-rolled steel, PE or ABS coating (~0.5 mm)
  • Joining: clamp-type / grip-type connectors, bolted or cam-locked
  • Typical stock length: 4 m; cut on site

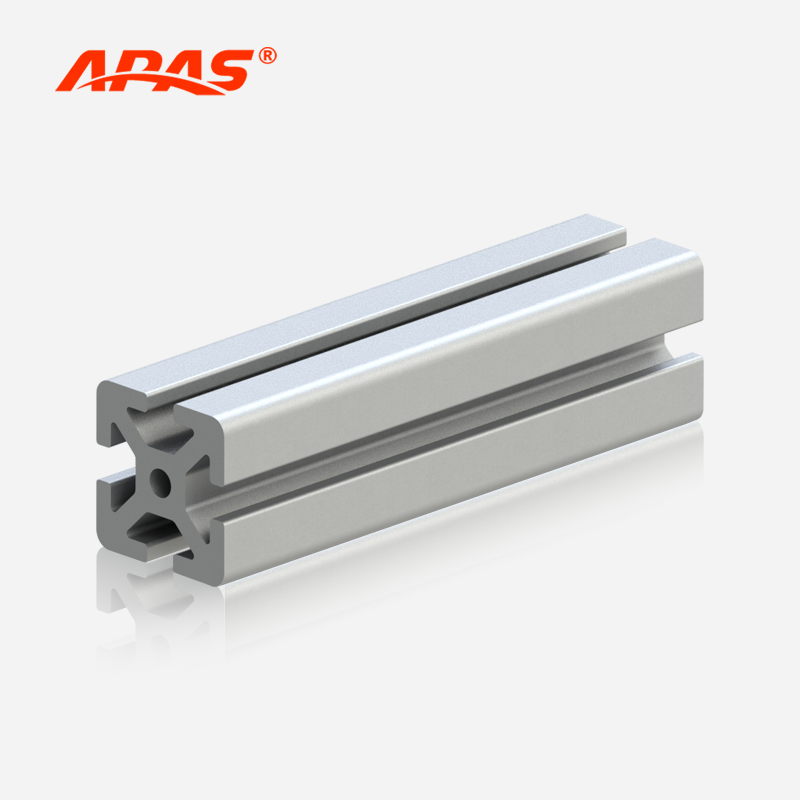

APAS 4040 metric T-slot aluminum extrusion profile and hardware system
T-Slot Profile System

Metric Extrusions + T-Slot Hardware

Series are named for the nominal section in millimetres. Slot width is the number that actually governs your fastener choice, and it is not always the same across a series.

  • Common series: 2020, 3030, 4040, 4080, 40120
  • Common slot widths include 8 mm (standard for 40 series) or 10 mm; confirm the exact slot and fastener series in the supplier drawing
  • Typical alloy/temper: 6063-T5; 6061-T6 or 6063-T6 for higher load
  • Finish: anodised (commonly AA10–AA15 class), or mill
  • Joining: T-nuts / sliding nuts, angle brackets, end fasteners, corner keys
Do not compare "load capacity" across brands

Two profiles both sold as "4040" can differ in wall thickness, web layout and corner radius — and therefore in second moment of area (Ix) by 30% or more. Published load tables are only valid for the exact extrusion they were calculated from. Section 8 lists what to request instead.

3. Material and Section Data

The table below is the part most comparison articles skip. These are the numbers the deflection formula in Section 5 needs.

Table 1 — Material properties relevant to frame design (typical / standard minimum values)
Property 6063-T5 aluminium Cold-rolled steel (lean tube) Why it matters
Density 2.70 g/cm³ 7.85 g/cm³ Aluminium frame is ~2.9× lighter at equal volume
Elastic modulus E ≈ 69 GPa ≈ 200 GPa Steel is ~2.9× stiffer per unit area — but E alone doesn't decide a frame
Tensile strength Rm ≥ 160 MPa ≈ 270–420 MPa Steel higher, but frame selection must check stiffness, strength, stability and joint capacity—not tensile strength alone
Yield strength Rp0.2 ≥ 110 MPa ≈ 180–235 MPa 6063-T6 (≥ 170 MPa) and 6061-T6 are the upgrade path
Elongation at break ≥ 8% ≈ 20–30% Steel tolerates local overload more gracefully
Thermal expansion ≈ 23.4 × 10−6/K ≈ 12 × 10−6/K A 3 m aluminium rail grows ~2.1 mm over a 30 K swing vs ~1.1 mm for steel
Thermal conductivity ≈ 200 W/(m·K) ≈ 50 W/(m·K) Relevant near heat sources; aluminium acts as a heat spreader
Corrosion behaviour Anodic film; self-passivating Depends entirely on coating integrity Coated steel can corrode where its coating is damaged; aluminium can also corrode in aggressive environments or with unsuitable chemical exposure

Aluminium values are standard minimum mechanical properties for 6063-T5 extrusions (commonly specified to GB/T 6892 / ASTM B221); steel figures are representative for cold-rolled sheet grades used in coated tube and vary by grade and work-hardening state. Always confirm against the mill certificate for your specific supply.

Table 2 — Computed section properties for common members
Member Second moment of area I Bending stiffness EI Relative
Ø28 × 1.2 mm steel tube 9,090 mm4 1.82 × 109 N·mm² 1.00× (baseline)
Ø28 × 2.0 mm steel tube 13,886 mm4 2.78 × 109 N·mm² 1.53×
4040 profile, aluminium (Ix = 6.5 × 104 mm4) 65,000 mm4 4.49 × 109 N·mm² 2.47×
4080 profile, aluminium (strong axis, indicative) ≈ 2.6 × 105 mm4 ≈ 1.8 × 1010 N·mm² ≈ 10×

Tube values computed from I = π(D4 − d4)/64 for a thin-wall ring. The 4040 value is illustrative, not universal; profile values must be replaced with your supplier's published section data before any design commitment — see Section 8.

Read Table 2 carefully — it overturns the usual assumption

Doubling the tube wall from 1.2 mm to 2.0 mm buys only 1.53× stiffness. Moving to a 4040 profile buys 2.47×. Section depth beats wall thickness, every time.

4. Joint Mechanics: Where the Real Difference Lives

Members rarely fail. Joints do. The two systems transfer load through fundamentally different mechanisms, and that dictates how each behaves after months of vibration and rework.

LEAN TUBE — CLAMP JOINT CLAMP BODY bolt preload friction grip Load path: tube → clamp friction → tube Slip resistance ∝ bolt preload × friction μ PROFILE — T-SLOT BRACKET JOINT T-nut slot wall bearing Possible load path: bracket → fastener / nut → slot and profile (joint-dependent) Slot engagement plus friction; performance is joint-dependent
Figure 2. The force path is different, so the failure mode is different. Tube clamps rely substantially on clamping friction; T-slot joint load paths depend on fastener preload, hardware geometry, bearing and friction. Schematic — connector geometries vary by manufacturer.
Lean Tube

Friction-Dependent Clamping

The connector grips the tube circumference. Resistance to rotation and slip depends on clamp design, bolt preload, contact geometry and friction between the connector and tube coating; verify the specific connector rating.

  • Failure mode: gradual rotation/sag under sustained load, especially with smooth PE coatings
  • Sensitive to: bolt relaxation, coating creep, repeated disassembly
  • Mitigation: re-torque on a schedule; specify knurled or matte tube finishes where available; add diagonal members
  • Advantage: infinitely positionable along the tube — no hole pattern to work around
Aluminum Profile

Positive Mechanical Engagement

A T-nut or sliding nut seats in the slot. Depending on the joint and load direction, loads may be carried through bolt preload and friction, bolt shear, nut-to-slot bearing, or a combination. Use the manufacturer's ratings.

  • Failure mode: slot-wall deformation or bolt shear at overload — usually visible and progressive
  • Sensitive to: correct nut/series match, bolt grade, torque, slot condition after rework
  • Mitigation: use end fasteners or corner keys for rigid corners; verify nut series matches slot width
  • Advantage: accessories mount anywhere along the slot without drilling

5. Deflection: How to Size a Span

This is the calculation that decides the purchase. It takes four inputs and a calculator. Worked example included, with every intermediate value shown so you can check it.

undeformed δmax w (N/mm, uniformly distributed) L = span (mm)
Figure 4. The model used throughout this section: a simply supported member under uniformly distributed load — the standard case for a flow-rack shelf or a horizontal frame rail.
δmax  =  5 W L³ ÷ (384 · E · I) Simply supported beam, uniformly distributed load  •  δmax = mid-span deflection (mm)  •  W = total distributed load (N)  •  L = span (mm)  •  E = elastic modulus (MPa)  •  I = second moment of area (mm4)
Table 3 — Other common cases
Case Max deflection Typical use
Simply supported, UDL 5 W L³ / (384 E I) Shelf rail, horizontal frame member
Simply supported, central point load F F L³ / (48 E I) Concentrated load at mid-span
Cantilever, end point load F F L³ / (3 E I) Overhanging arm, bracket
Cantilever, UDL W L³ / (8 E I) Loaded outrigger
Worked example — 1,200 mm shelf rail carrying 100 kg uniformly
Span L1,200 mm
Total distributed load W (100 kg × 9.81)981 N (rounded to 1,000 N below)
Allowable deflection, general industrial frame (L/200)6.00 mm
Allowable deflection, equipment / automation frame (L/300)4.00 mm
4040 aluminium profile — EI = 4.49 × 109 N·mm²δ ≈ 5.02 mm — passes L/200, but not L/300
Ø28 × 1.2 mm steel tube — EI = 1.82 × 109 N·mm²δ = 12.38 mm  ×  fails L/200
Ø28 × 2.0 mm steel tube — EI = 2.78 × 109 N·mm²δ = 8.10 mm  ×  still fails L/200
Ø28 × 1.2 mm steel tube with a mid-span support (L = 600 mm)recalculate using the actual load split and support model
What this proves. Thickening the tube from 1.2 mm to 2.0 mm did not rescue the span — deflection only fell from 12.4 mm to 8.1 mm, still over the 6 mm limit. An intermediate support shortens the effective span and can greatly reduce deflection. The exact result depends on the load split and support conditions. For uniform load intensity, ideal beam deflection scales with L4; for a fixed total load, it scales with L3. Verify the support model before using a calculated value.
Design rule of thumb

For the same uniformly distributed load per unit length, halving the span reduces ideal elastic deflection to about 1/16. For a fixed total load split between shorter spans, the ratio differs. Assess span, supports, joints and bracing before changing material.

Scope limits: This is elastic beam theory for a single member. It does not cover joint slip (which usually dominates real rack deflection), local buckling of thin walls at load points, dynamic or impact loading, or frame racking from insufficient bracing. For a safety-critical, overhead, or personnel-supporting structure, use a qualified engineer and apply the applicable safety factors and standards.

6. Full Technical Comparison

Every row is a design decision you will actually have to make, not a marketing attribute.

Factor Lean Tube System Aluminum Profile System
Typical member Ø27.8 mm tube, 1.2 mm wall, PE-coated steel 4040 / 4080 extrusion, 6063-T5, anodised
Section stiffness (relative) 1.0× baseline (EI ≈ 1.8 × 109 N·mm²) ≈2.5× for 4040; ≈10× for 4080 strong axis
Joint mechanism Clamp friction on tube circumference Bolt shear + slot-wall bearing (positive engagement)
Joint repeatability Degrades with re-torque cycles and coating creep Geometry-defined; more repeatable after rework
Positional freedom Infinitely adjustable along the tube axis Adjustable along slots; fixed by hole pattern on brackets
Unit weight Lower per metre of member Heavier member, but fewer members needed for equal stiffness
Accessory mounting Requires clamps or drilled brackets T-slot accepts nuts, panels, hinges, sensors, cable duct
Panel / enclosure integration Poor — no native panel capture Native: panels drop into slots or use clip gaskets
Corrosion resistance Dependent on coating integrity; rusts if scratched Anodic film; suitable for washdown and humid areas
ESD / cleanroom suitability Limited by coating options ESD-rated accessories are available; grounding and surface resistance must be verified
Reconfiguration speed Fast — no hole alignment, cut tube to length Moderate — slot alignment and bracket orientation matter
Typical capex Lower initial component cost Higher per part; often lower total when fewer parts are needed
Best-fit duty Light load, short span, layout changes often Stiffness-critical, tolerance-critical, equipment-integrated

Comparisons are indicative of typical industrial product classes. Section properties vary by manufacturer and by exact extrusion geometry. Confirm against your supplier's data before design commitment.

7. Recommendations by Application

Each card identifies the better-suited system for a specific application and explains why. Where both systems are viable, we explain the trade-offs.

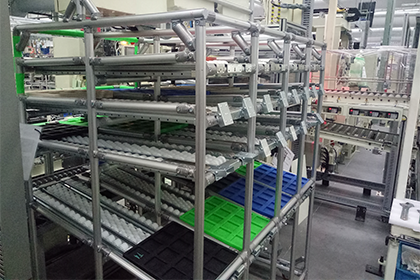

APAS Lean tube flow racks and material handling workstations for industrial assembly
Lean tube

Flow Racks & WIP Stands

Short spans, distributed loads, frequent layout change, no tight tolerances. Use short spans or add intermediate supports as required. Confirm capacity using the actual tube, connector and support configuration.

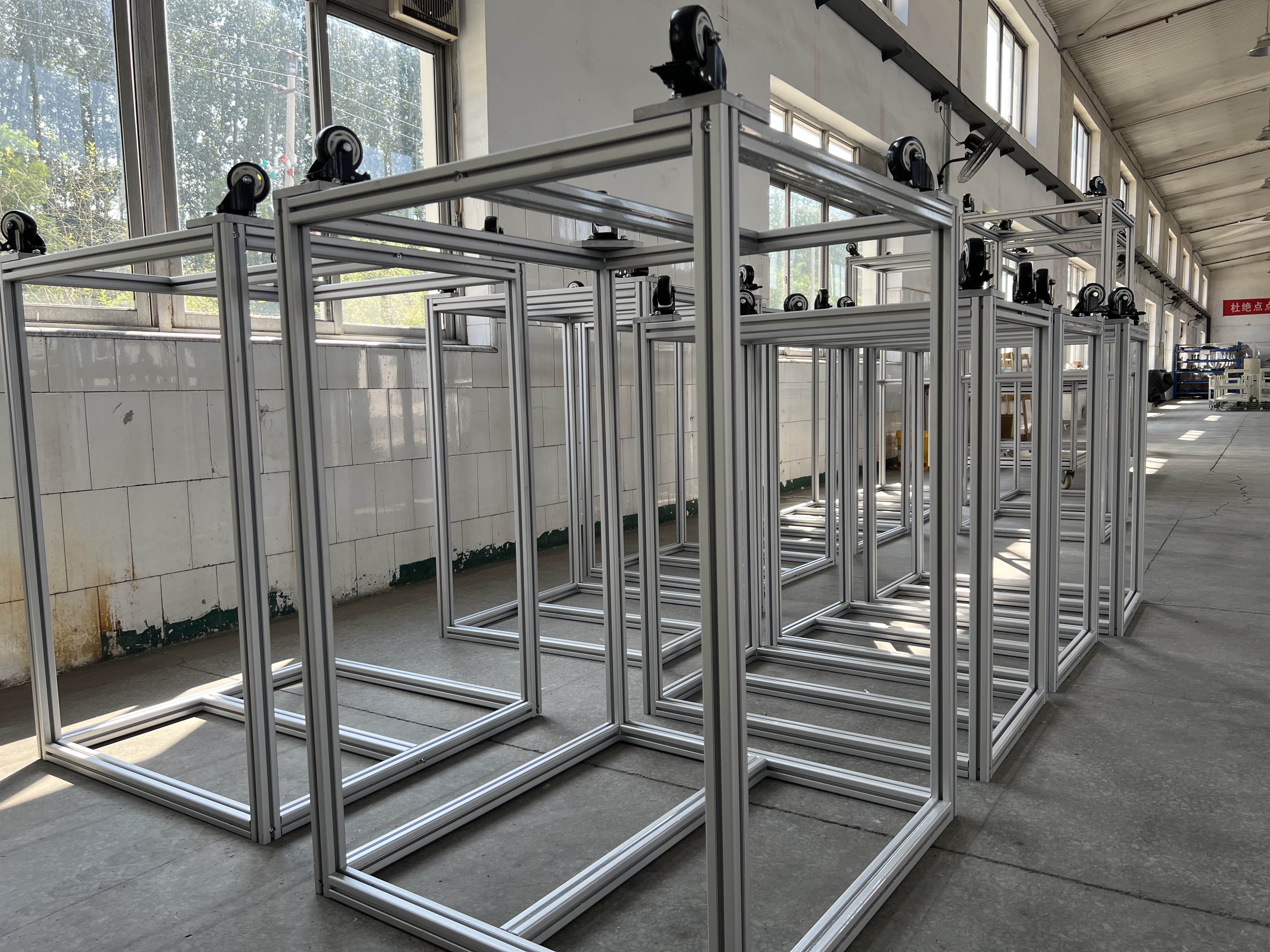

APAS Heavy duty aluminum profile machine bases and structural frames
Aluminum profile

Machine Bases & Frames

Needs flat mounting faces, repeatable geometry, and stiffness under dynamic load. The T-slot gives you datum surfaces and cable routing that tube cannot.

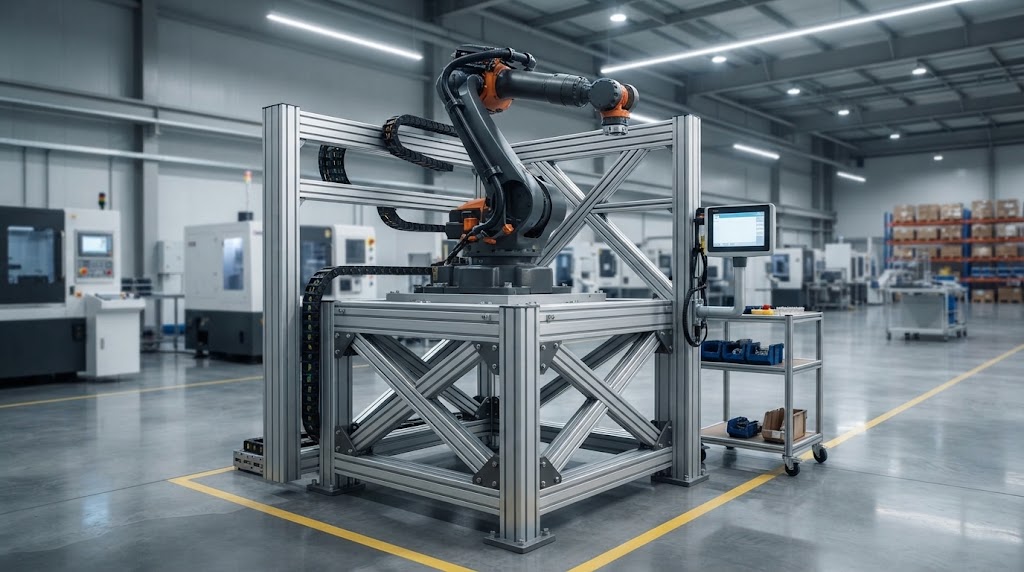

APAS Aluminum profile automation and robotic pedestals for industrial lines
Aluminum profile

Automation & Robot Pedestals

Robot reaction loads and cycle vibration punish friction-dependent joints. Positive-engagement joints plus braced profile frames hold alignment far better.

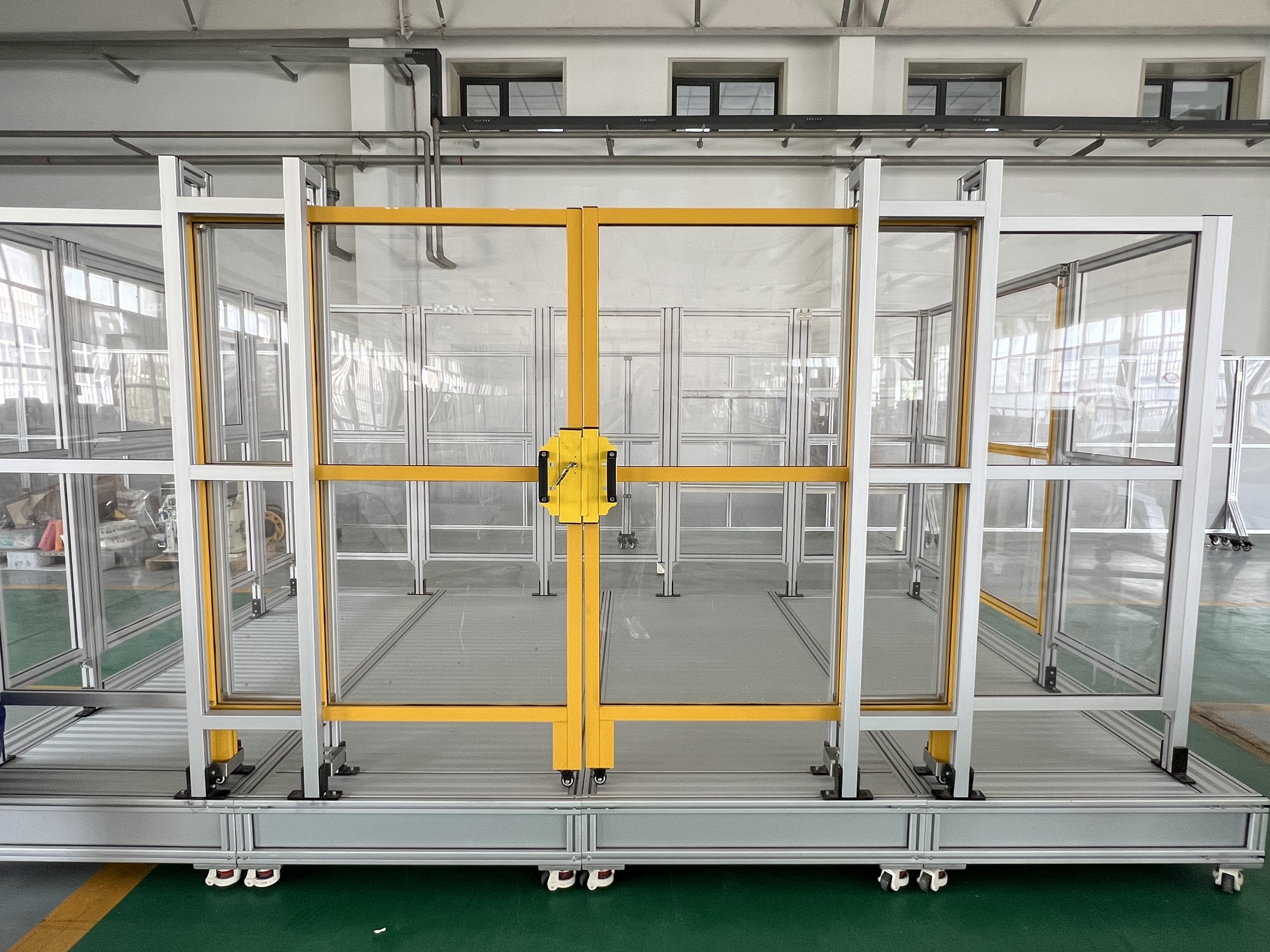

APAS Safety guarding and mesh enclosures built with T-slot aluminum extrusions
Aluminum profile

Safety Guarding & Enclosures

Panels, doors, interlock switches and mesh all need a capture feature. Slots provide it natively. Guarding must still be validated against the applicable machinery safety requirements.

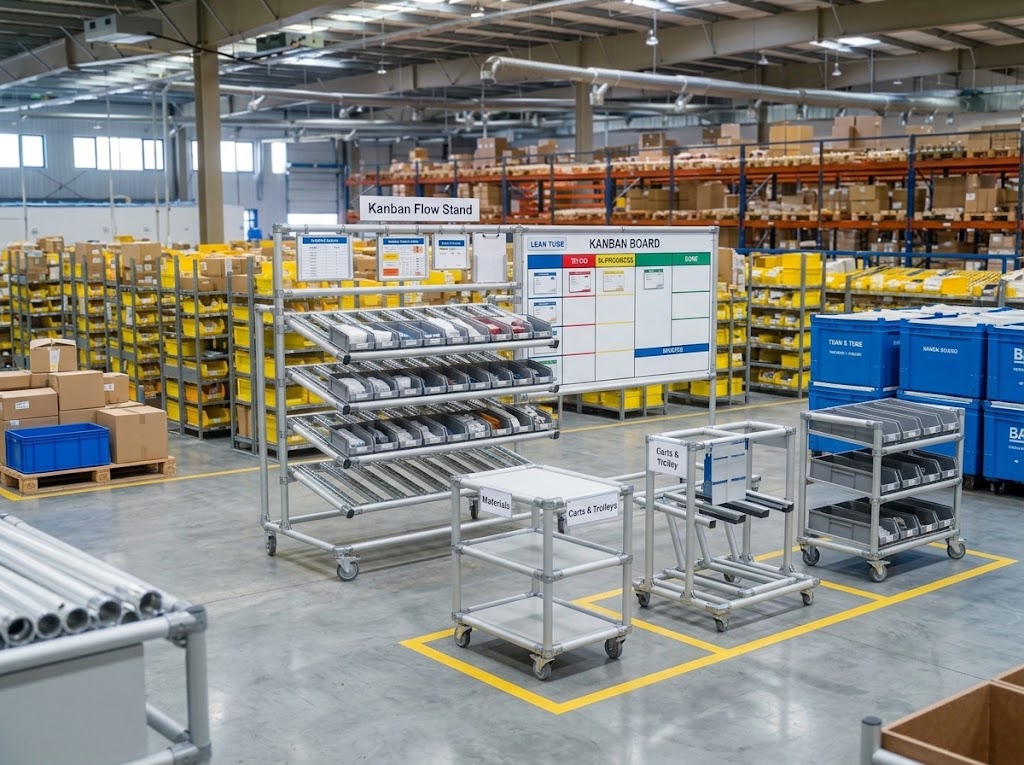

APAS Lean tube carts, mobile trolleys and Kanban stands in smart warehouse
Lean tube

Carts, Trolleys & Kanban Stands

Mobile, light, re-tasked constantly. Low inertia matters when an operator pushes it, and castor mounting is straightforward.

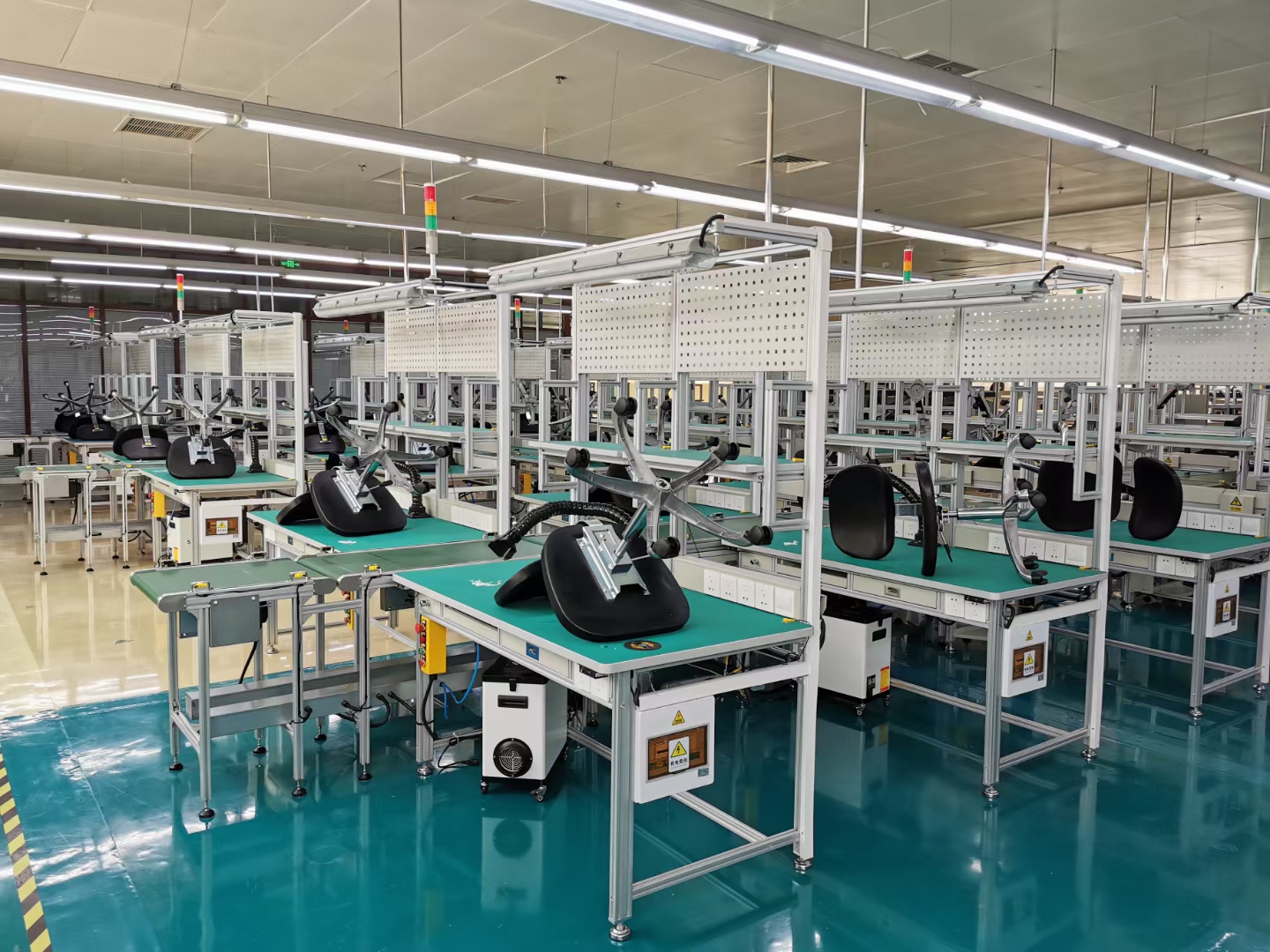

APAS Aluminum profile ESD safe workstations for electronics assembly
Aluminum profile

ESD & Electronics Assembly

Profile systems offer ESD-rated accessories, but anodised aluminium oxide is electrically resistive. ESD performance and grounding must be designed and verified using suitable conductive components and an approved grounding path.

On workstations generally: both systems build a perfectly serviceable bench. Choose on the accessory ecosystem (ESD tops, bin rails, monitor arms, lighting) and on whether the bench will later need to carry equipment. If it might, start with profile — retrofitting stiffness later costs more than specifying it now.

8. The 6-Point Practical Procurement Checklist

Include these checkpoints in your next RFQ. A reliable supplier should easily provide these practical specifications for profiles, lean tubes, and finished racks.

  1. Wall Thickness & Material Grade (e.g., 6063-T5)Ensure true-to-spec manufacturing. Check whether the aluminium profile or lean tube wall thickness matches your structural durability needs.
  2. Mass per Metre (kg/m) & Weight SpecificationsWeight directly dictates material cost, shipping fees, and manual handling ease. Compare actual per-metre weights rather than just nominal titles.
  3. Surface Finish & Coating IntegrityLook for high-grade anodising (for profiles) or durable PE/ABS coatings (for lean tubes) to ensure long-term corrosion and wear resistance.
  4. Practical Load Capacity & Span GuidelinesAsk for recommended working loads and span limits based on your application type (e.g., workstations, flow racks, or machine frames).
  5. Connector & Hardware CompatibilityEnsure connectors, clamp joints, or T-slot hardware fit securely without slipping, loosening, or requiring excessive rework.
  6. Customization & Pre-Assembly SupportCheck if the supplier offers on-demand cutting, pre-cut kits, or pre-assembled finished racks to save your on-site installation time.
Procurement Tip: Look Beyond the Lowest Unit Price

A cheaper quote often means thinned-out walls or lower alloy grades. Verifying wall thickness, surface coating, and hardware compatibility ensures your frame stays rigid and safe over years of operation.

APAS Modular Solutions

9. Aluminum Lean Tube: The Hybrid Option

There is a third answer, and for many plants it is the right one. Aluminium lean tube keeps the Ø28 form factor and the connector logic of a lean tube system, but substitutes a 6063-T5 anodised aluminium tube with a T-slot geometry.

In practice this means you keep the workflow-oriented, easy-to-reconfigure character of a lean tube build, while gaining corrosion resistance, a cleanable surface, and T-slot accessory mounting. It is not a substitute for a 4080 profile where stiffness is critical — the Ø28 form factor still limits section depth — but it removes most of the reasons to choose coated steel.

  • 6063-T5 aluminium, anodised finish
  • Ø28 mm form factor with T-slot accessory interface
  • Modular mechanical assembly — no welding
  • Suited to washdown, humid and ESD-sensitive areas
Explore Aluminum Lean Tubes →

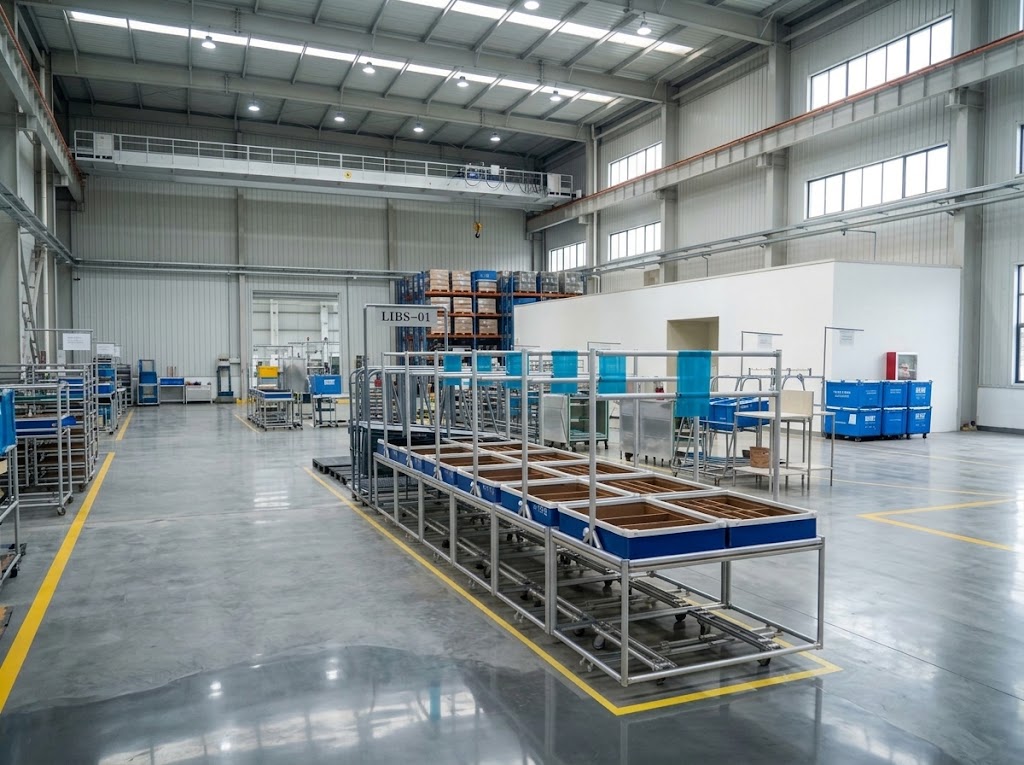

APAS Aluminum lean tube hybrid system with 28mm form factor and T-slot channels

Have a Span, a Load and a Deadline?

Send us the span, the load, the deflection limit you need to hold, and the environment. We will tell you which section actually meets it — including when the answer is a lean tube rather than a profile.

Request a Section Calculation →

10. Frequently Asked Questions

Is aluminium profile stronger than lean tube?

In bending stiffness, yes — and by a wide margin. A representative 4040 profile may have about 2.5× the EI of an Ø28 × 1.2 mm steel tube, while a representative 4080 may be substantially stiffer on its strong axis; actual ratios depend on the exact section properties. In tensile strength the steel tube is higher, but frame performance can be governed by deflection, strength, stability or joint capacity, depending on the design case.

Can I just use thicker lean tube to carry a heavier load?

Rarely worth it. Going from 1.2 mm to 2.0 mm wall gives about 1.5× stiffness. Adding a mid-span support can greatly reduce deflection, but the reduction depends on load distribution and support conditions; calculate the actual arrangement. Shorten the span or add a brace first.

What deflection limit should I design to?

L/200 is a common starting point for general industrial frames. Equipment frames, automation structures and anything carrying a robot or a linear axis should use L/300 to L/500, or tighter. Guarding and machine structures may also be governed by a specific machinery safety standard — check which applies to your application and jurisdiction.

Why do T-slot joints hold alignment better than tube clamps?

Tube clamps rely substantially on clamping friction. T-slot joints provide a different slot-based attachment geometry, but their performance still depends on correct hardware, bolt preload, joint design and loading. Neither system should be assumed immune to loosening or slip; follow manufacturer installation and inspection guidance.

Is 6063-T5 strong enough for a machine frame?

6063-T5 may be suitable for some light-to-medium frames, but suitability depends on the exact extrusion, certified material properties, span, loading, joint design and stability checks. Verify the complete design case.

Do aluminium frames need corrosion protection?

Anodising is a common finish for industrial aluminium profiles. Specify the required coating thickness and test method for the intended environment; the anodic layer can still be scratched, worn or chemically attacked. In aggressive washdown or chemical environments, confirm the class and consider sealed anodising.

Can I mix lean tube and aluminum profile in one structure?

Physically yes, with an adapter bracket — but do it deliberately. The two systems have very different stiffness, so load will concentrate in the stiffer members and the mixed joint becomes the weak link. Mixing works best for attachments (a tube bin rail on a profile frame) rather than for primary structure.

How much does thermal expansion matter?

Aluminium expands at roughly 23.4 × 10−6/K versus about 12 × 10−6/K for steel. Over a 3 m rail and a 30 K temperature swing that is about 2.1 mm versus 1.1 mm. It matters for long rails, precision datums, and frames that bridge between a heated and an unheated zone — allow sliding joints or expansion gaps in those cases.

Standards & data sources referenced

  1. GB/T 6892 — Wrought aluminium and aluminium alloy extruded profiles for general engineering (mechanical properties by alloy and temper)
  2. ASTM B221 / Aluminum Association standards — 6063-T5 and 6063-T6 extruded mechanical property minimums
  3. ISO 7599 / GB/T 5237.2 — Anodic oxidation coatings on aluminium; film thickness classes (e.g. AA10, AA15)
  4. Standard beam deflection formulae — simply supported and cantilever cases, elastic range

Engineering disclaimer: This guide supports preliminary selection and is not a substitute for project-specific engineering. Deflection values are calculated from elastic beam theory using representative section properties and do not account for joint slip, local buckling, impact or dynamic loading, frame racking, or manufacturing tolerance. Section properties vary between manufacturers and between extrusions sold under the same nominal designation. For load-bearing, overhead, personnel-supporting or safety-critical structures, obtain a qualification by a competent engineer against the applicable standards and the actual product data.

Industrial safety perimeter fence around a robotic work cell for OSHA machine guarding
Previous
OSHA Machine Guarding: How to Select the Right Safety Perimeter Fencing
Read More
We use Cookie to improve your online experience. By continuing browsing this website, we assume you agree our use of Cookie.
