5 Common Machine Guarding Mistakes That Could Cost Your Factory Thousands in Fines

Compliance with local and international factory safety regulations is a top priority for plant managers, HSE officers, and production directors alike. However, walking through a modern manufacturing facility often reveals a harsh reality: many factories mistake having a fence for being compliant.

A substandard or poorly positioned Industrial Safety Fence does not just risk worker safety—it invites catastrophic financial consequences. From OSHA penalties in the US under 29 CFR 1910.217 Machine Guarding Standard to structural non-compliance fines in the EU under Machinery Directive 2006/42/EC, avoiding these pitfalls is critical for every production site.

At APAS, as an experienced machine guarding system manufacturer, we have analyzed hundreds of production lines across North America and Europe. Below are the 5 most common and critical machine guarding mistakes that could cost your factory thousands in regulatory fines, plus actionable guidance on how to avoid factory safety fines through certified engineering solutions.

1. Miscalculating the "Safe Distance" Rule (EN ISO 13857)

The most frequent violation identified during third-party safety audits is ignoring the correlation between mesh aperture size and minimum separation distance from machine hazards. Many site supervisors mistakenly believe any physical barrier automatically meets compliance requirements.

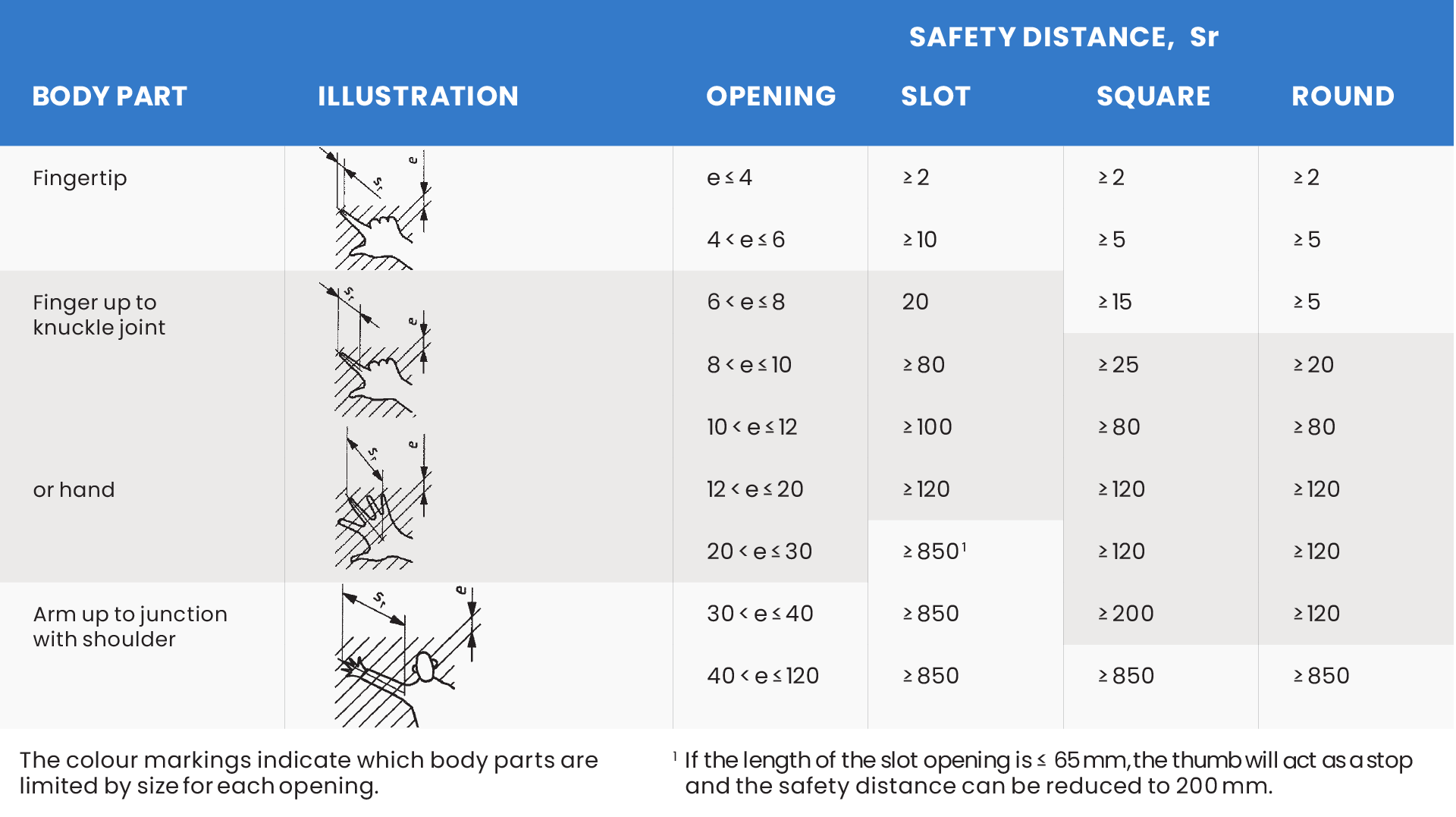

Global machine guarding benchmarks are defined in EN ISO 13857:2019 (Safety of machinery — Safety distances to prevent hazard zones being reached by upper and lower limbs). This standard enforces strict separation rules based on wire mesh opening dimensions to block hand, arm and full-body access to dangerous moving components.

2. Underestimating Impact Strength for Robot Cells

With automated robotic workcells becoming standard in modern manufacturing, generic warehouse perimeter barriers no longer deliver adequate hazard containment. Designing a certified Robot Fencing or full Robot Safety Enclosure requires rigorous dynamic impact resistance testing.

Many facilities cut costs by installing lightweight, low-grade generic Industrial Steel Fencing built only for inventory zoning. If a robotic arm malfunctions or heavy workpieces eject from high-speed conveyors, these thin barriers collapse on impact, creating severe safety liabilities and compliance violations.

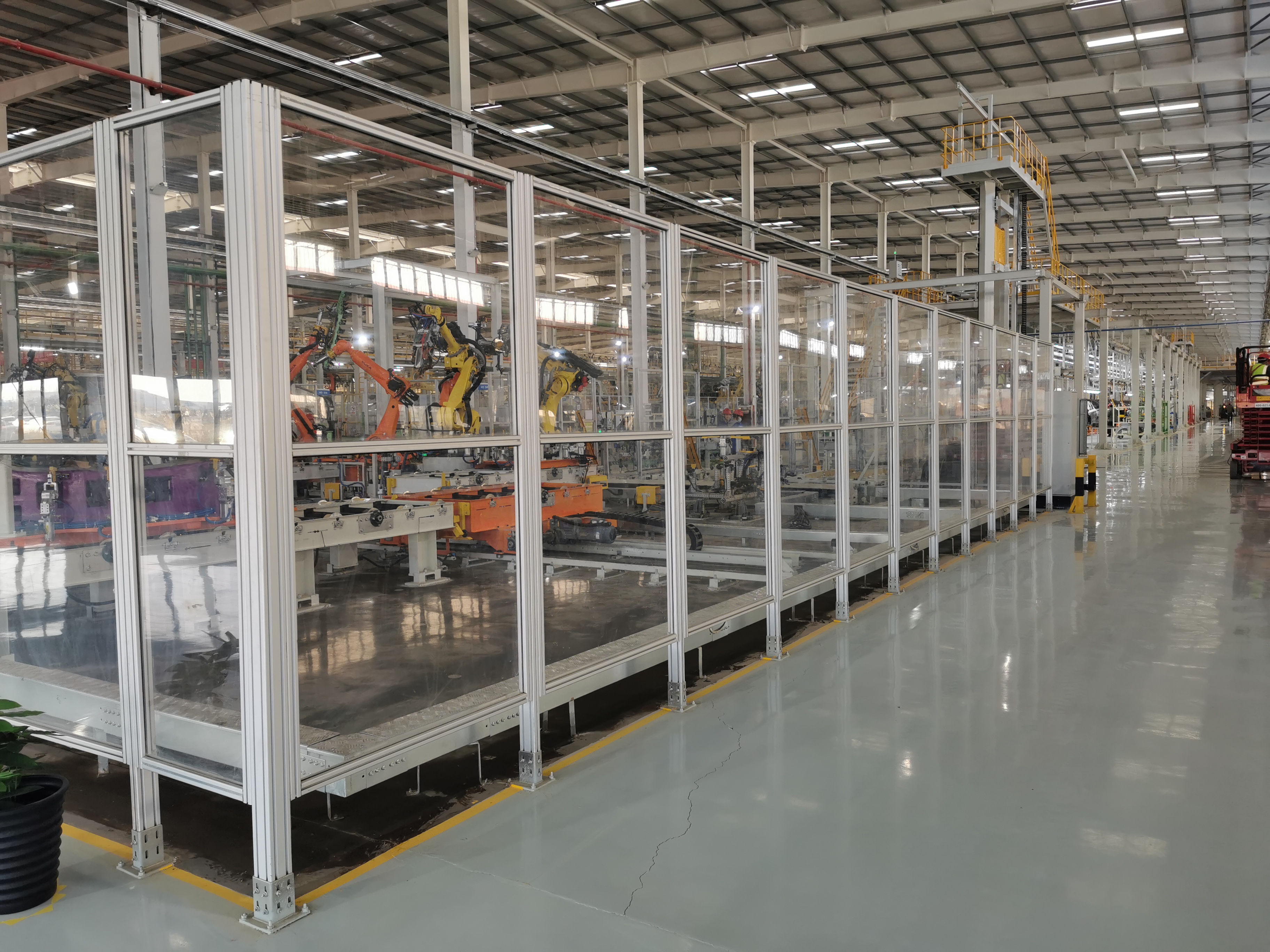

To pass OSHA and CE safety audits, all high-risk automation zones require verified Impact-resistant safety barrier systems. While heavy-gauge steel mesh partitions remain an option, global smart factories increasingly deploy modular aluminum extrusion fencing—engineered to absorb kinetic force without permanent deformation and fully retain CE certification post-installation.

3. Ignoring Mandatory Safety Fence Height & Maximum Floor Clearance Limits

A protective safety barrier loses all compliance validity if staff can reach over the top or crawl underneath panels. Undersized fencing and excessive bottom gaps are among the most commonly cited non-compliance issues during regulatory inspections.

When deploying a complete Safety Fencing System, all installations must adhere to unified ISO, OSHA and CE dimensional guidelines:

• Low-risk general production zones require a minimum protective height of 1,400 mm. High-risk automated robot cells, stamping presses and fast-moving conveyor lines demand a minimum height of 2,000 mm to 2,200 mm to eliminate overreach hazards.
• Floor Clearance Regulation: The gap between the base of fence panels and factory concrete flooring cannot exceed 150 mm to block under-barrier access to dangerous machinery.

Any facility exporting finished machinery to the EU or operating cross-border production sites must install fully CE-marked safety fence systems that satisfy both height and floor gap dimensional rules without exception.

4. Poor Visibility & Unregulated Blind Spot Hazards

Physical containment is non-negotiable, but unobstructed visibility is an equally critical component of compliant factory safety. Some facilities install fully solid metal enclosures around machinery to contain flying debris, yet fully opaque barriers create dangerous blind spots for forklift operators, maintenance technicians and site supervisors.

If a safety manager cannot visually identify an injured worker inside a Warehouse perimeter fencing restricted zone, or maintenance staff cannot confirm robotic arms have fully powered down before entry, the enclosure design violates core hazard awareness rules outlined in OSHA’s workplace visibility guidelines.

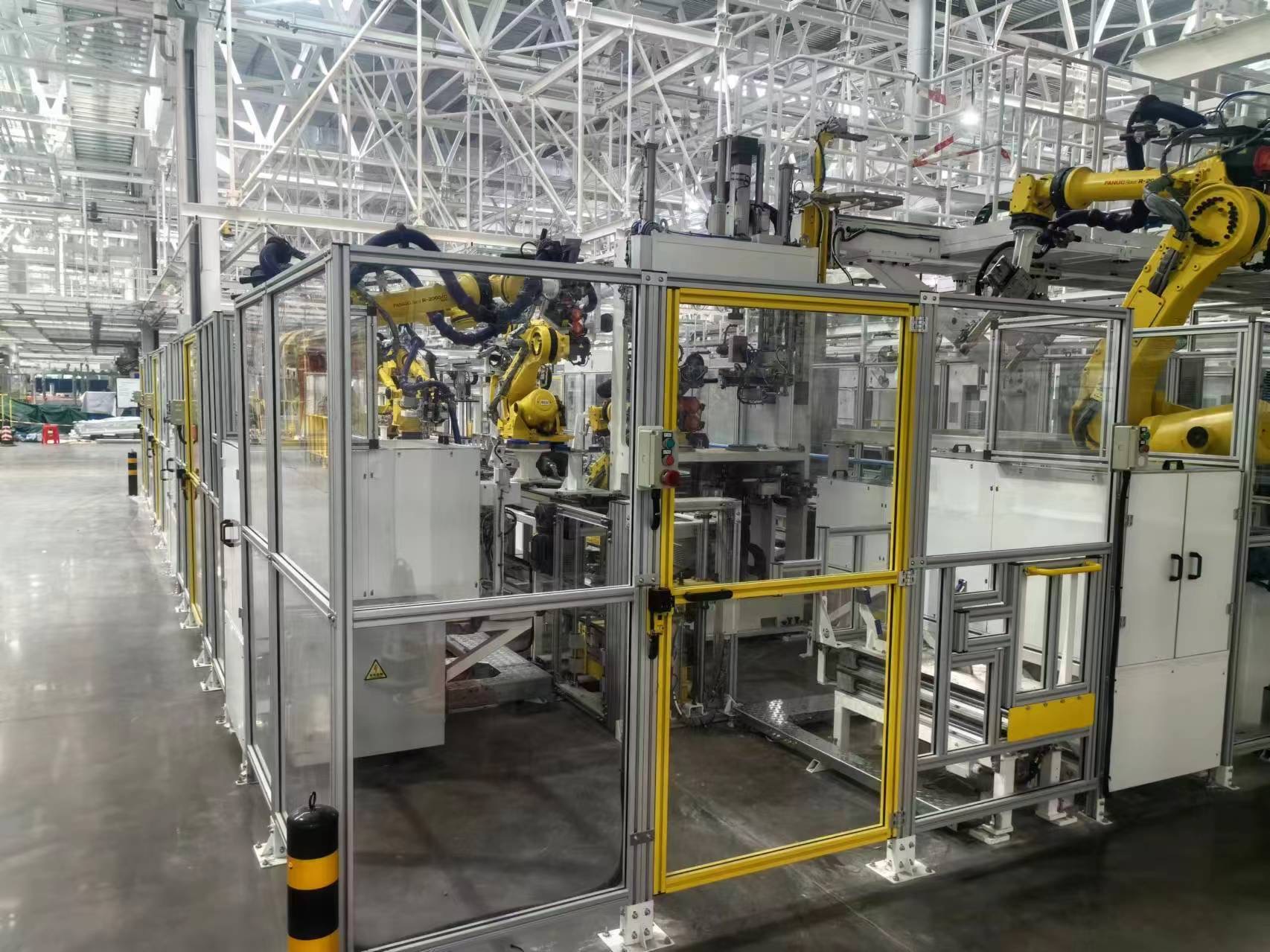

Premium certified industrial safety enclosures combine high-visibility hazard color coding (black & yellow warning branding) with impact-resistant transparent polycarbonate panels. This design delivers full physical protection while maintaining unbroken lines of sight for all on-site personnel.

5. Dangerous On-Site DIY Modifications & Permanent Rigid Welding

Production layouts evolve constantly with new equipment integration, line expansions and process adjustments. A pervasive compliance error occurs when plant maintenance teams cut, patch and permanently weld existing safety fencing to adapt to updated machinery layouts.

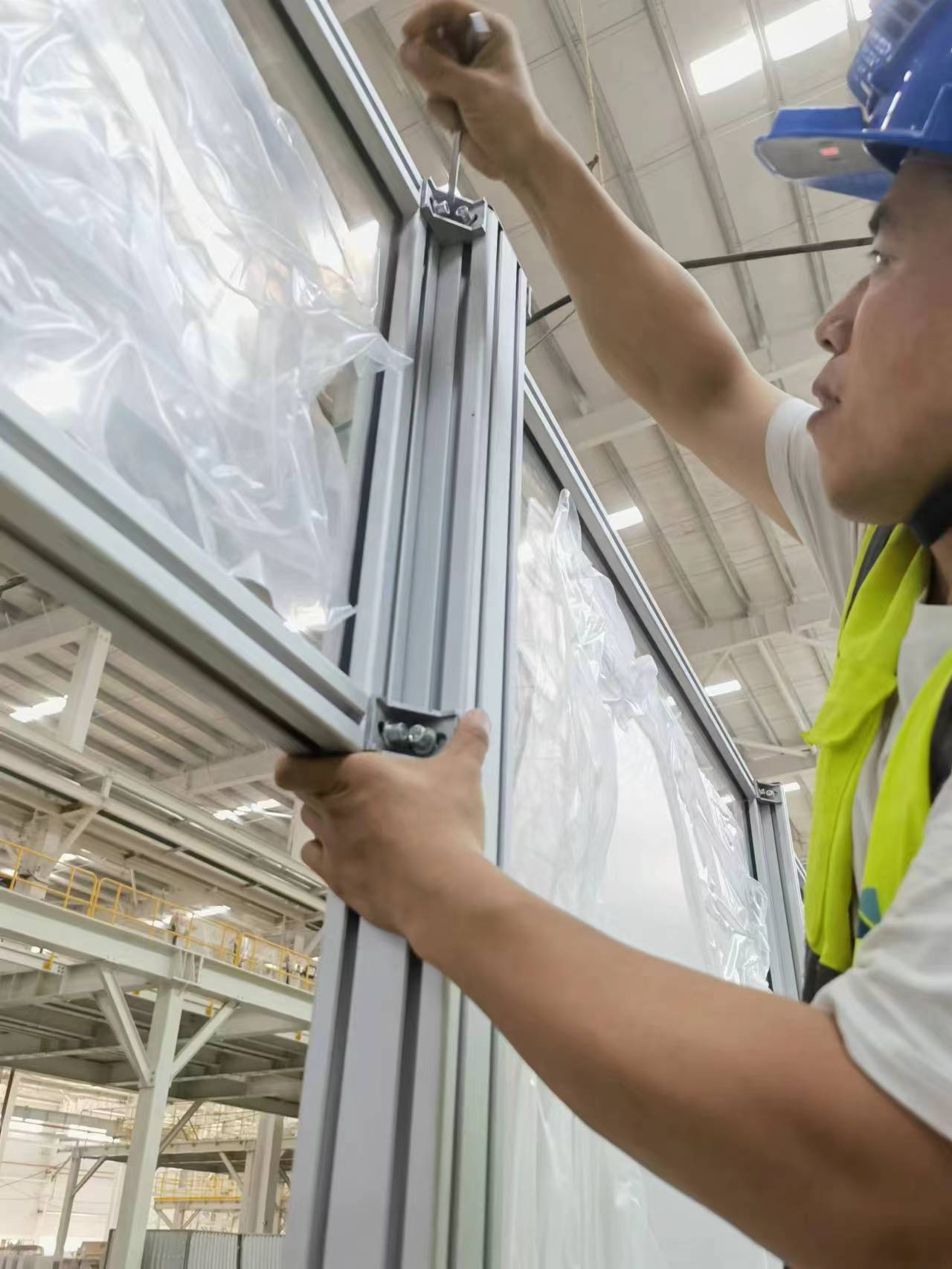

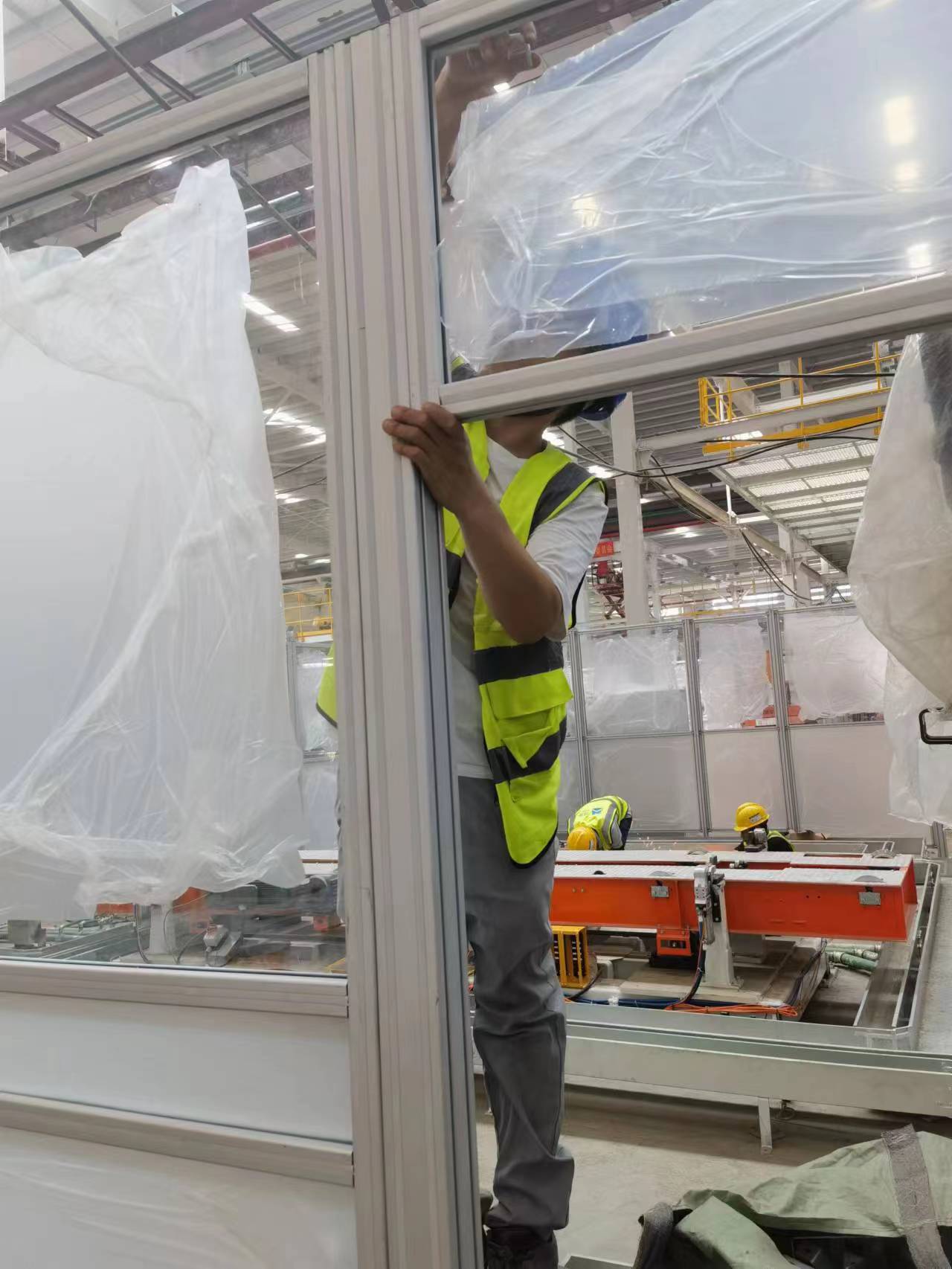

This compliance risk is why top-tier manufacturing facilities standardize Aluminum Profile Machine Guarding systems. Heavy-duty Aluminum Extrusion Enclosure solutions feature fully modular assembly—adjust, extend or reconfigure layouts with standard bolt fasteners, no welding, no repainting, and zero loss of CE/ISO safety certification.
